PolskiProfile Gardina XL
Description

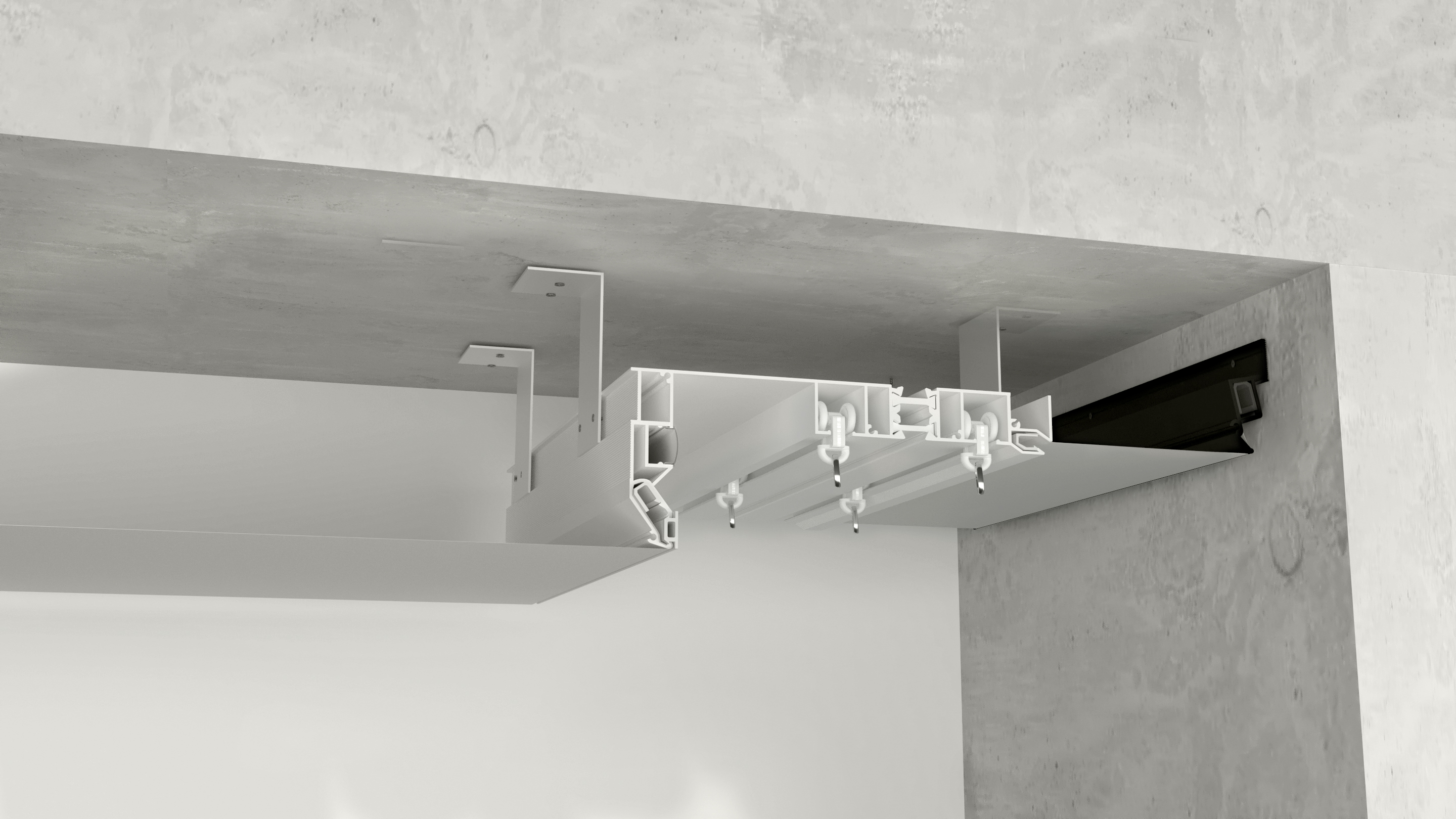

Gardina XL profile is the widest premium option for forming an L-shaped niche for curtains with a lowering in the level of the main ceiling to the additional. The profile forms a niche of 5.5 cm in which there are grooves for runners.

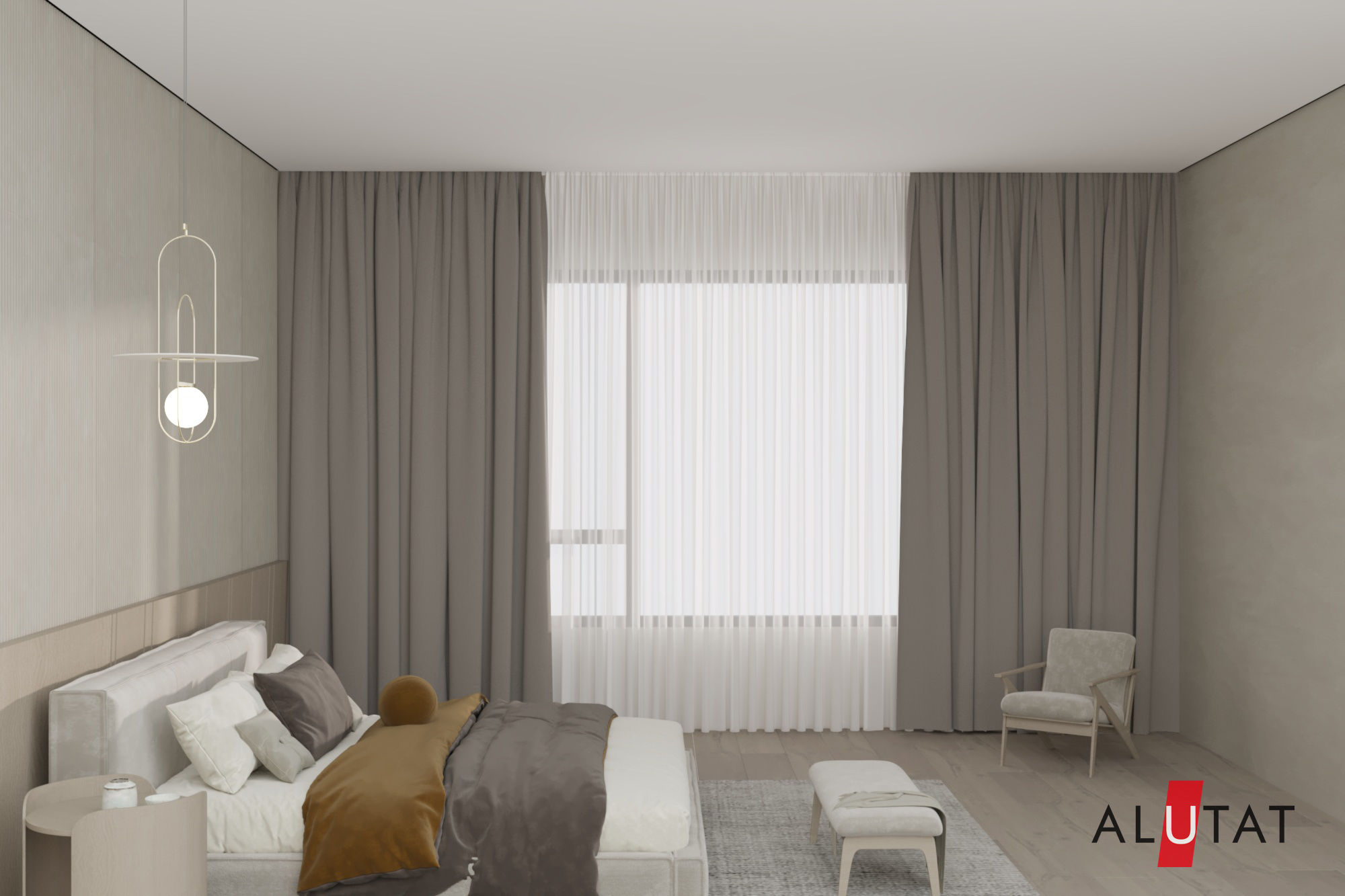

The profile is the widest L-shaped niche for curtains, which makes it possible to install thick curtains from all types of fabrics. Gardina XL profile is mounted both from wall to wall and with the formation of angles of 90 and 45 degrees.
The set includes special high-speed runners Runner Big for the profile, which facilitates easy movement of the curtains.
360° (twist)

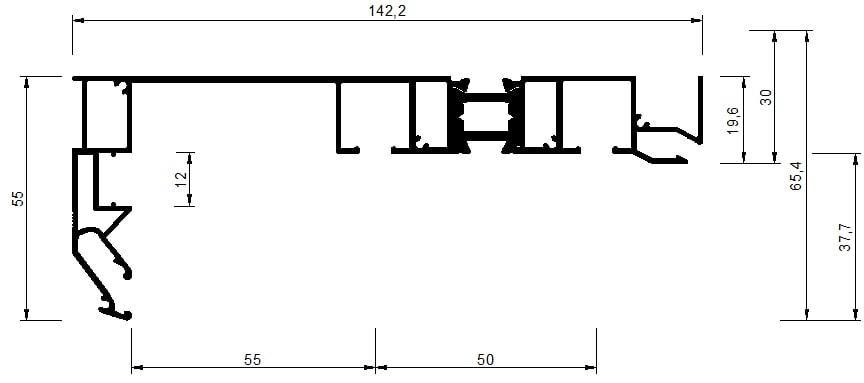

Drawing
Characteristics
Color: white, black
Material: aluminum
Length, m: 2.5/3.2
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
a side groove for LED strip installation
2 grooves for runners
a groove for a bandage tape
5 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 1 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed with a light-scattering diffuser LED 12.
Connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
Runners:
The set includes special runners Runner Big. The number is 13 pcs./p.m. in one track.
