PolskiProfile DL 40D
Description

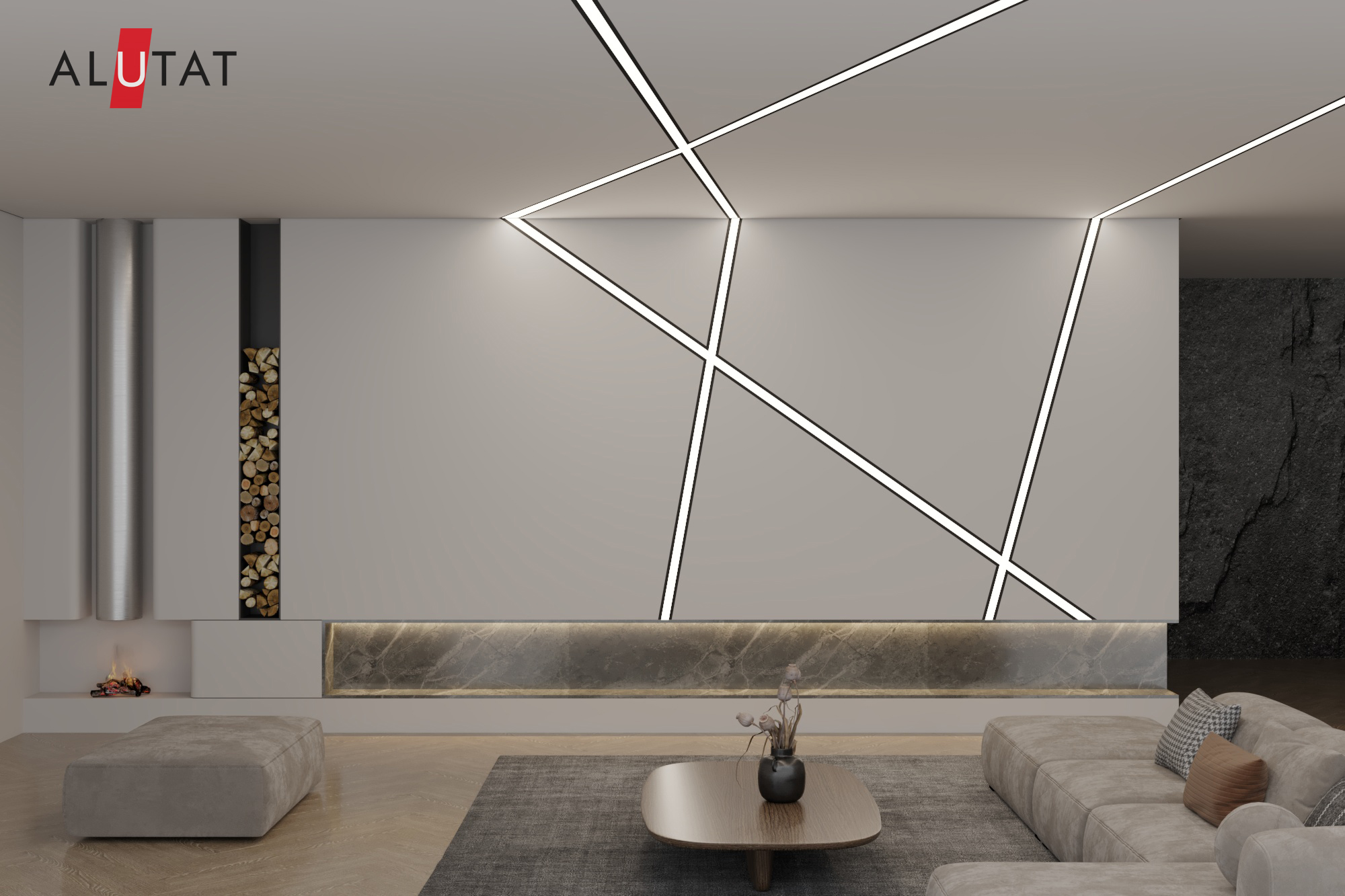

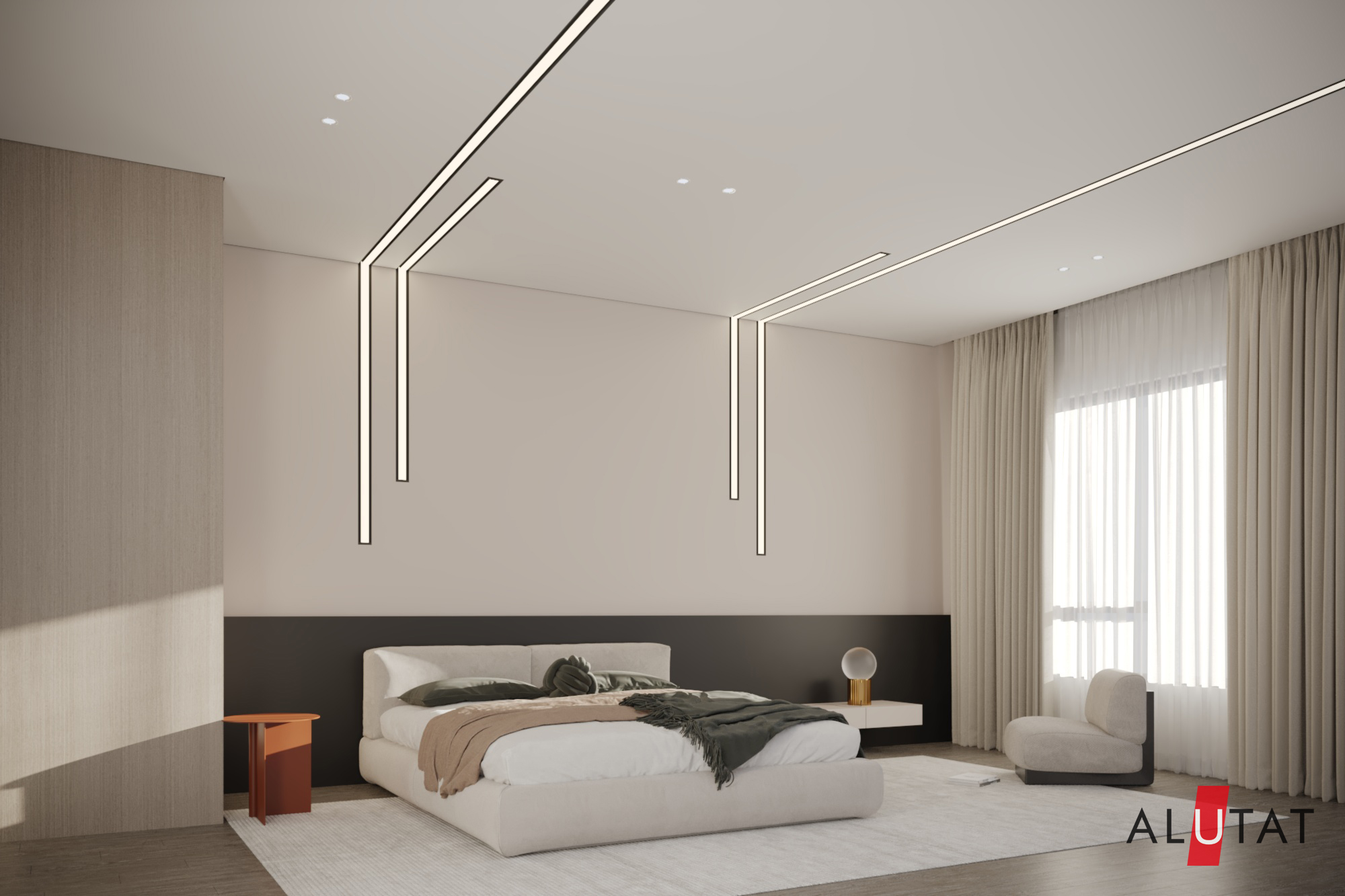

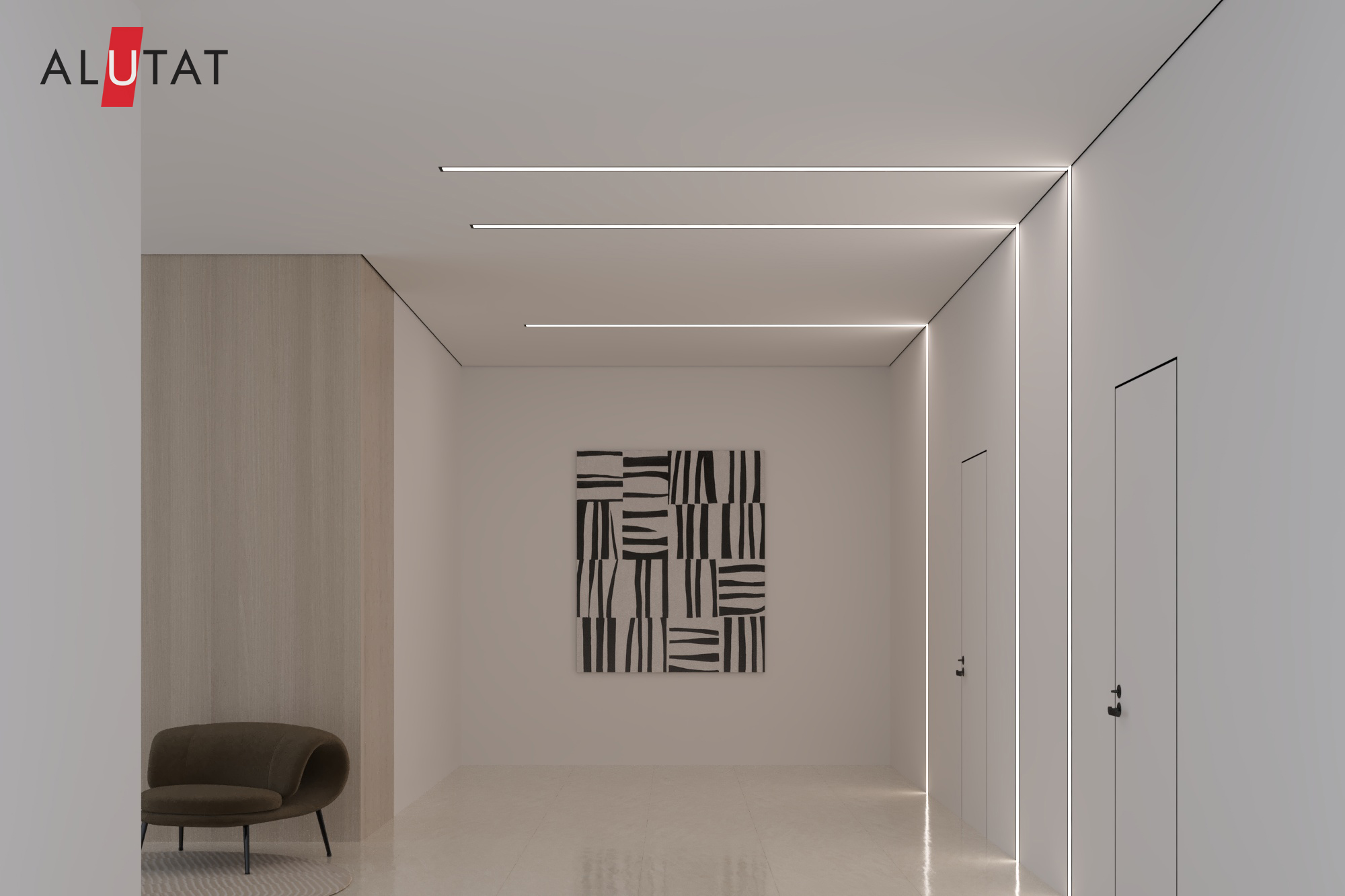

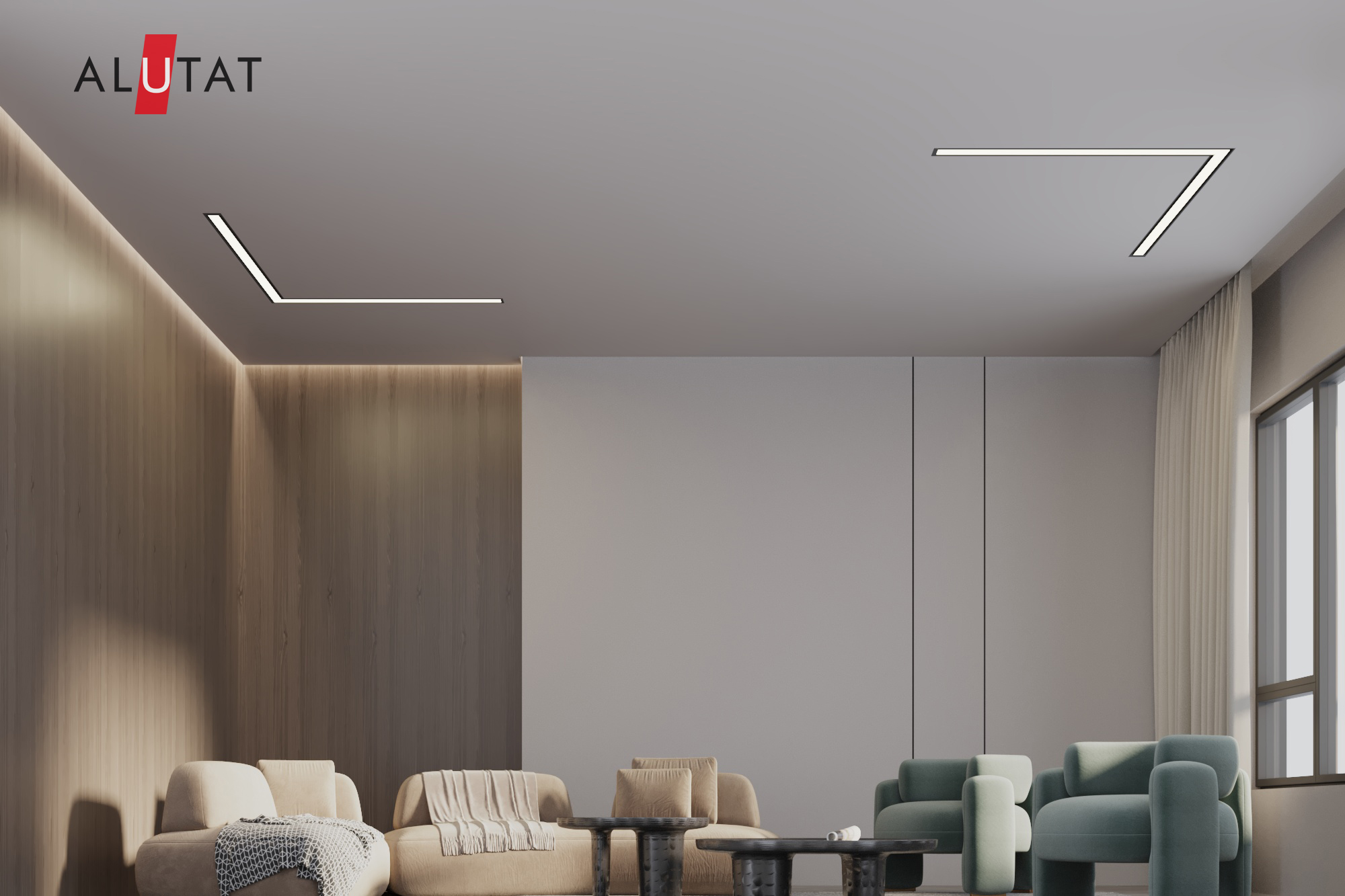

DL 40D is a unique light painted profile with a line width of 40 mm.
The profile creates a light line with recessed shadow joints on both sides. The polycarbonate diffuser is installed flush with the ceiling. The dimensions of the shadow seams are equal to the dimensions of the DS separaor shadow profile, which makes it possible to create various interior solutions. DL 40D is recommended for use with ALUTAT shadow solutions. A polycarbonate LED 40 diffuser is used.
360° (twist)

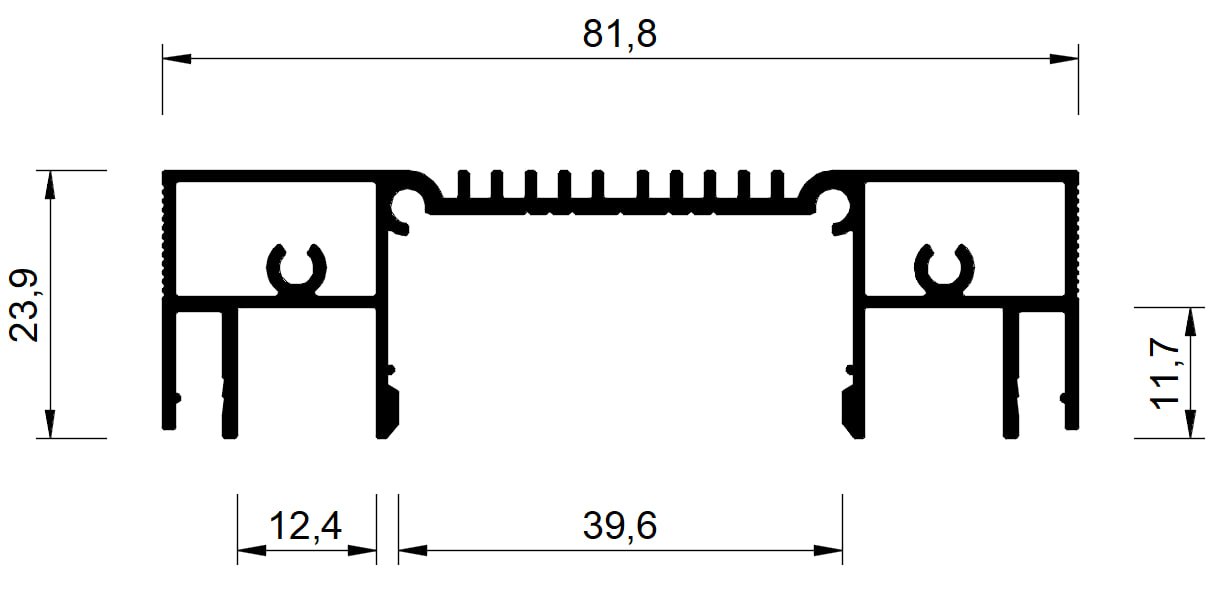

Drawing
Characteristics
Color: black
Material: aluminum
Length, m: 2.0
Fastening the canvas: damper
Constructive
2 grooves for damper
a groove for LED strip installation
4 connecting wire grooves

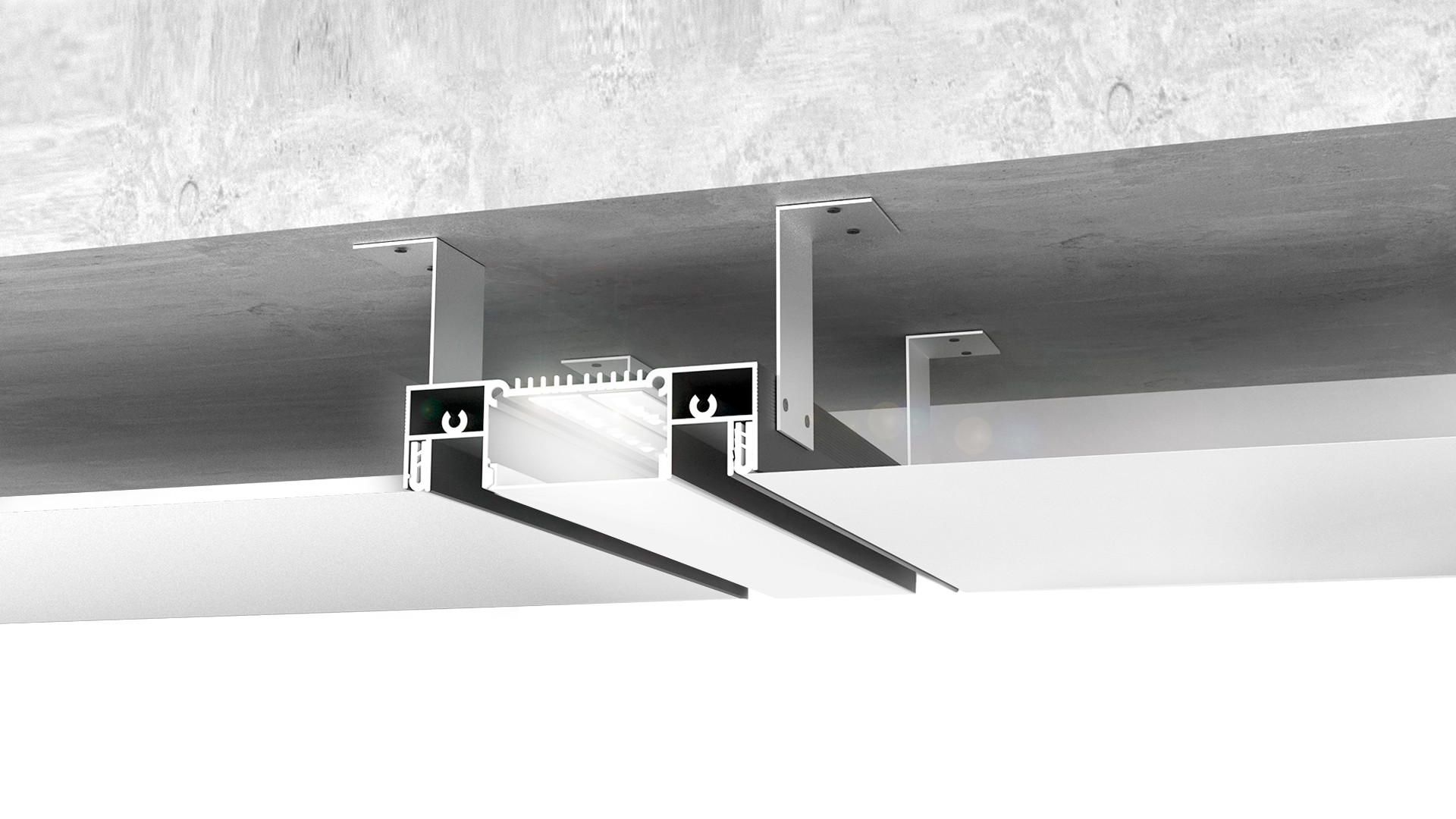

Installation
Fastening:
The fastening step is up to 0.8 m.
Canvas installation:
The canvas is installed with a spatula for a harpoon-free system of mounting a stretch ceiling.
LED strip:
It is closed with a polycarbonate diffuser LED 40, which is installed in the profile
Connection:
Bandage tape 15 mm, wire 3.0 mm.
