PolskiProfile UDC (Ukrainian Dark Ceiling)
Description

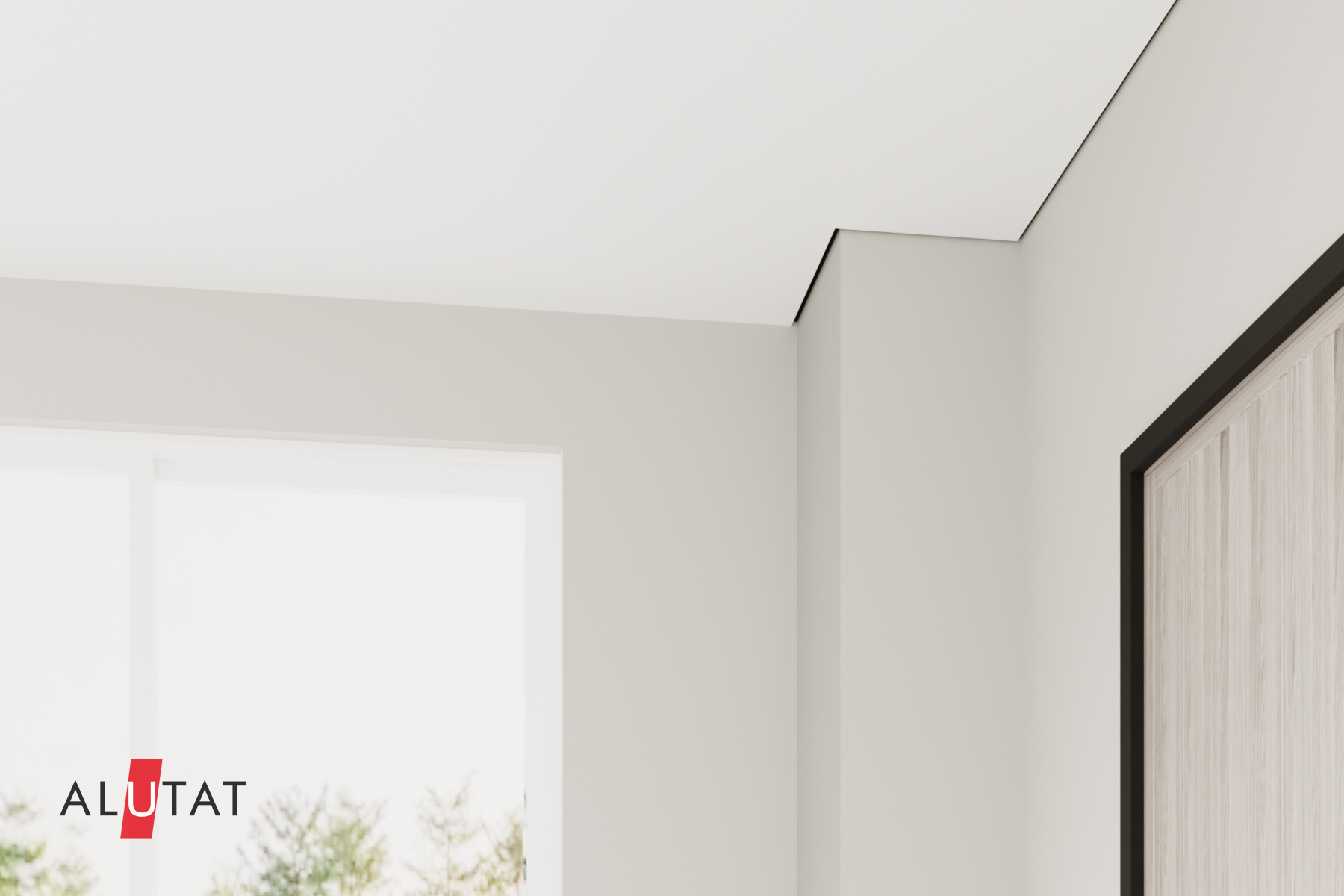

UDC is a ceiling option of UD shadow profile for forming a shadow connection in the stretch ceiling to the horizontal surface.
The UDC is a partner of UD profile with a harpoon groove placed at a minimum angle, which allows installation with a standard trowel.
The location of the connecting groove at the bottom of the profile enables a clear joining of the "lip".
360° (twist)

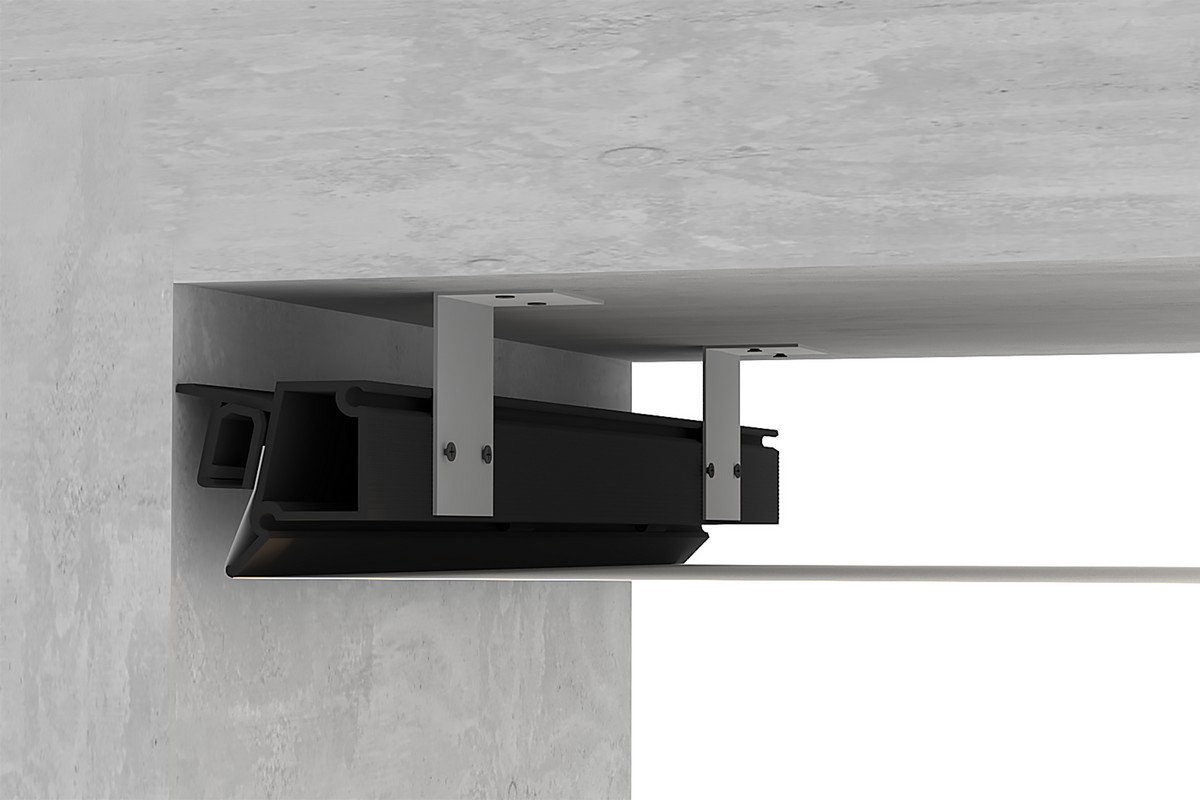

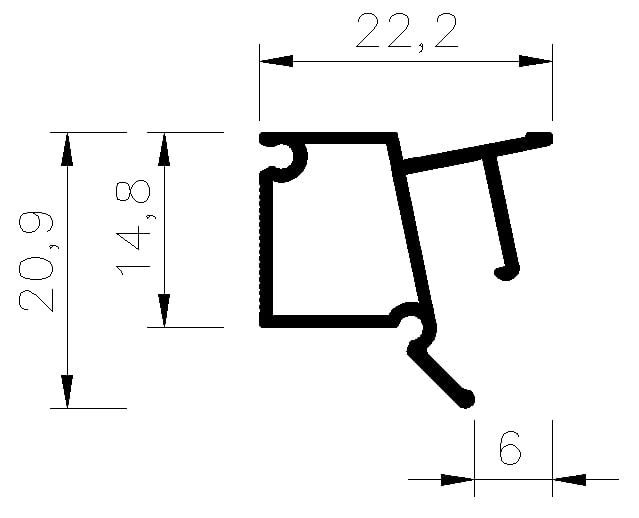

Drawing
Characteristics
Color: black
Material: aluminum
Length, m: 2.0
Fastening the canvas: harpoon
Constructive
groove for a harpoon
2 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.18 m.
Filling the canvas:
The canvas is filled with a standard spatula at a minimum angle.
Connection:
Wire 1.8 mm.
Dismantling the canvas:
Difficult, but possible without damage.
