PolskiProfile E-Gardina
Description

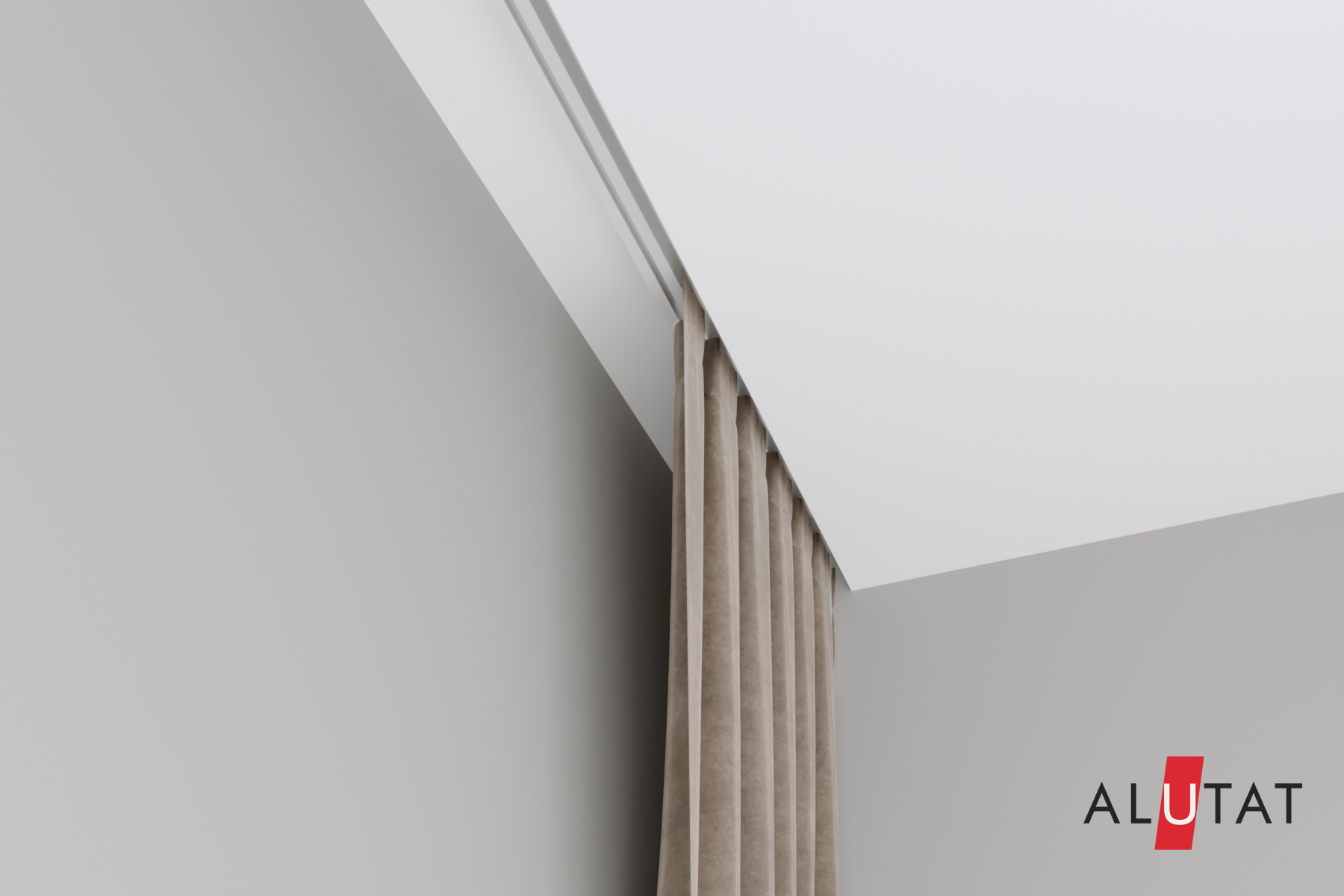

E-Gardina profile is the best option for forming a niche for curtains with a decrease in the level of the main ceiling in relation to the additional.
The profile forms a niche of 7.6 cm in which there are grooves for runners.

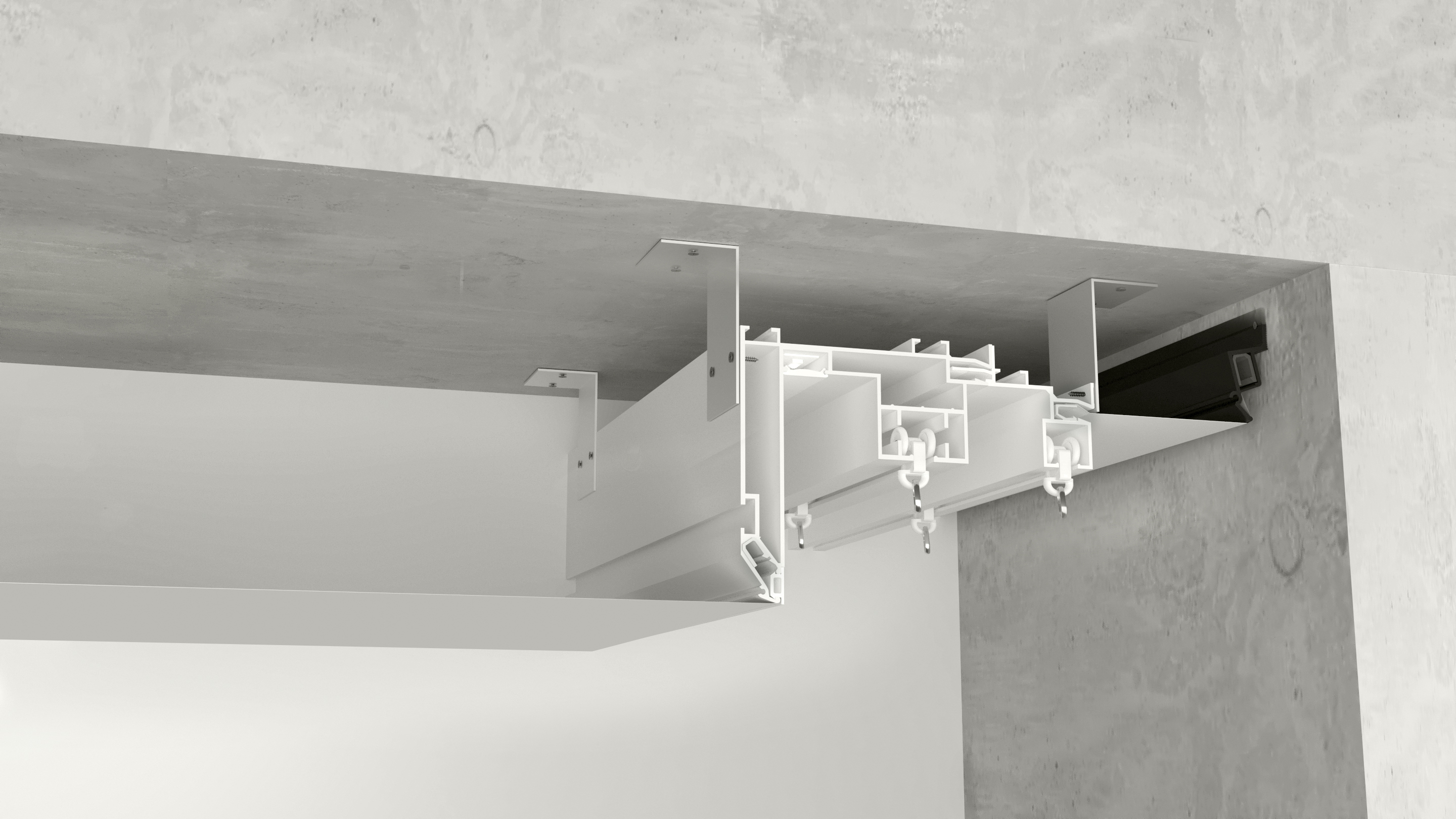

The set of profiles is a multifunctional version of a niche for curtains in stretch ceilings, which can create both one and two grooves for runners with the function of an electric drive in the first groove.
360° (twist)
E-Gardina

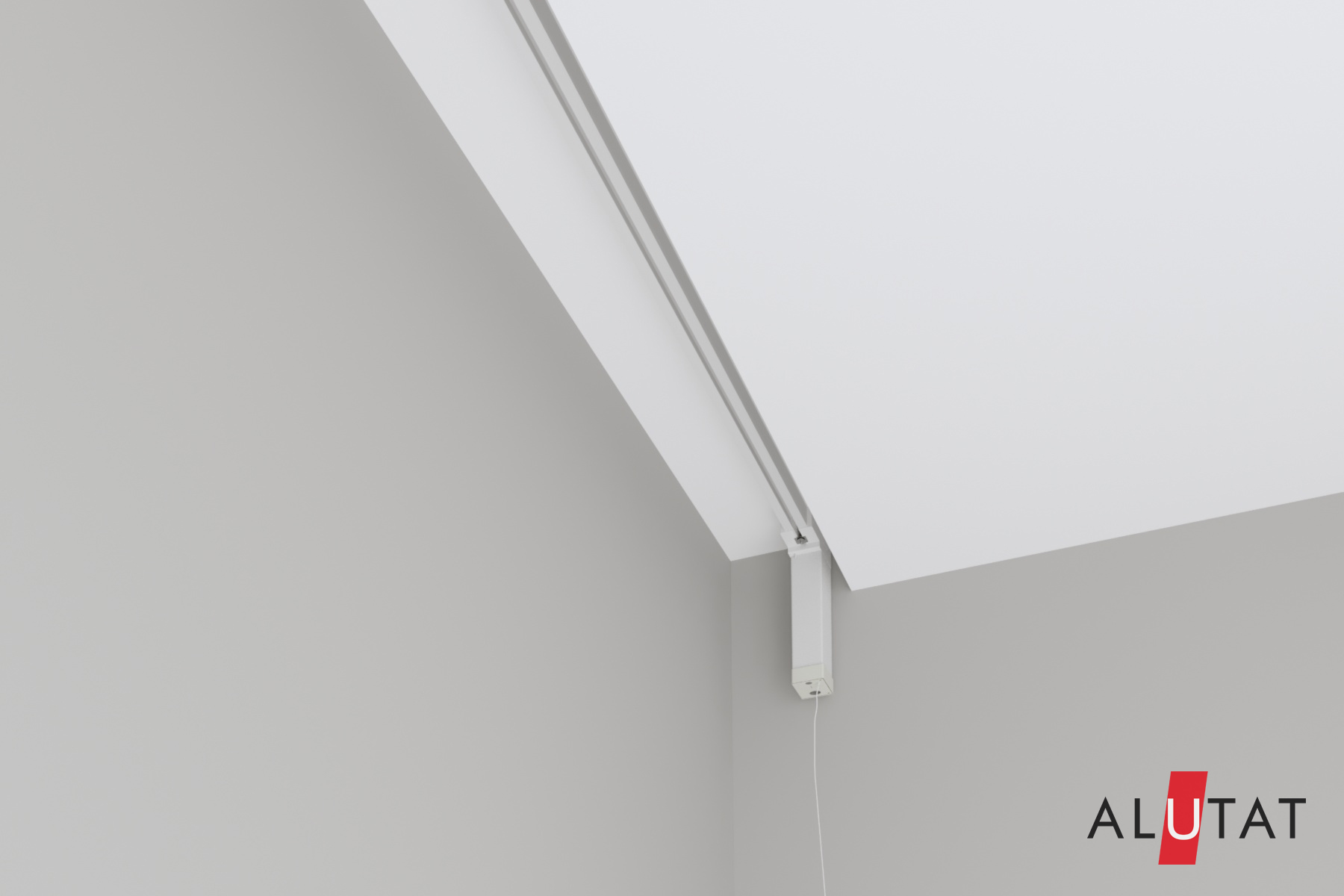

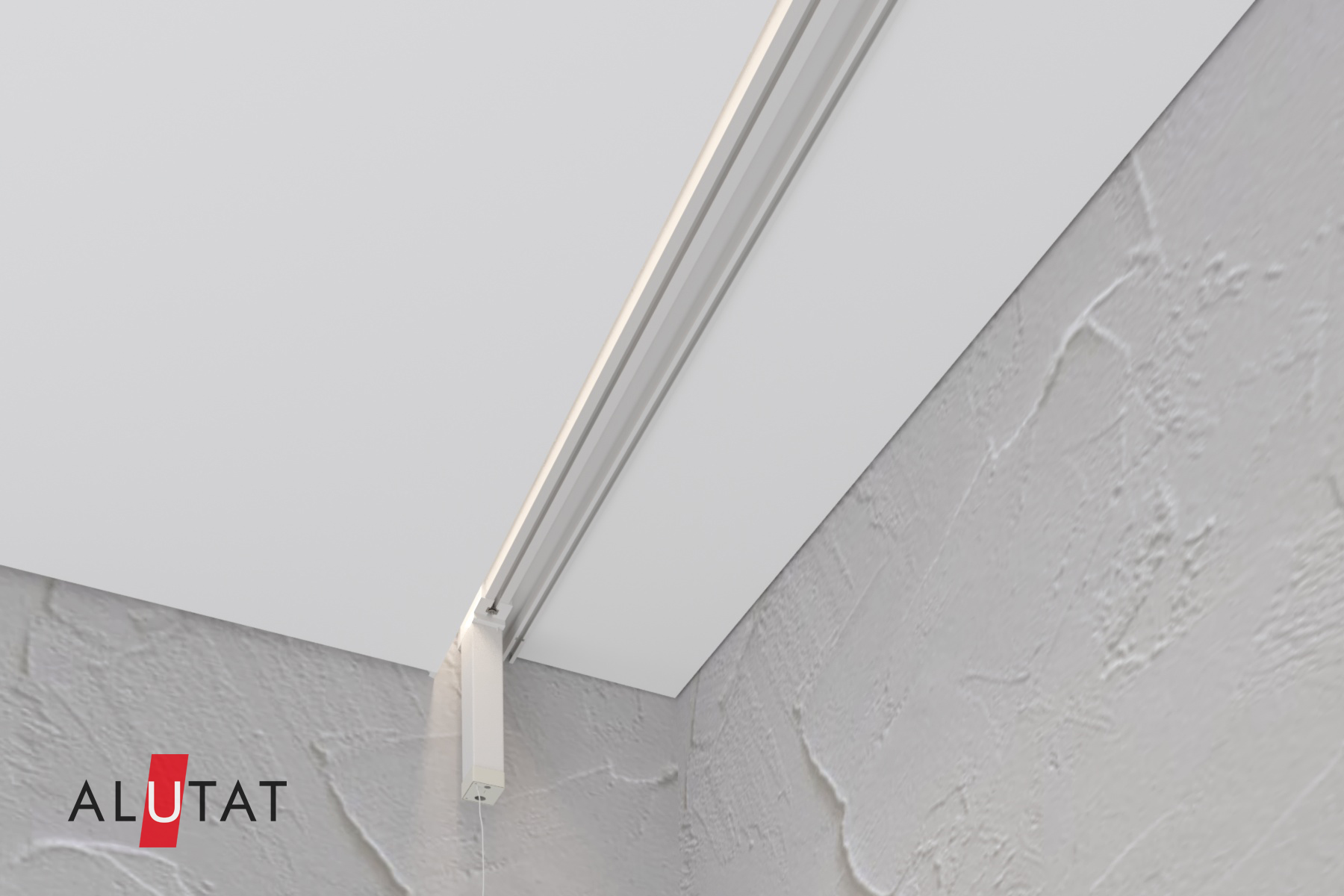

E-Gardina is a basic profile for forming a niche for curtains in a stretch ceiling, in which an electric drive is mounted.
Drawing
Characteristics
Color: white
Material: aluminum
Length, m: 3.2
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
a groove for runners
a groove for LED strip installation
3 grooves for attaching a strip with screws
a connecting wire groove
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.75 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed with a light-scattering tape S12.
Connection:
Strip with screws, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
Runners:
The set includes special runners Runner Big. The number is 13 pcs./p.m. in one track.
E-Gardina Double
E-Gardina Double is the second part of the E-Gardina profile, which creates a second groove for runners. The runners move without an electric drive.
Drawing
Characteristics
Color: white
Material: aluminum
Length, m: 3.35
Fastening the canvas: harpoon
Constructive
a groove for a harpoon
a plug for the entrance to the groove for the harpoon in E-Gardina profile
a groove for runners
a groove for attaching a strip with screws
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.75 m.
E-Gardina Double connection:
The profile is connected to E-Gardina using clips and a plug.
Filling the canvas:
The canvas is filled with a standard spatula.
Dismantling the canvas:
Possible without damage.
Runners:
The set includes special runners Runner Big. The number is 13 pcs./p.m. in one track.
Clips:
The profile kit includes clips.
Drawing E-Gardina and E-Gardina Double
