Profile SK 4.0

Description

Profile SK 4.0 is a modernized version of SK 3.0, which differs by widening the niche, increasing the distance between the beginning of the niche and the first groove, and between the first and second groove for runners.

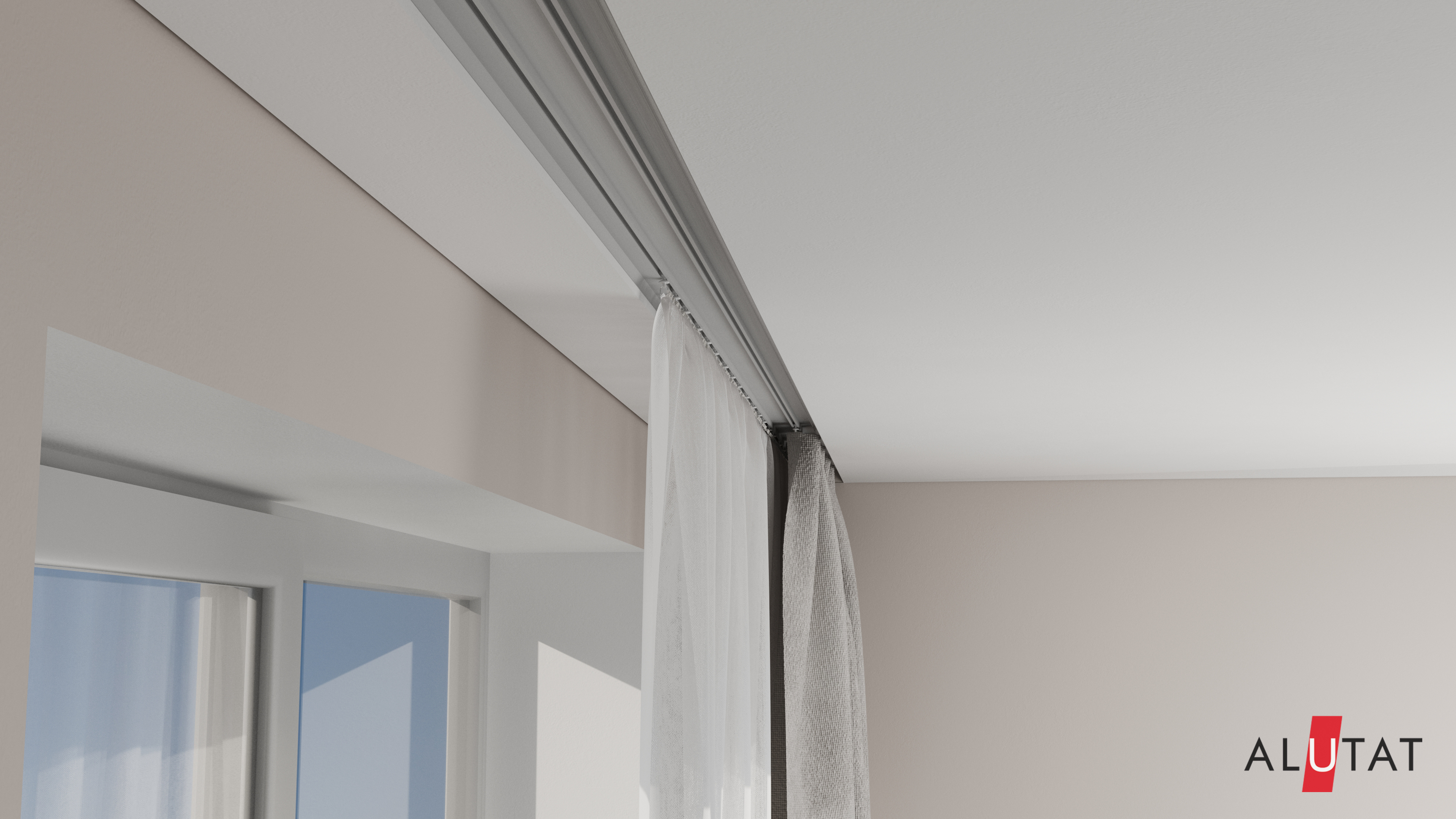

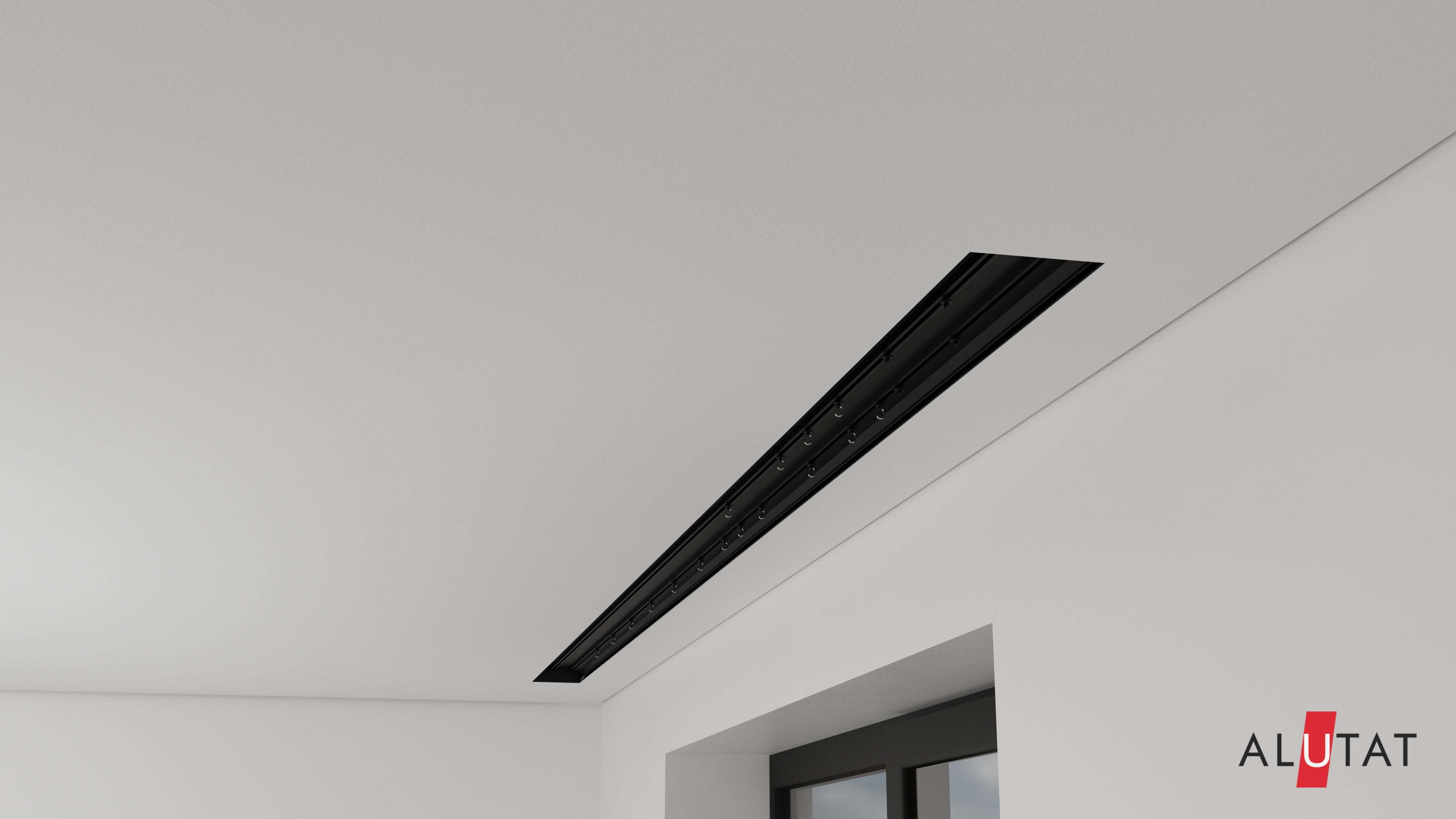

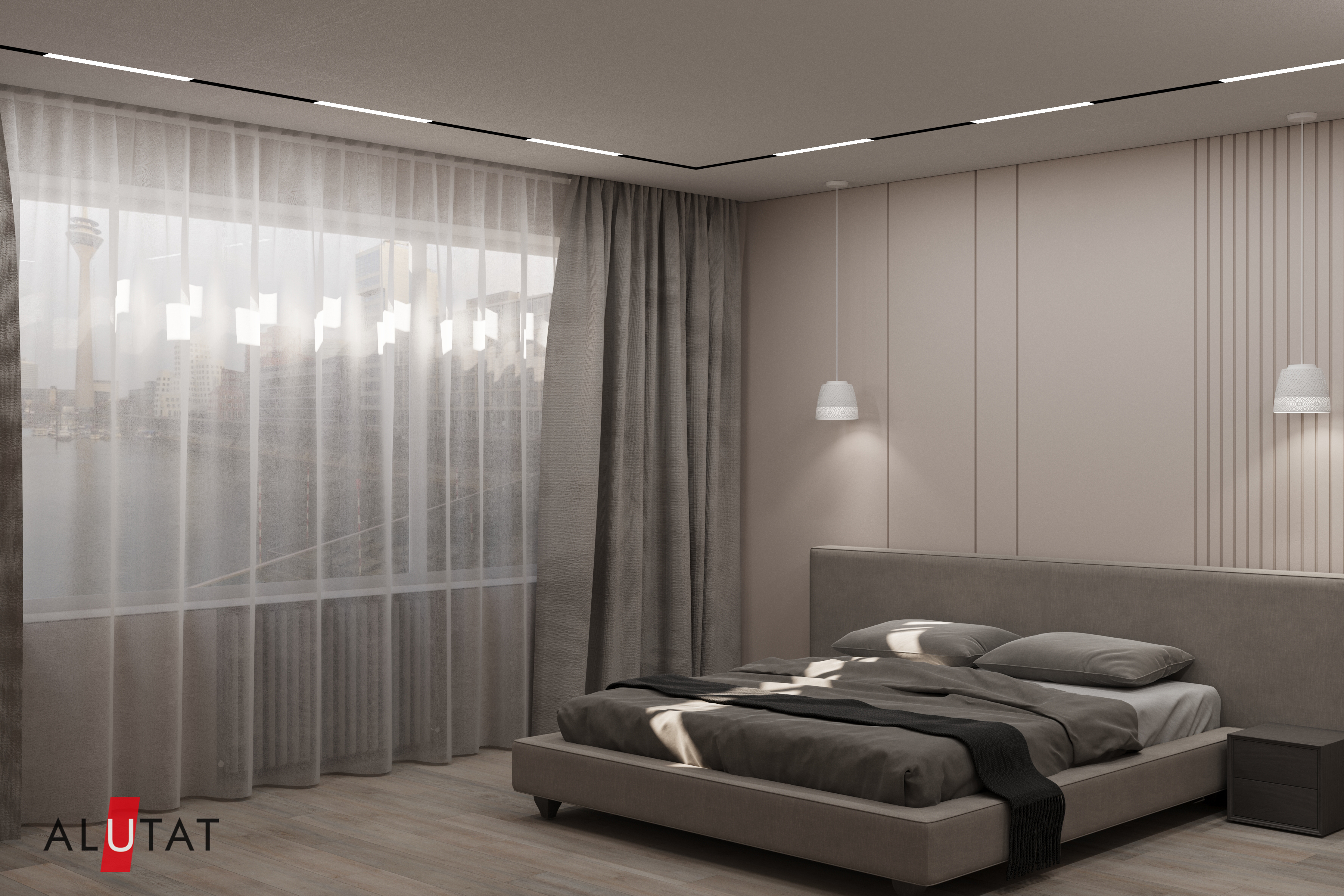

The profile is the widest U-shaped niche for curtains with a minimum lowering of the stretch ceiling from the main ceiling of 4 cm. Runner Small runners are included with the profile.

This profile is mounted both from wall to wall and with the formation of one or more breaks and corners.

360° (twist)

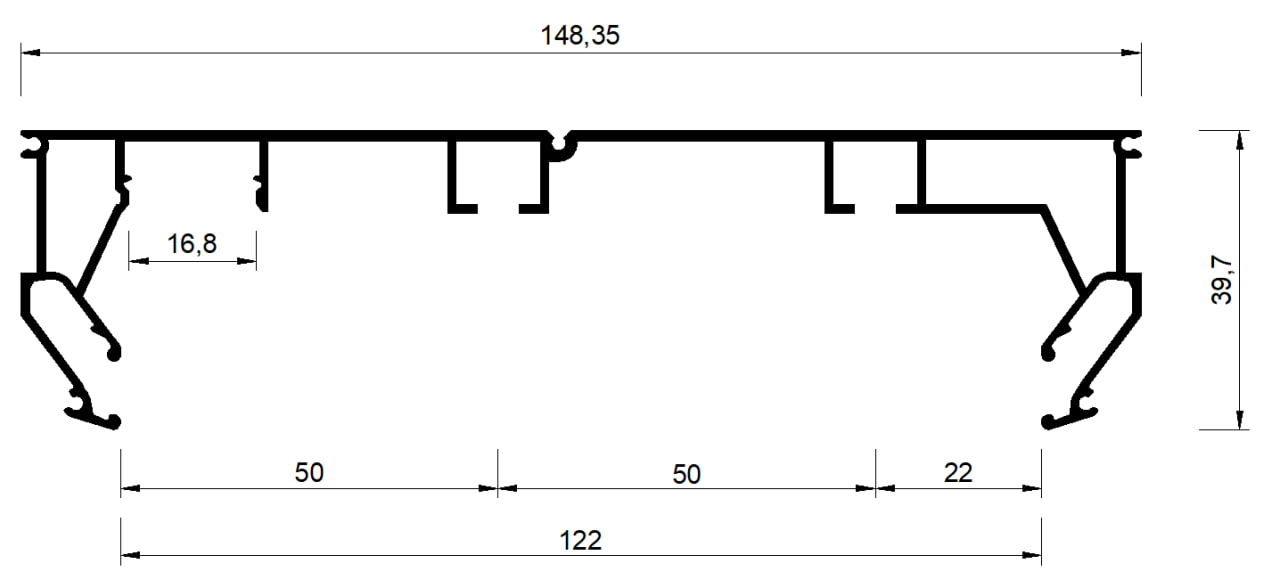

Drawing

Characteristics

Color: white, black

Material: aluminum

Length, m: 2,0/2,5/3,2/3,6

Fastening the canvas: harpoon

Constructive

2 grooves for a harpoon

a groove for the installation of the LED strip

2 grooves for runners

2 grooves for a bandage tape

4 connecting wire grooves

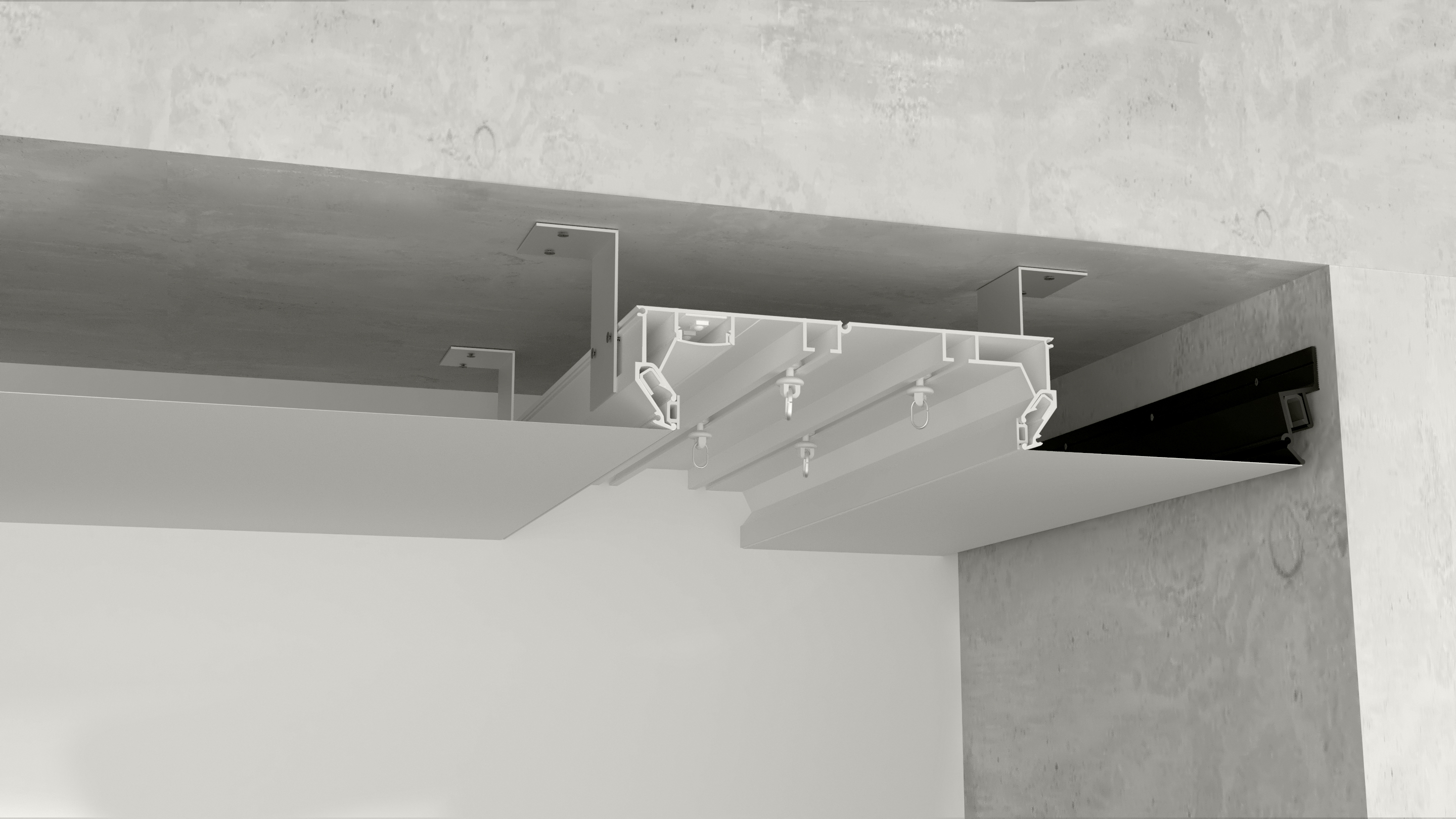

Installation

Fastening:

Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 1 m.

Filling the canvas:

The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.

LED strip:

It is closed with a light-scattering diffuser LED 17.

Connection:

Bandage tape 15 mm, wire 1.8 mm.

Dismantling the canvas:

Possible without damage.

Runners:

The set includes special runners Runner Small. The number is 13 pcs./p.m. in one track.
