Profile SK 2XL

Description

SK 2XL is a modernized version of SK XL with two grooves for runners, which differs by expanding the niche, increasing the distance between the beginning of the niche and the first groove, between the first and second runner grooves, increasing the height of the niche.

SK 2XL profile is the widest premium curtain solution.

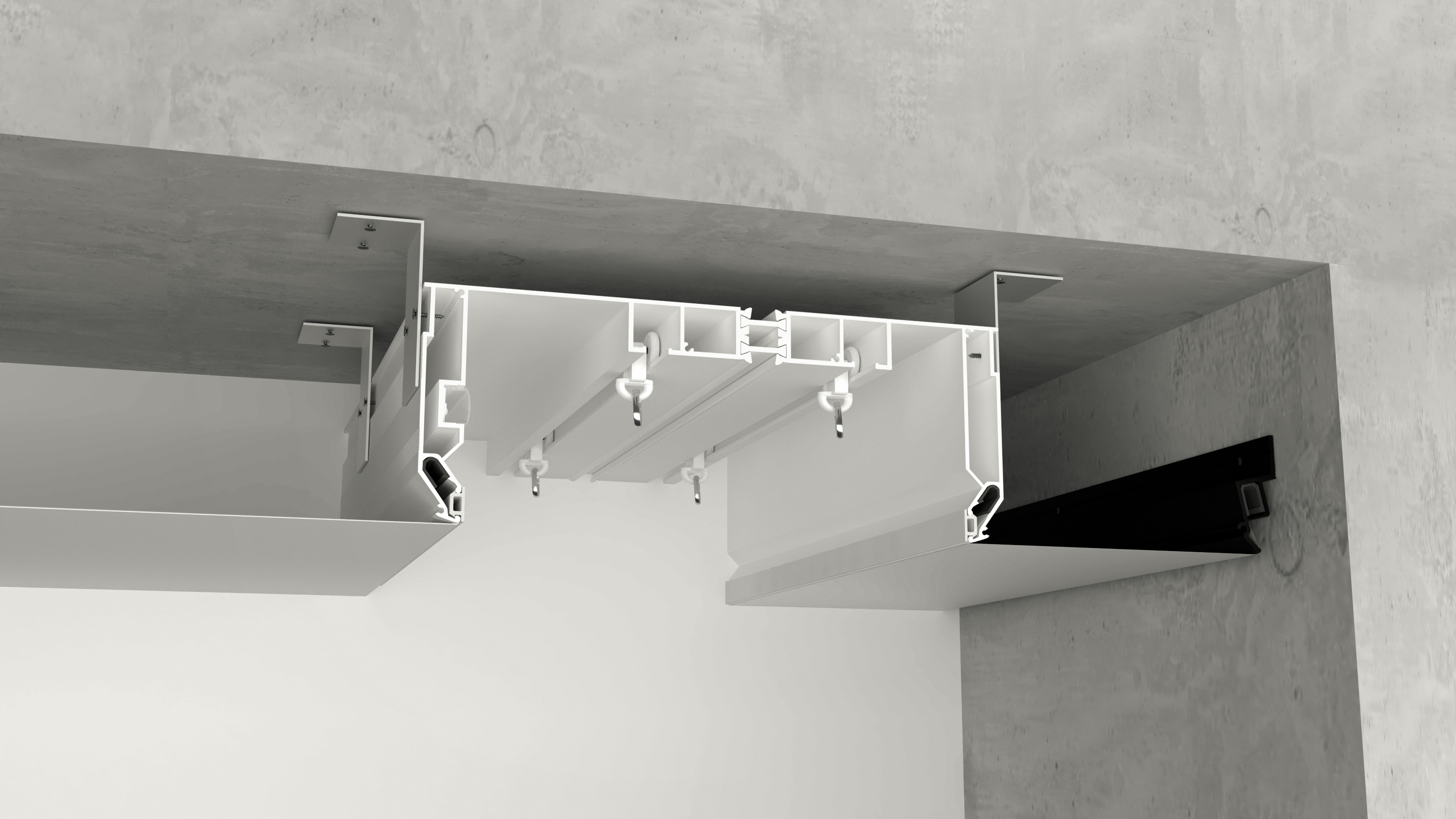

The profile is a U-shaped niche for curtains in one horizontal plane, forming a height of 75 mm.

The width of the curtain profile allows the use of thick curtains.

SK 2XL can be mounted both from wall to wall and with the formation of one or more breaks. It is also possible to mount angles of 90 and 45 degrees.

360° (twist)

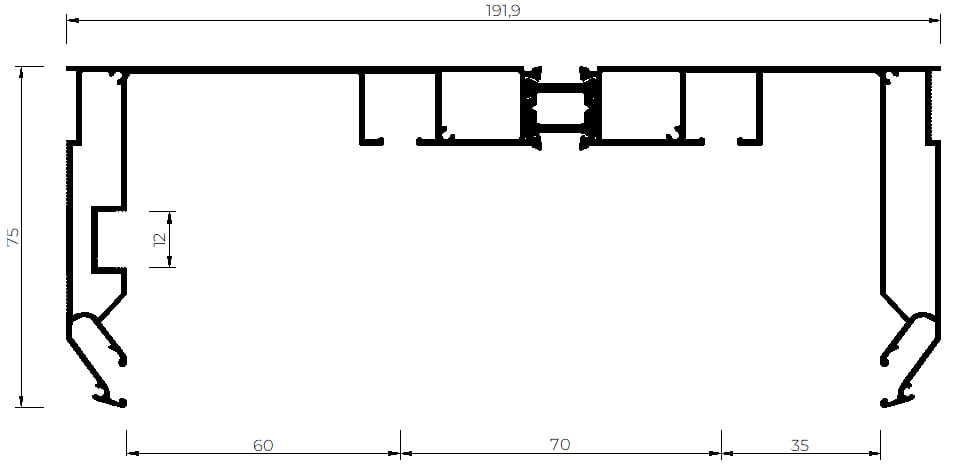

Drawing

Characteristics

Color: white, black

Material: aluminum

Length, m: 2/2.5/3.2/3.6

Fastening the canvas: harpoon

Constructive

2 grooves for a harpoon

a groove for LED strip installation

2 grooves for runners

2 grooves for a bandage tape

6 connecting wire grooves

Installation

Fastening:

Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.8

Filling the canvas:

The canvas is filled with a standard spatula. The grooves for the harpoon are closed with G7 insert tape.

LED Strip Light:

It is closed with a light-scattering diffuser LED 12.

Connection:

Bandage tape 15 mm, wire 1.8 mm.

Dismantling the canvas:

Possible without damage.

Runners:

The set includes special speed runners Runner Big. The number is 13 pcs./r.m in one track.
