PolskiProfile Gardina 2XL
Description
Gardina 2XL is a modernized version of Gardina XL with two grooves for runners, which differs by expanding the niche, increasing the distance between the beginning of the niche and the first groove, between the first and second groove for runners, increasing the height of the niche.
Gardina 2XL is the widest premium curtain solutions with a decrease in the level of the main ceiling to the additional.
The profile is an L-like niche for curtains with a height of 75 mm, which forms a minimal lowering of stretch ceiling from ceiling of 87.7 mm.
The width of the curtain profile makes it possible to use thick fabrics.
Gardina 2XL is mounted both from wall to wall and with the formation of angles of 90 and 45 degrees.

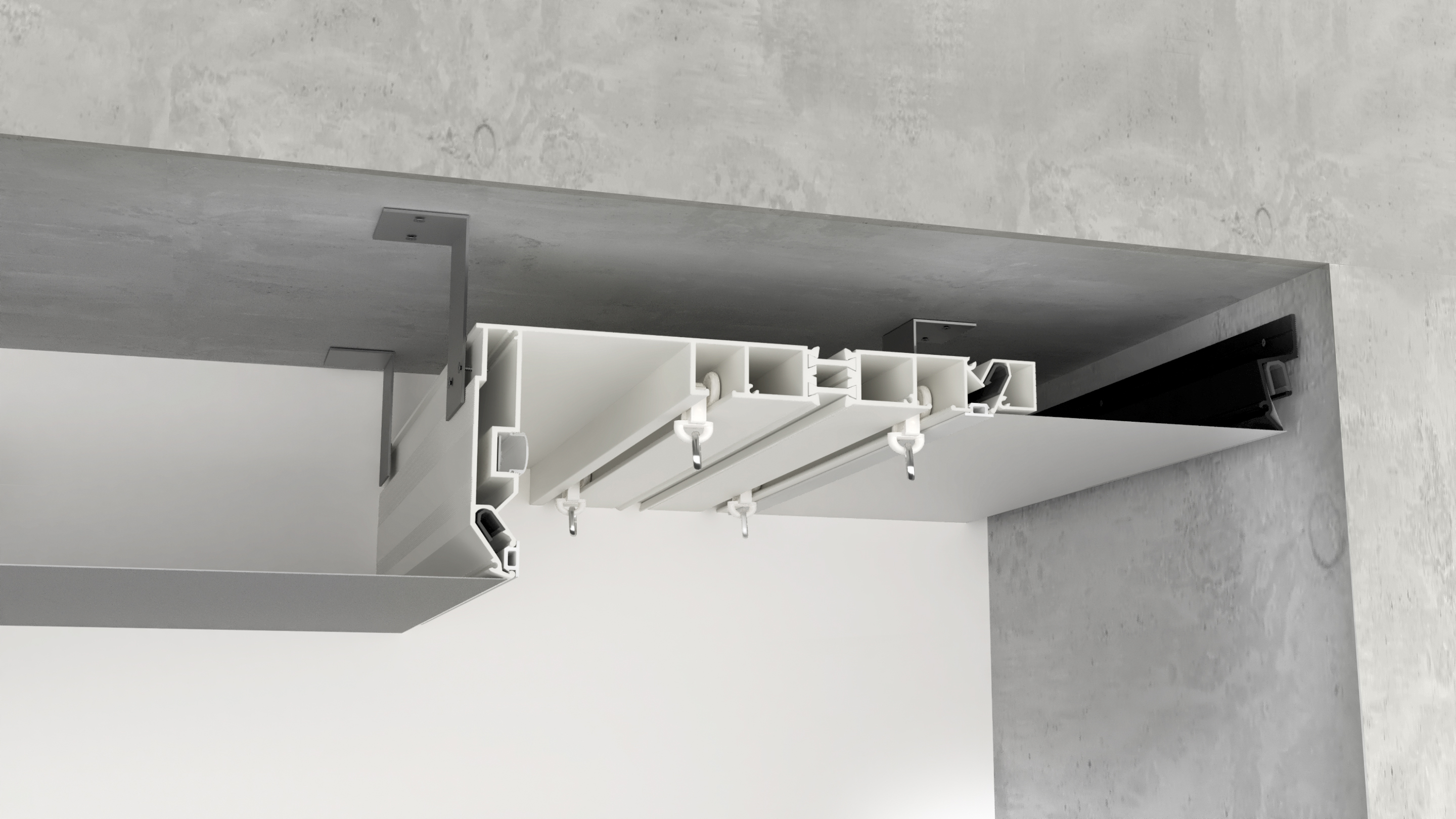

360° (twist)

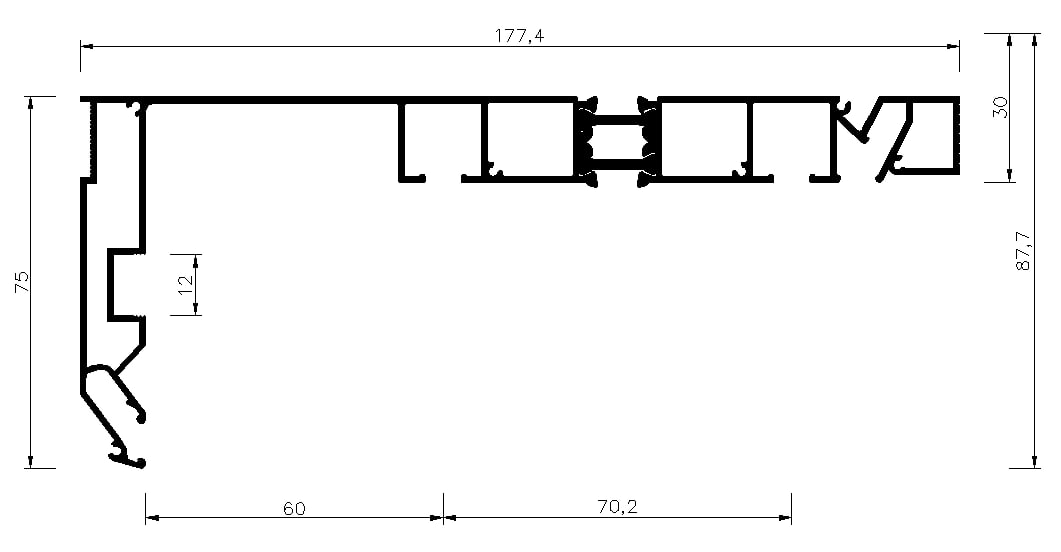

Drawing
Characteristics
Color: white, black
Material: aluminum
Length, m: 2.5/3.2/3.6
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
a groove for LED strip installation
2 grooves for hooks
a groove for bandage
6 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 0,8
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED Strip Light:
It is closed with a light-scattering diffuser LED 12.
Connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.

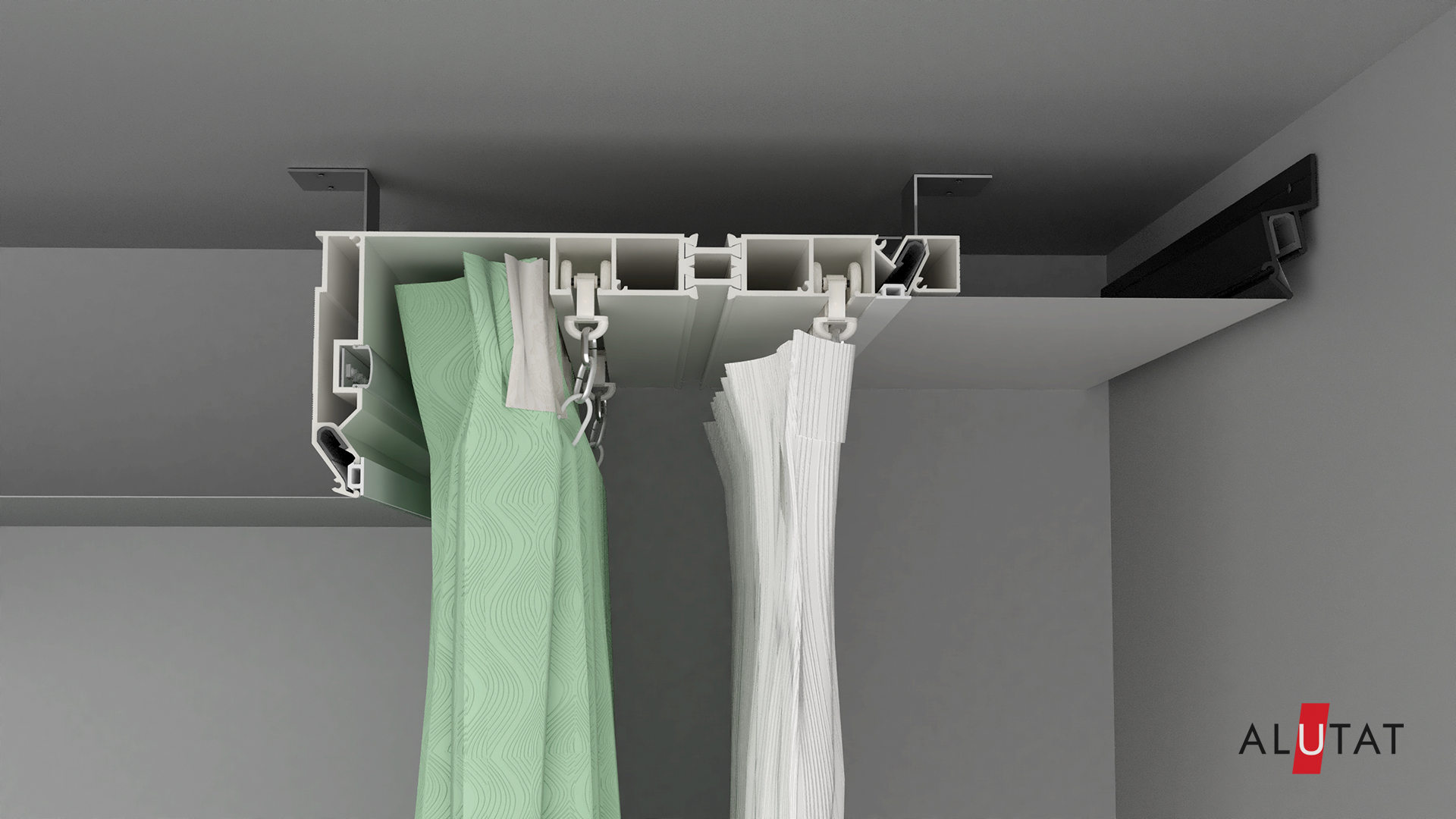

Runners:
The set includes special runners Runner Big. The number is 13 pcs./r.m in one track.
