PolskiProfile UNO
Description

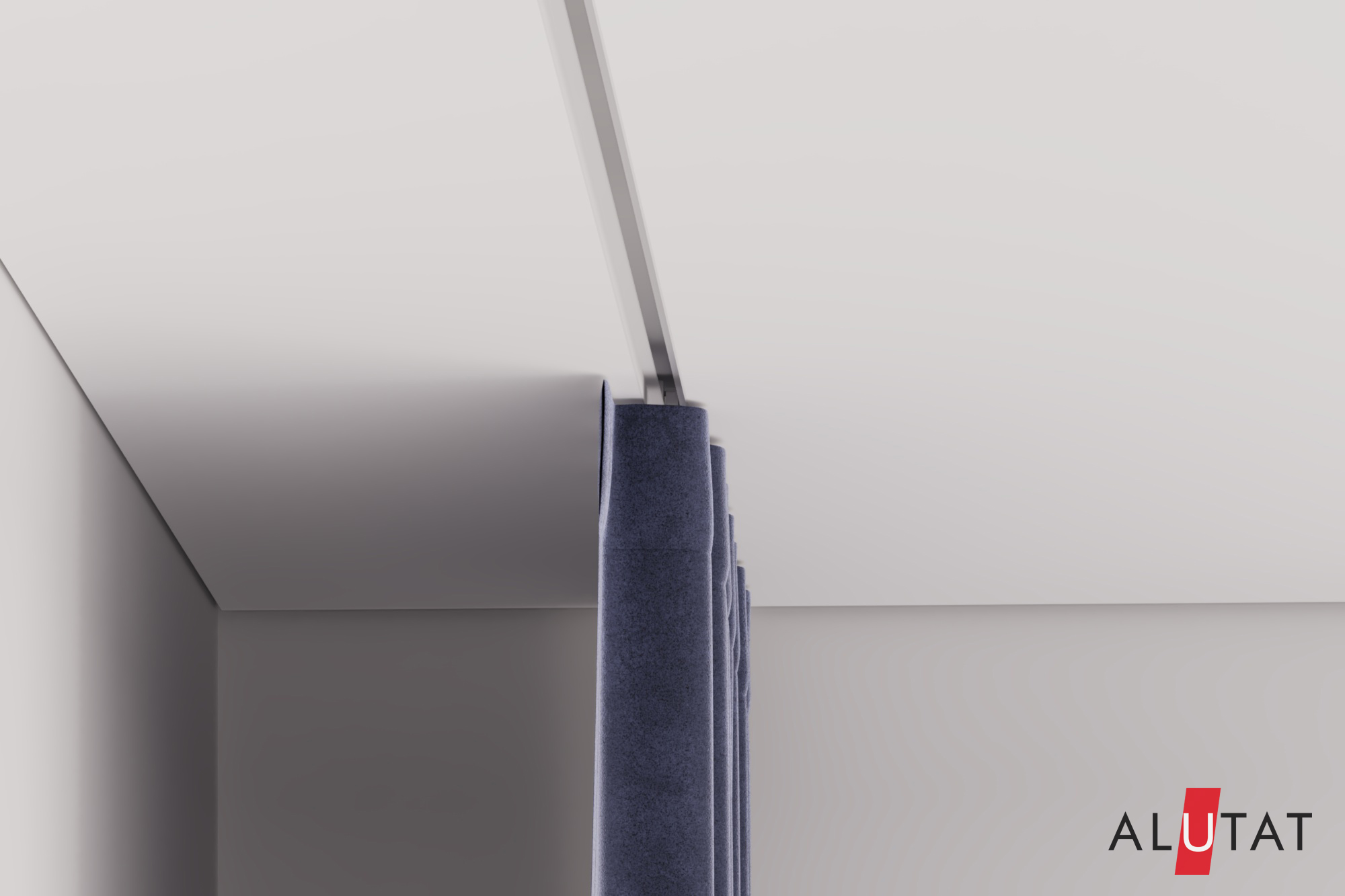

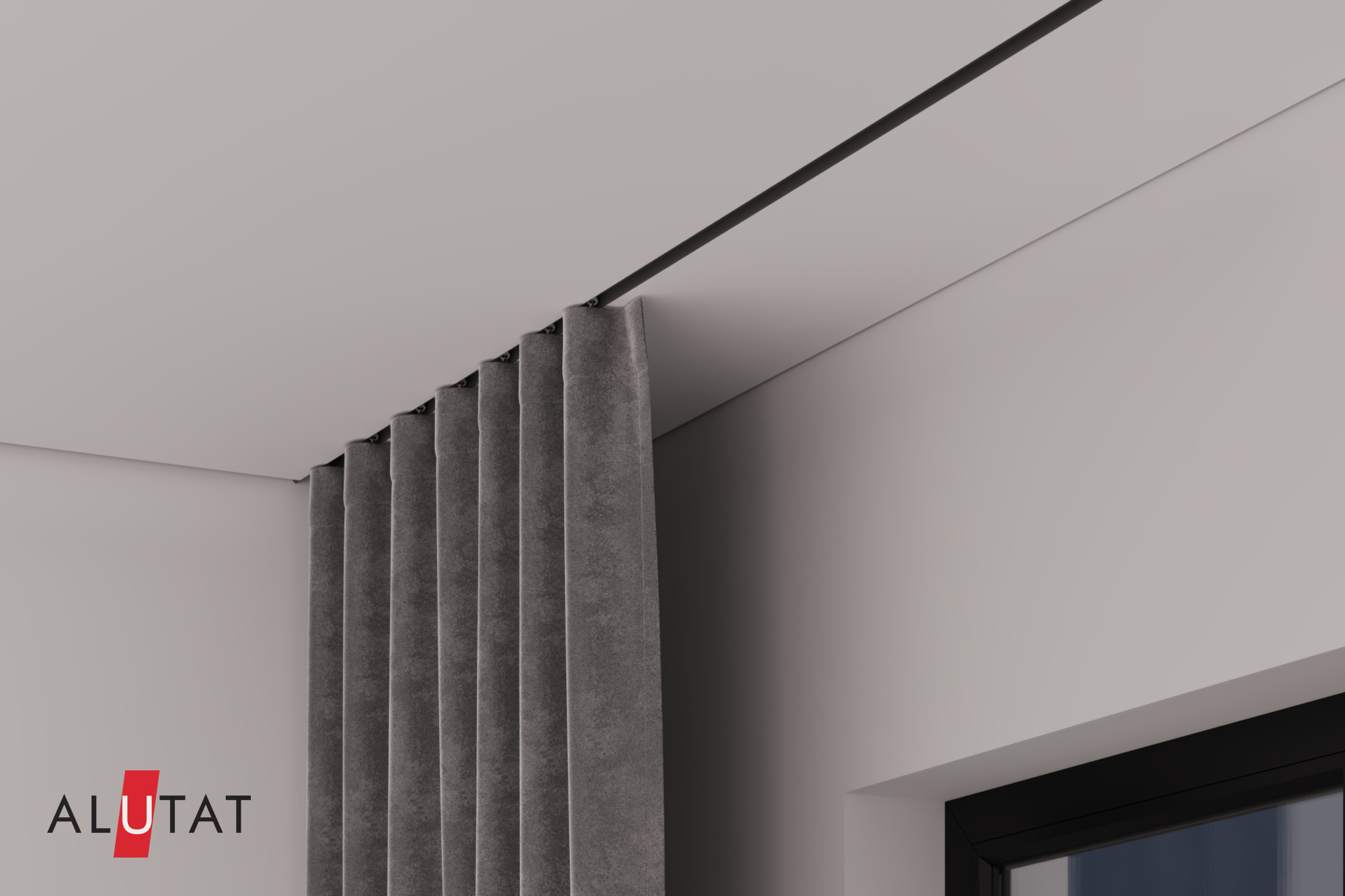

UNO profile is a single-strip cornice with a minimum drop of 3 cm from the main ceiling. UNO is mounted on the same level as the ceiling. The groove for runners is in the center. This profile is mounted both from wall to wall, and with the formation of one or more breaks and corners.

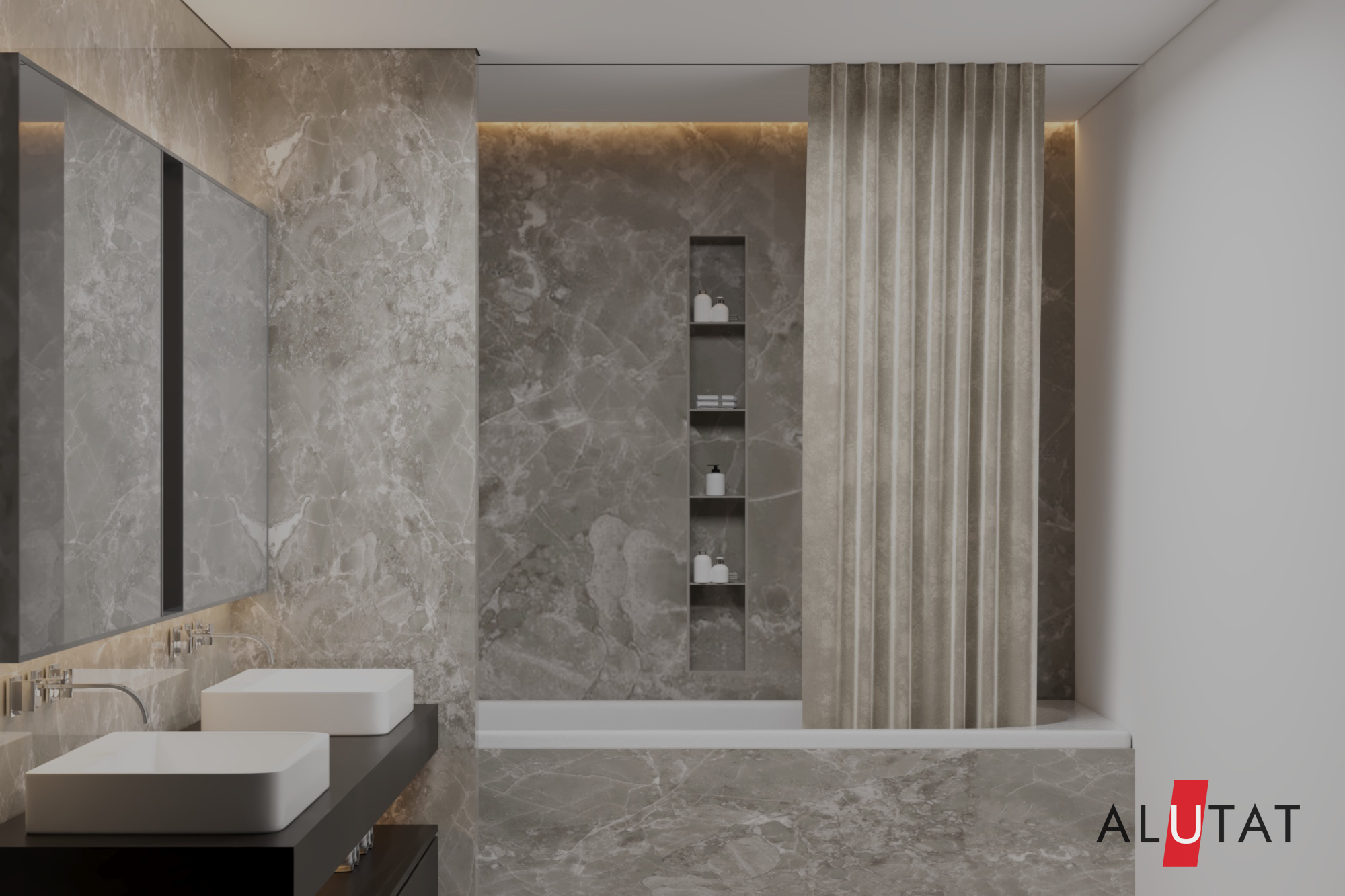

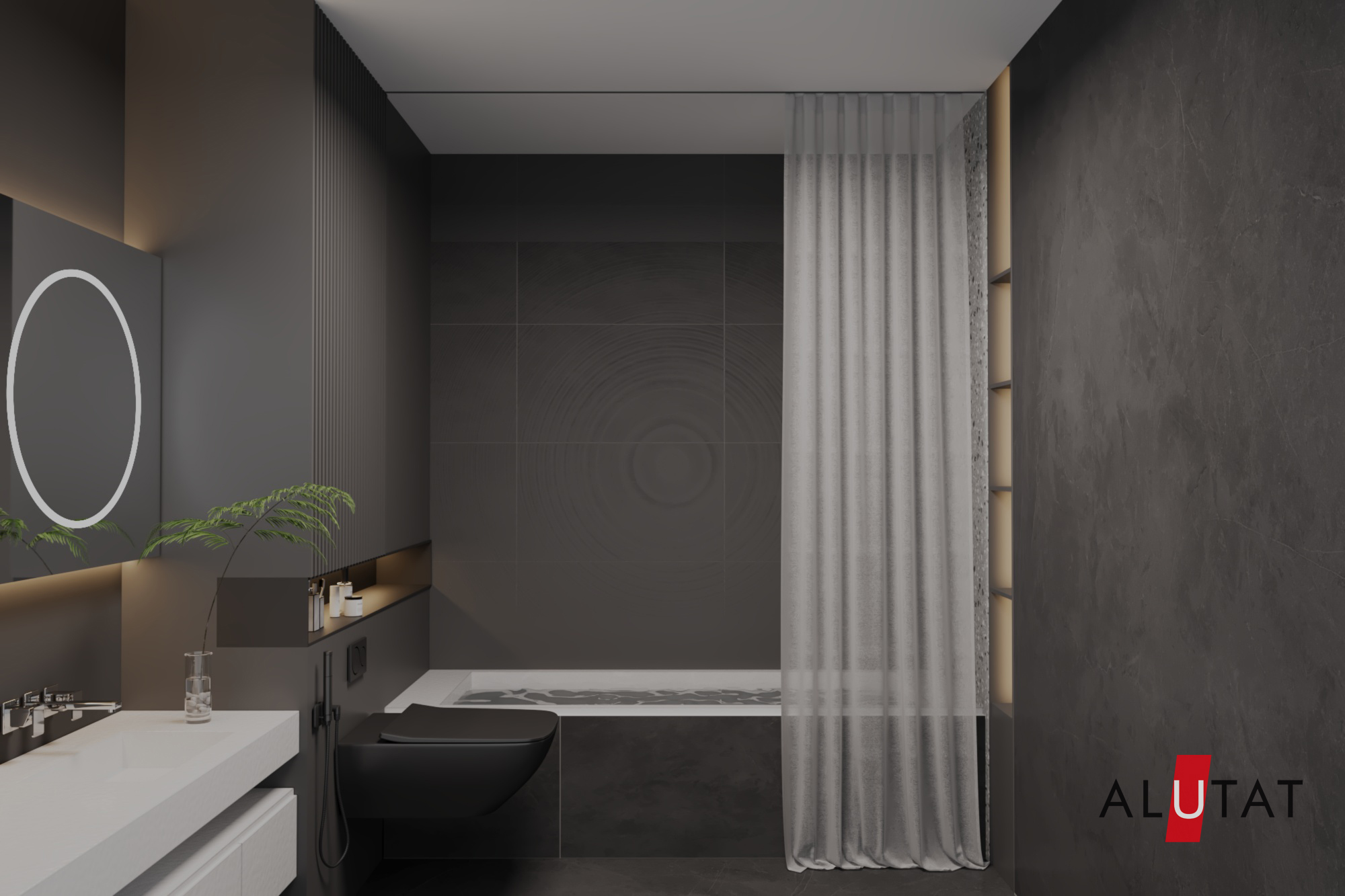

UNO profile can be used if it is necessary to install only curtains, tulle or curtains in the bathroom.
Runner Big runners are included with the profile.
360° (twist)

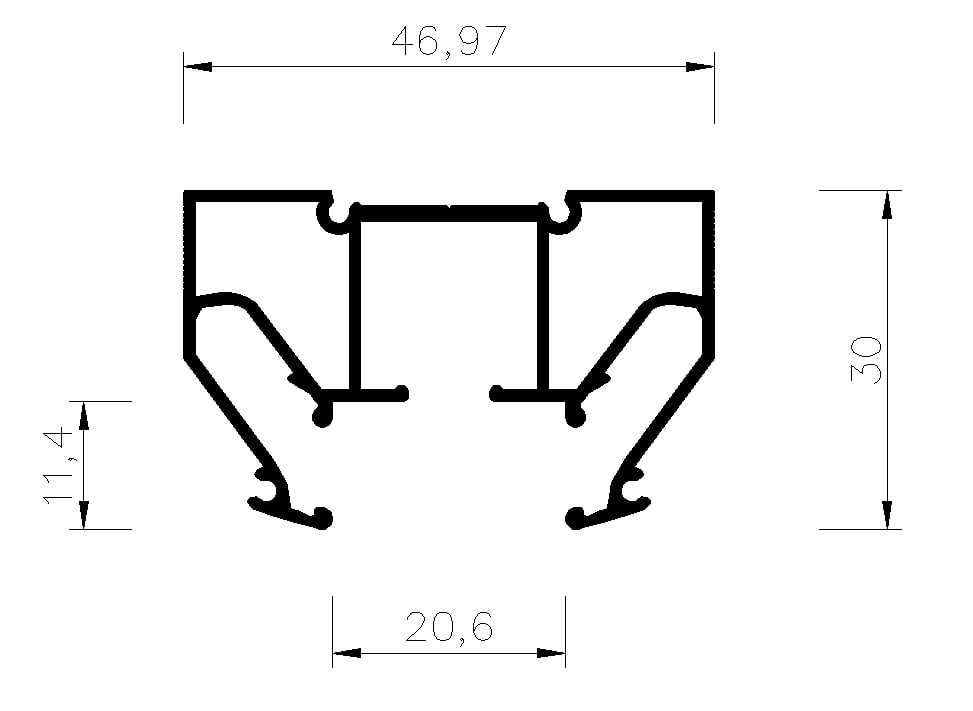

Drawing
Characteristics
Color: white, black
Material: aluminum
Length, m: 2/2.5/3.2
Fastening the canvas: harpoon

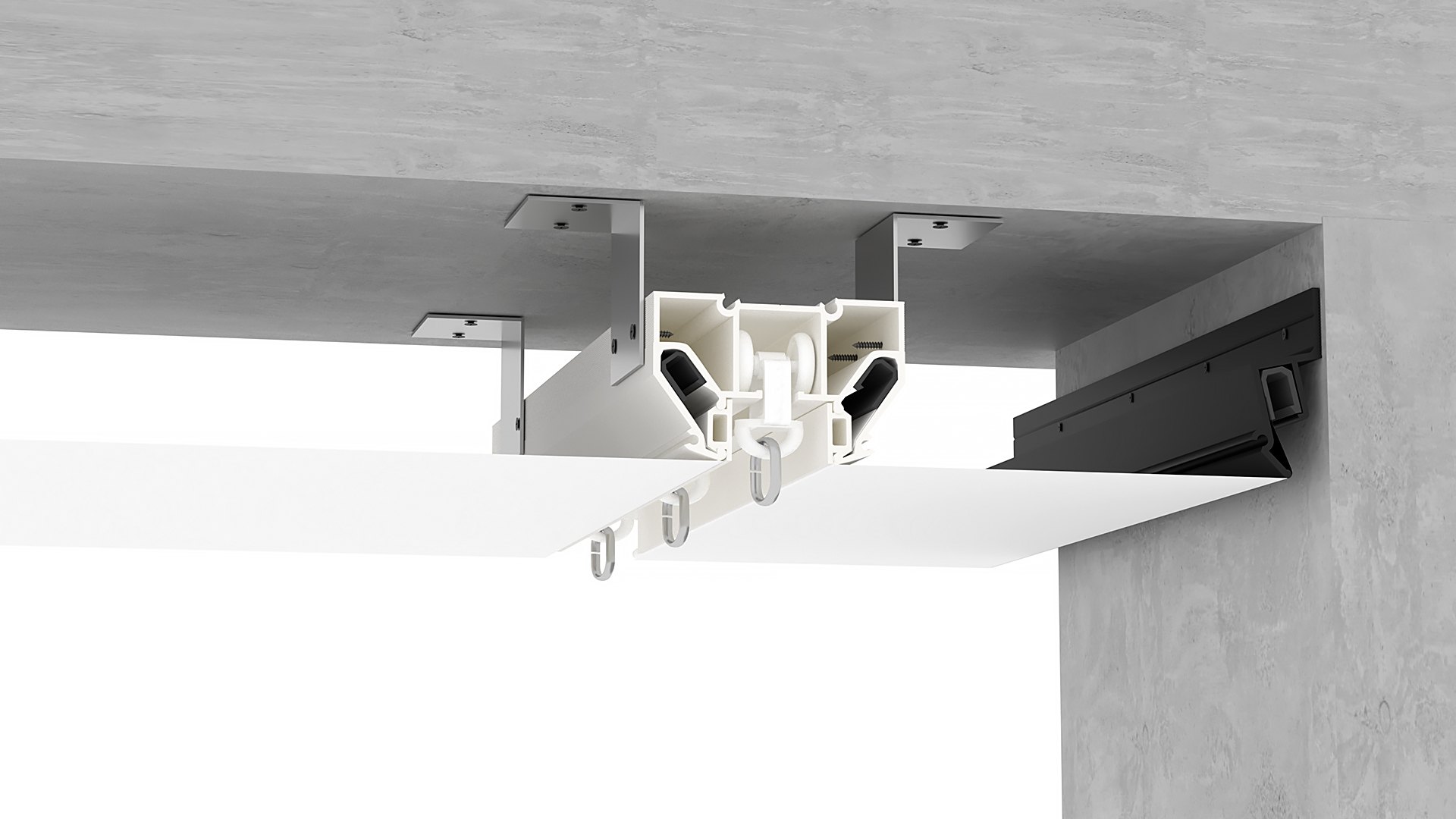

Constructive
2 grooves for a harpoon
a groove for runners
4 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.5 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
Connection:
Wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
Runners:
The set includes special runners Runner Big. The number is 13 pcs./p.m. in one track.
