Profile SKD 4.0

Description

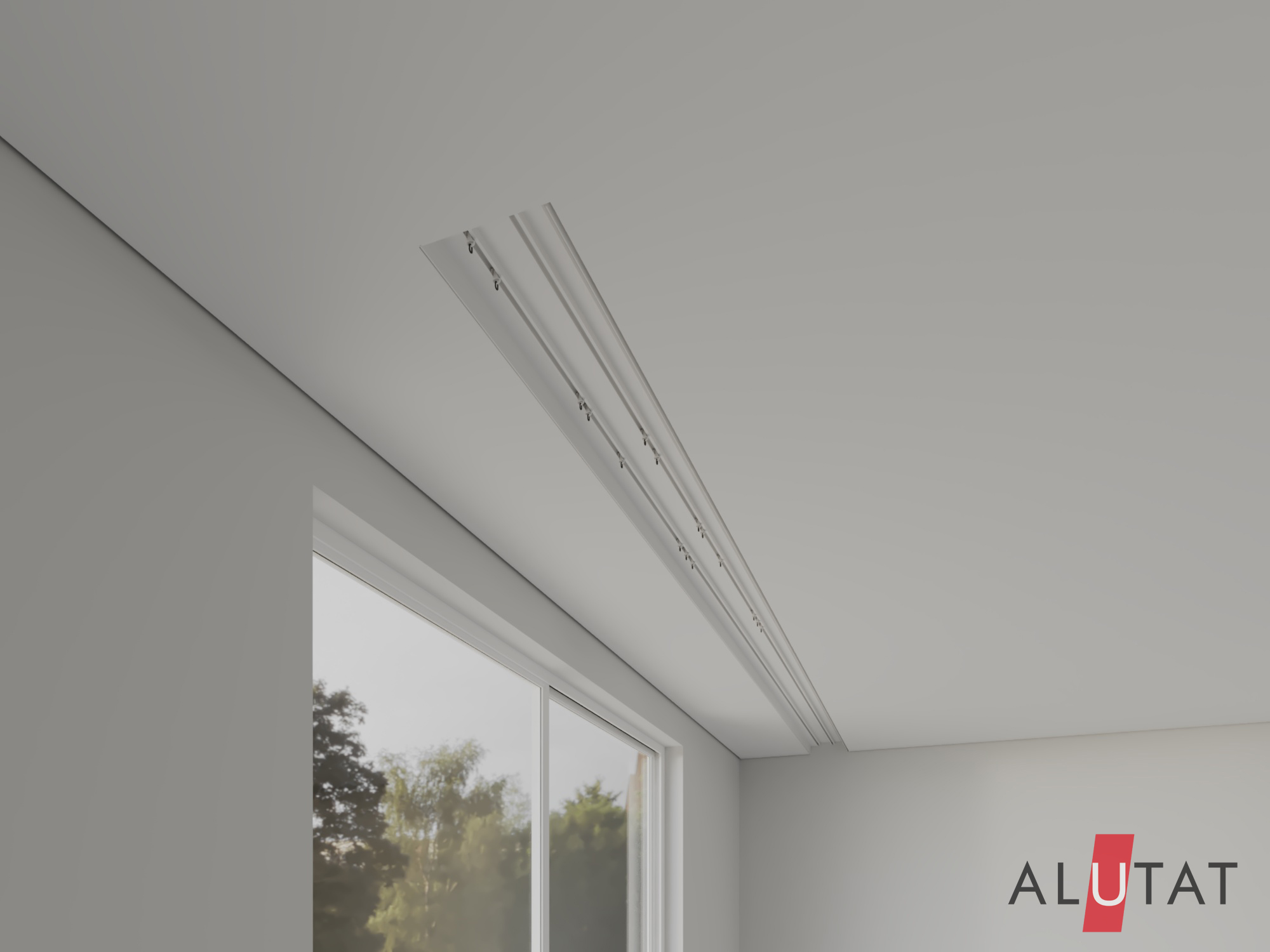

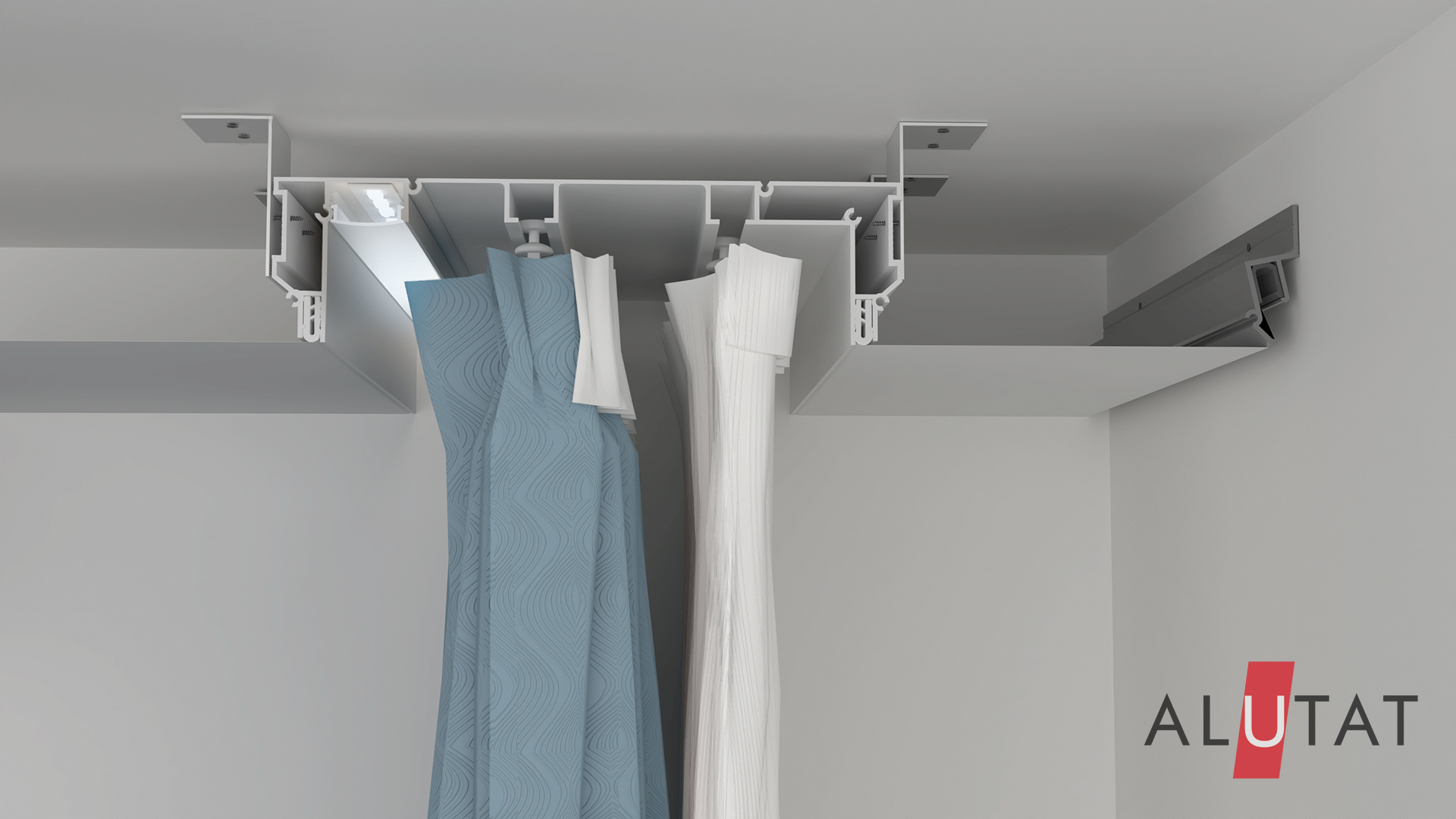

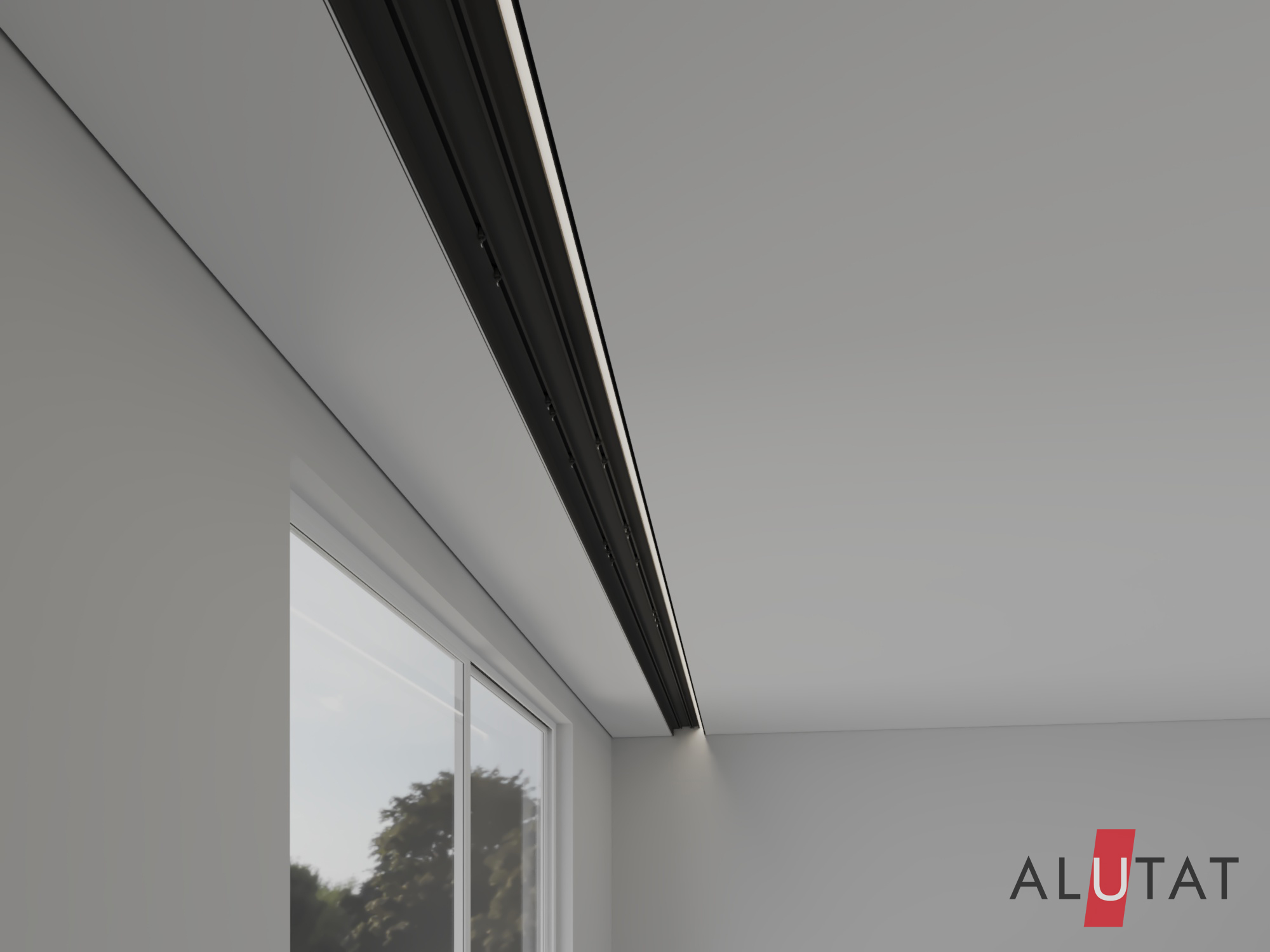

SKD 4.0 is a wide curtain rod solution with two grooves for runners. The profile is designed for a damper system for installing a stretch ceiling.

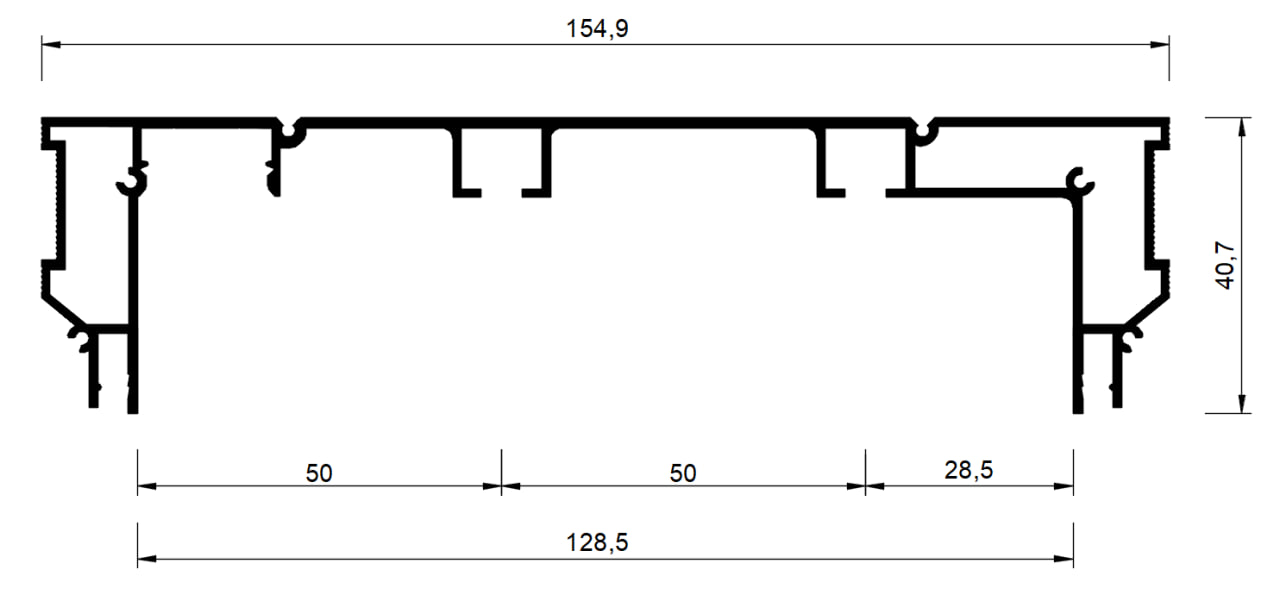

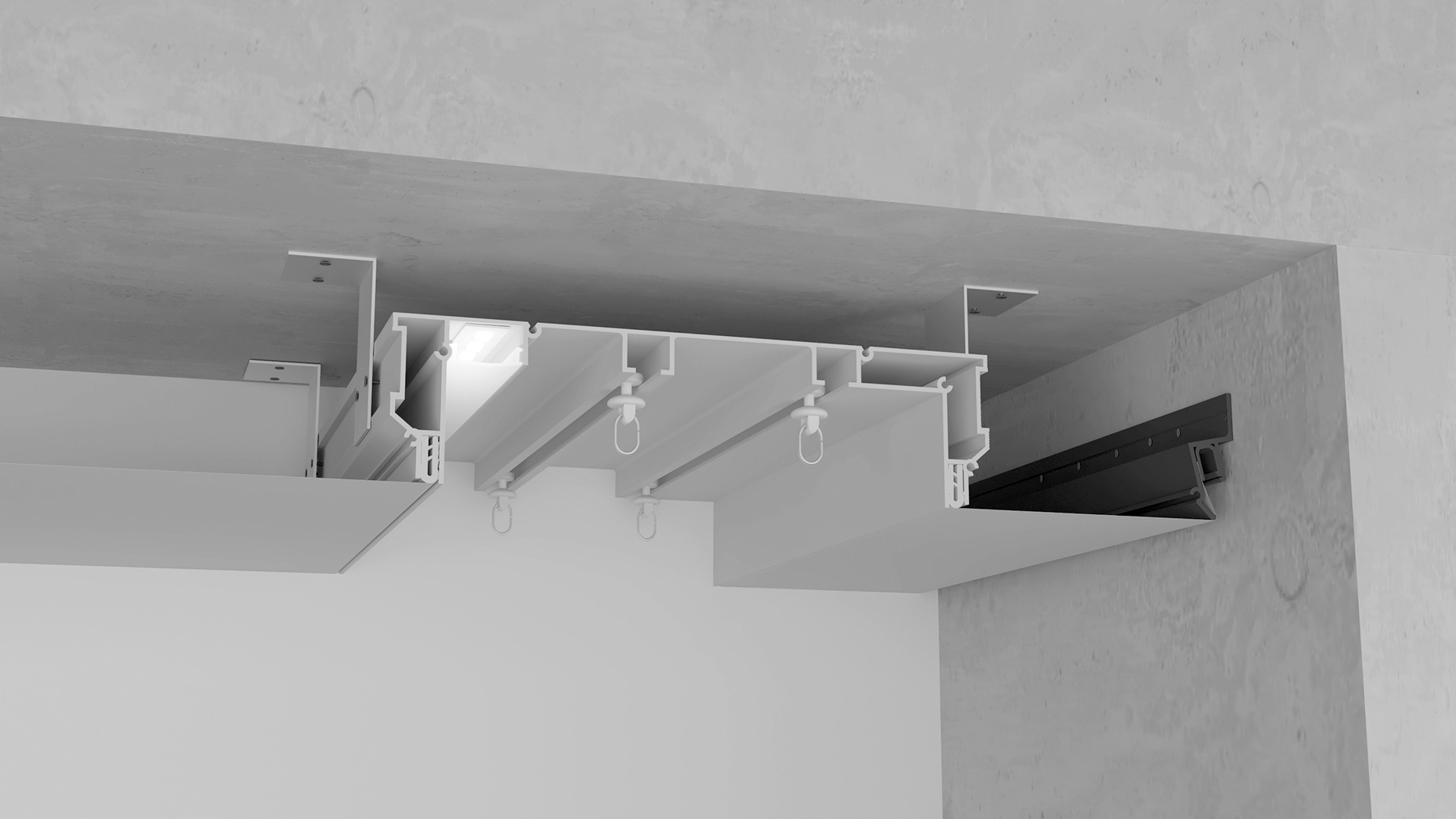

The profile is a wide U-shaped niche for curtains, which forms a minimum reduction in the stretch ceiling from the ceiling of 40 mm.

SKD 4.0 is mounted both from wall to wall and with the formation of one or more breaks.

It is also possible to install angles of 90 and 45 degrees.

Color: white, black

Material: aluminum

Length, m: 2.0/2.5/3.2

Fastening the canvas: damper

2 grooves for a damper

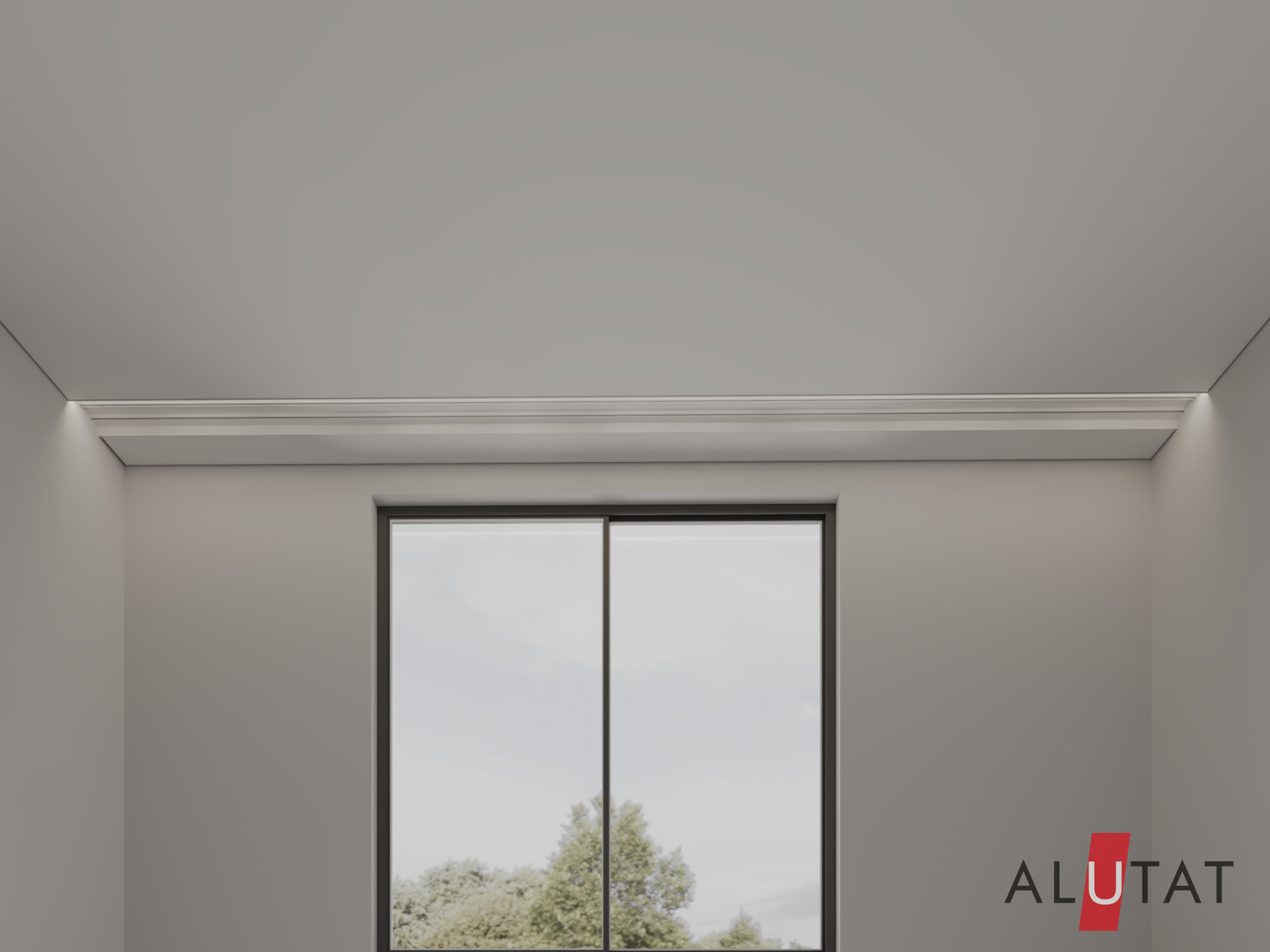

a side groove for LED strip installation

2 grooves for runners

2 grooves for a bandage tape

6 connecting wire grooves

Fastening:

Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 0.8

Filling the canvas:

The canvas is mounted with a spatula for a harpoon-free system of mounting a stretch ceiling.

LED strip:

It is closed with a light-scattering diffuser LED

Connection:

Bandage tape 15 mm, wire 1.8 mm.

Dismantling the canvas:

Possible without damage.

Runners:

The set includes special runners Runner Small. The number is 13 pcs./p.m. in one track.
