PolskiProfile FD (Fly Dark)
Description
The uniqueness of FD profile is the combination of a shadow solution in a flying profile. A feature of the profile solution is the installation of the LED strip on a horizontal surface, which directs the light vertically downwards.
An acrylic diffuser LED 17 with a width of 17 mm is used in the profile. G7 insert tape in white or black colors is also used to close the harpoon slot. The back of the profile is painted black.
The shadow joint makes it possible to install the profile on the walls without high requirements for contiguity and joints.

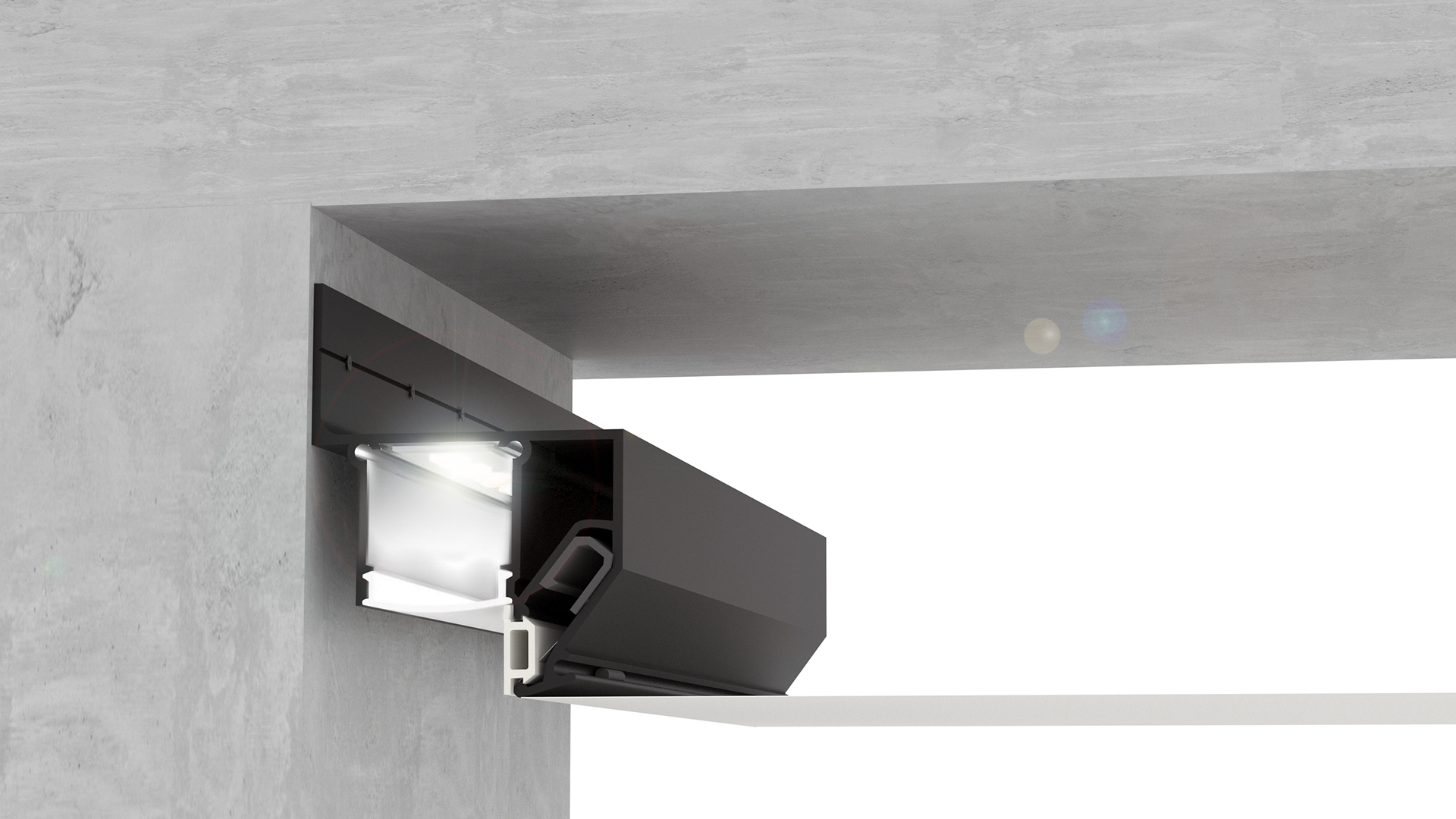

360° (twist)

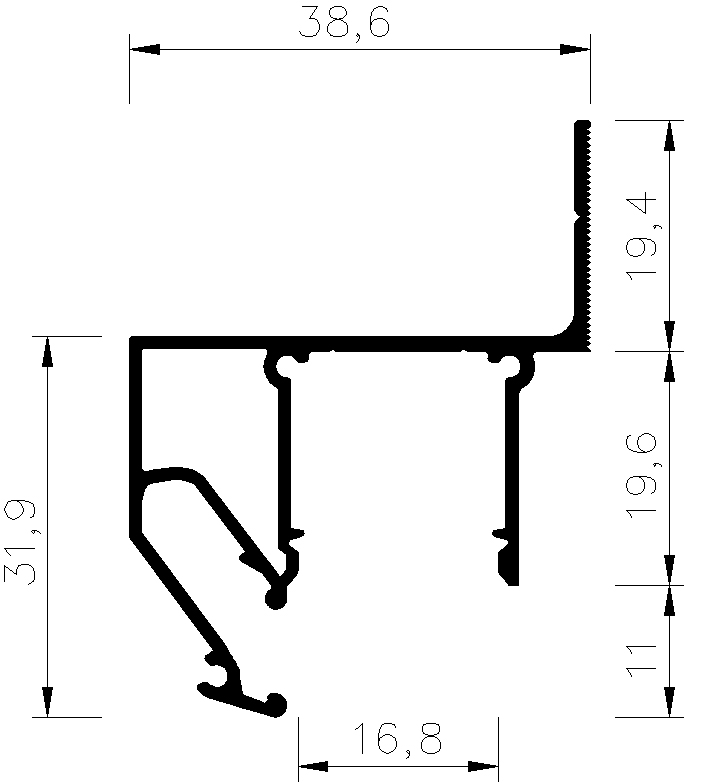

Drawing
Characteristics
Color: partly black
Material: aluminum
Length, m: 2
Fastening the canvas: harpoon
Constructive
a groove for a harpoon
a groove for LED strip installation
3 connecting wire grooves
Installation
Fastening:
2 options
- fastening to the wall;
- a dowel to the ceiling and a self-tapping screw for metal through the mounting corners in a special box in the profile.
The fastening step is up to 0.18 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
The ability to install light-scattering tape both on a horizontal and vertical surface, which makes it possible to connect light tapes from different power sources. It is closed by a light-scattering diffuser LED 17, which is installed in the profile. The light flow is directed vertically.
Connection:
Wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
