Profile SK 3.0

Description

Profile SK 3.0 is a modernized version of SK 2.0, which differs by expanding the niche, increasing the distance between the grooves for hooks, and their asymmetric displacement to one side.

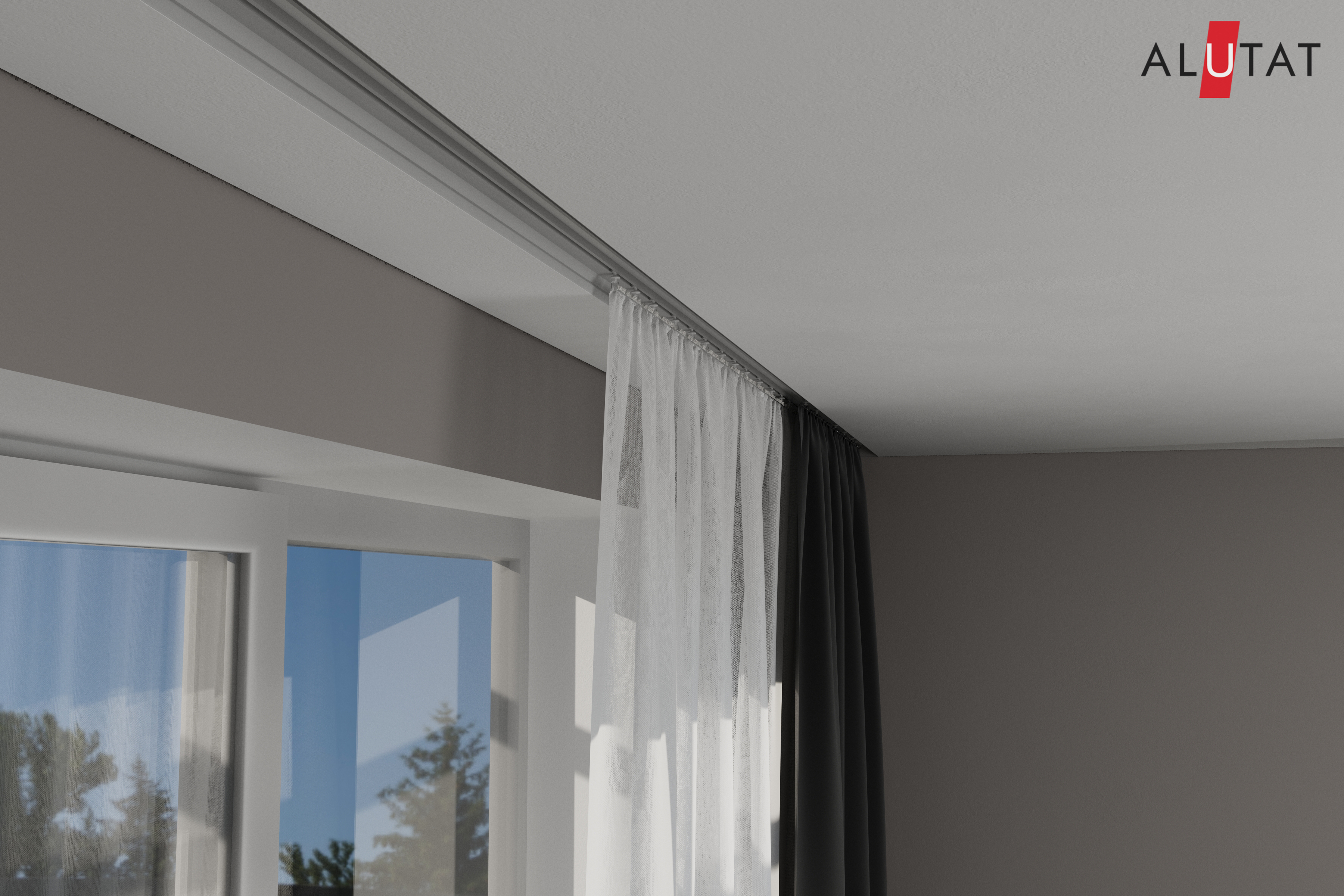

The profile is a wide U-shaped niche for curtains, which forms a minimum drop of the stretch ceiling from the main ceiling of 4 cm.

360° (twist)

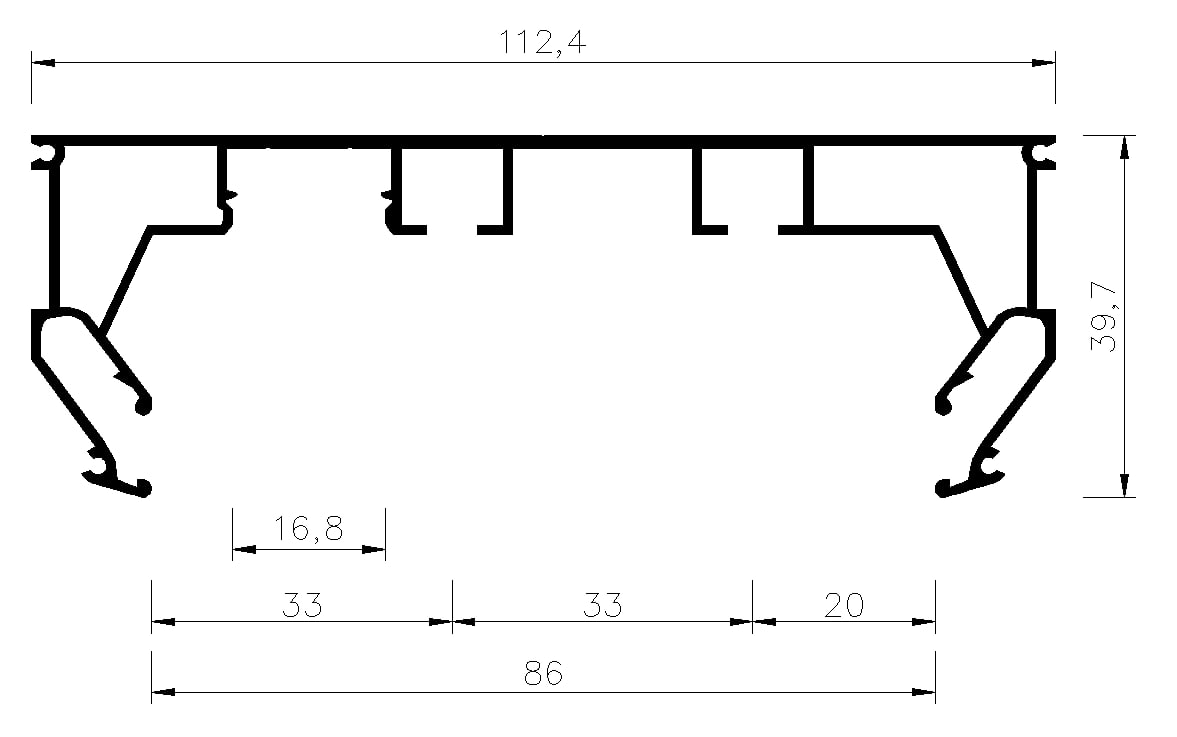

Drawing

Characteristics

Color: white, black

Material: aluminum

Length, m: 2,0/2,5/3,2/3,6

Fastening the canvas: harpoon

Constructive

2 grooves for a harpoon

a groove for the installation of the LED strip

2 grooves for runners

2 grooves for a bandage tape

4 connecting wire grooves

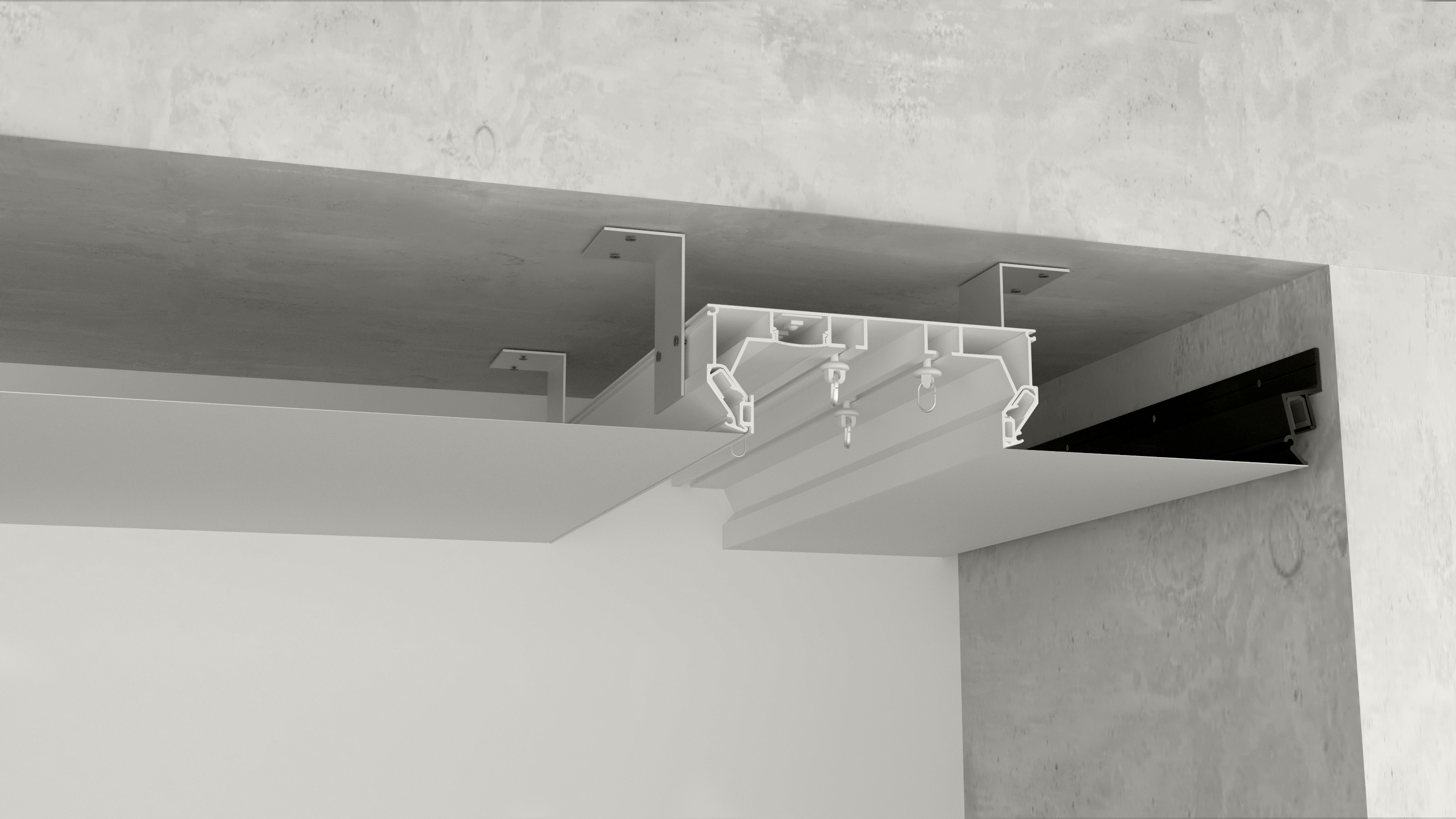

Installation

Fastening:

Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 1 m.

Filling the canvas:

The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.

LED strip:

It is closed with a light-scattering diffuser LED 17.

Connection:

Bandage tape 15 mm, wire 1.8 mm.

Dismantling the canvas:

Possible without damage.

Runners:

The set includes special runners Runner Small. The number is 13 pcs./p.m. in one track.
