PolskiProfile TL 40 (Trend Line 40)
Description
TL 40 is a special type of light line that is recessed to a height of 10 mm. It is a partner of the TL 40 Contour profile.

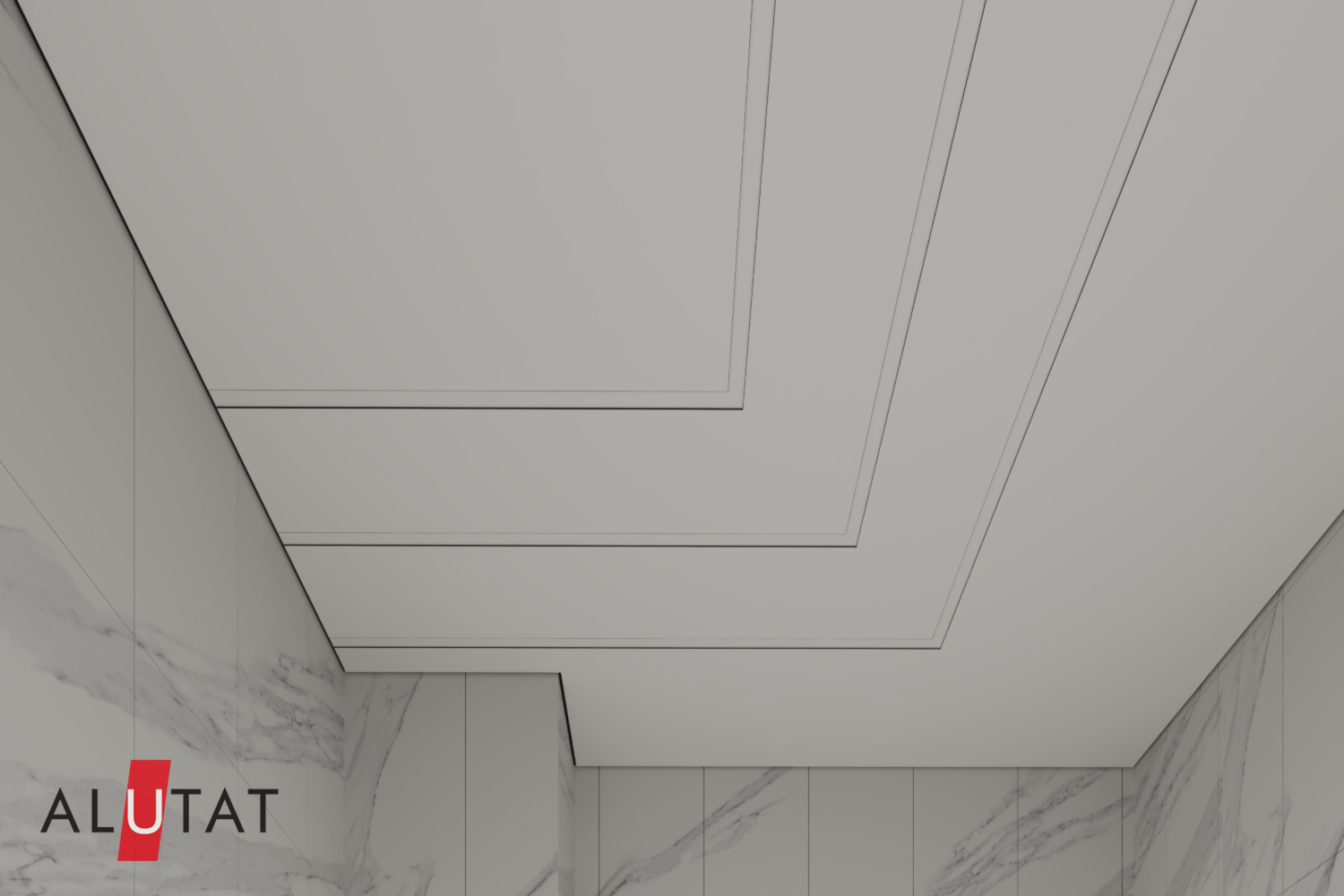

The vertical wall is formed by the G7 insert tape. The insert tape can be used in both white and black colors, which can form different interiors. When using the black TL 40 insert, it can be combined with ALUTAT shadow solutions.

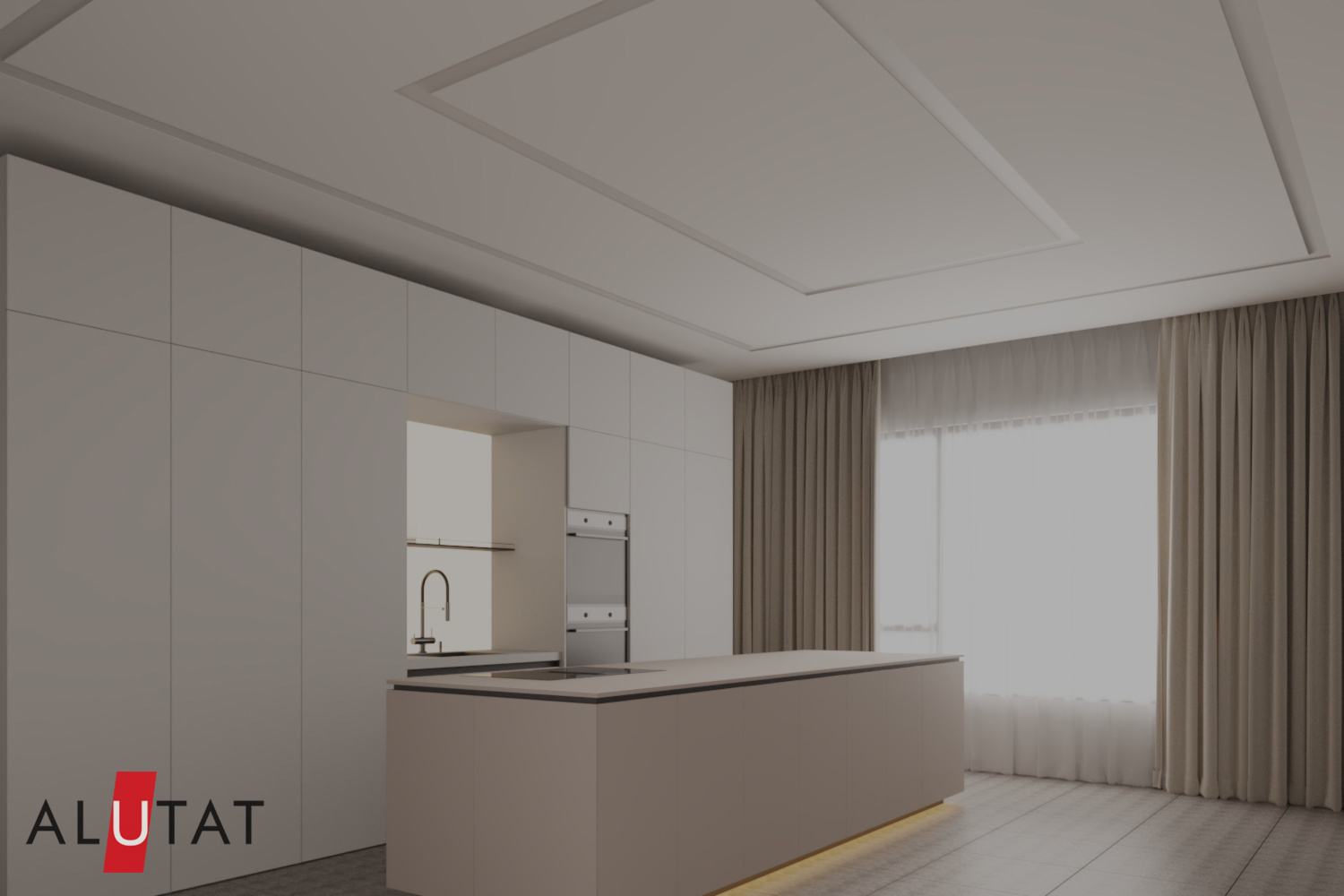

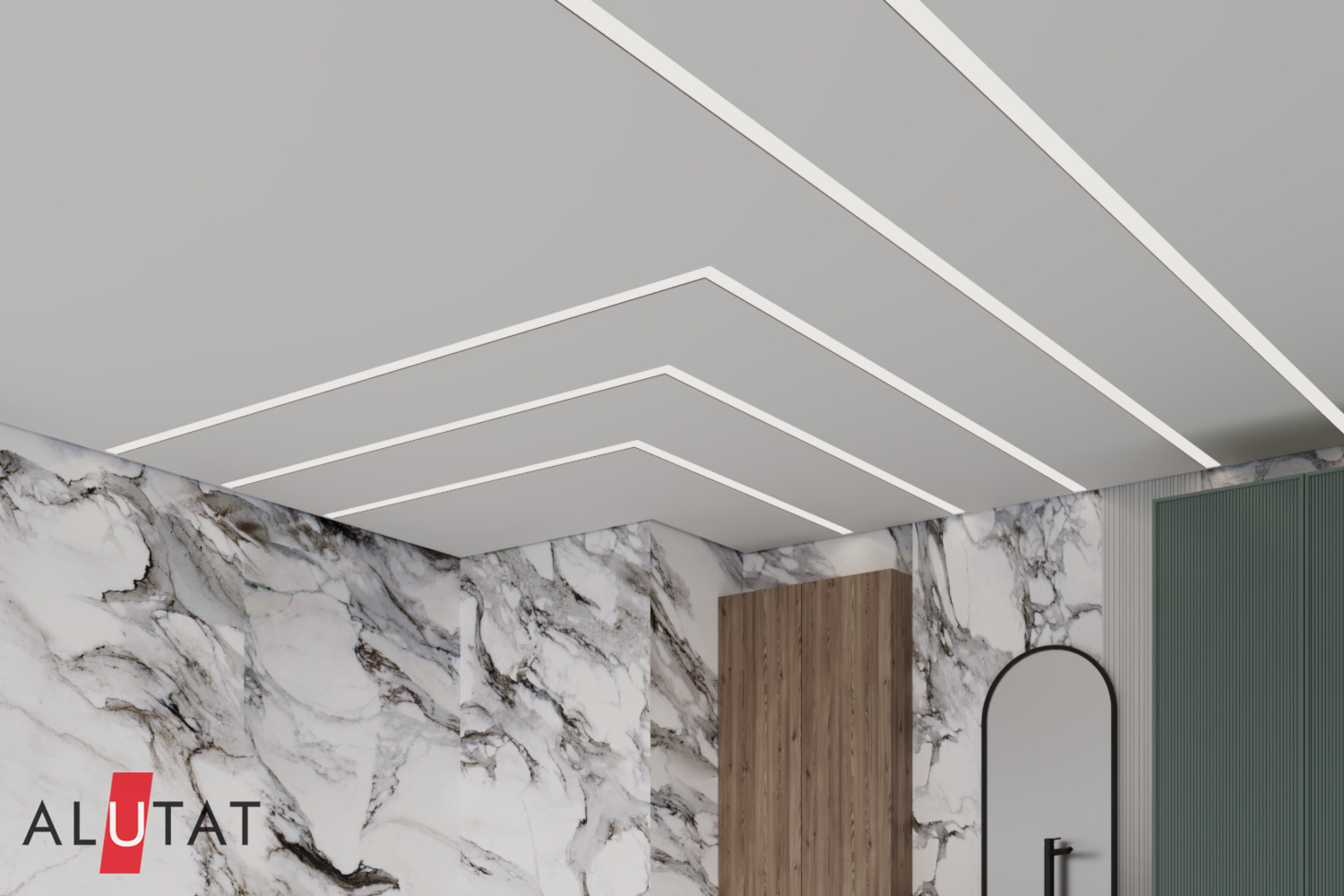

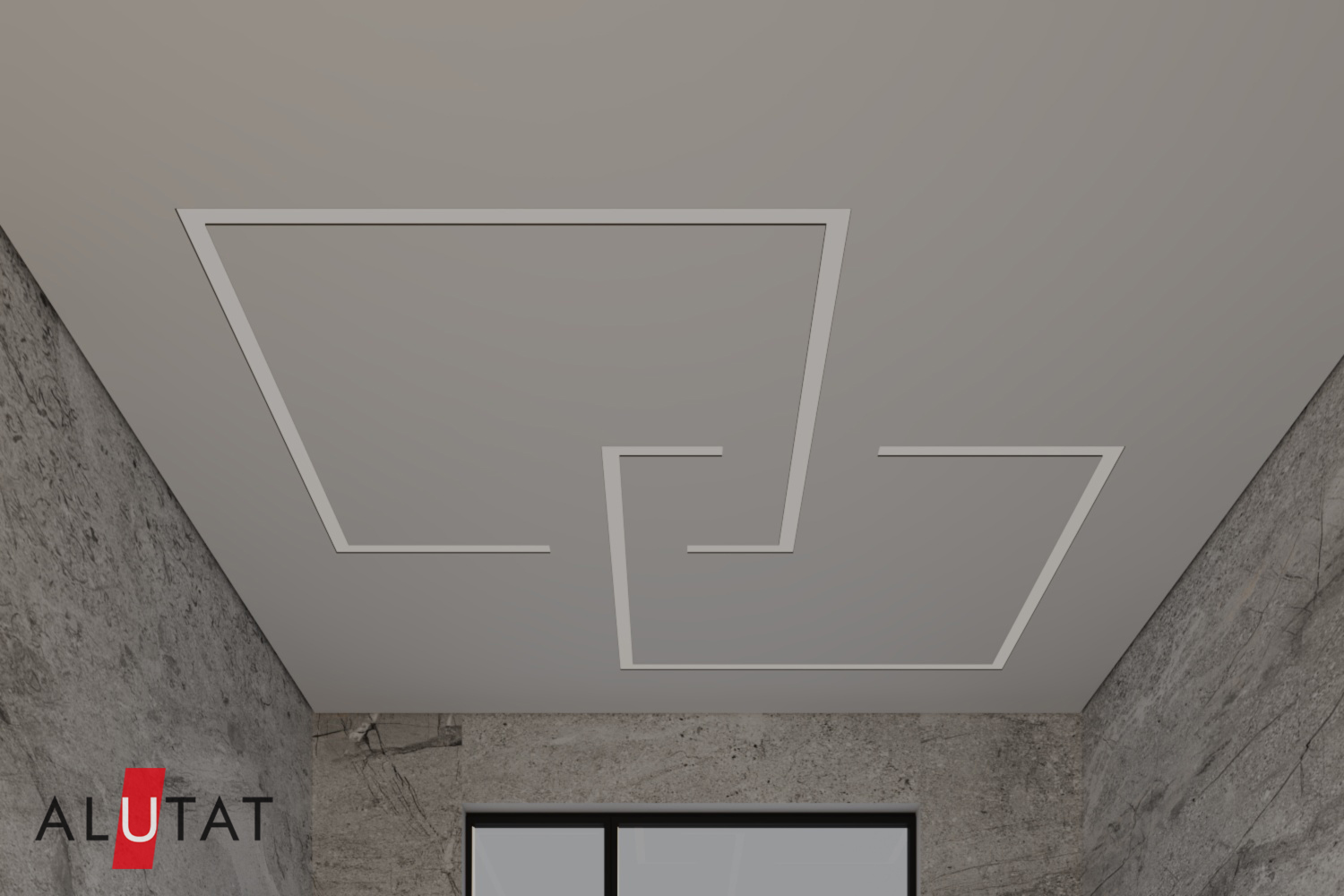

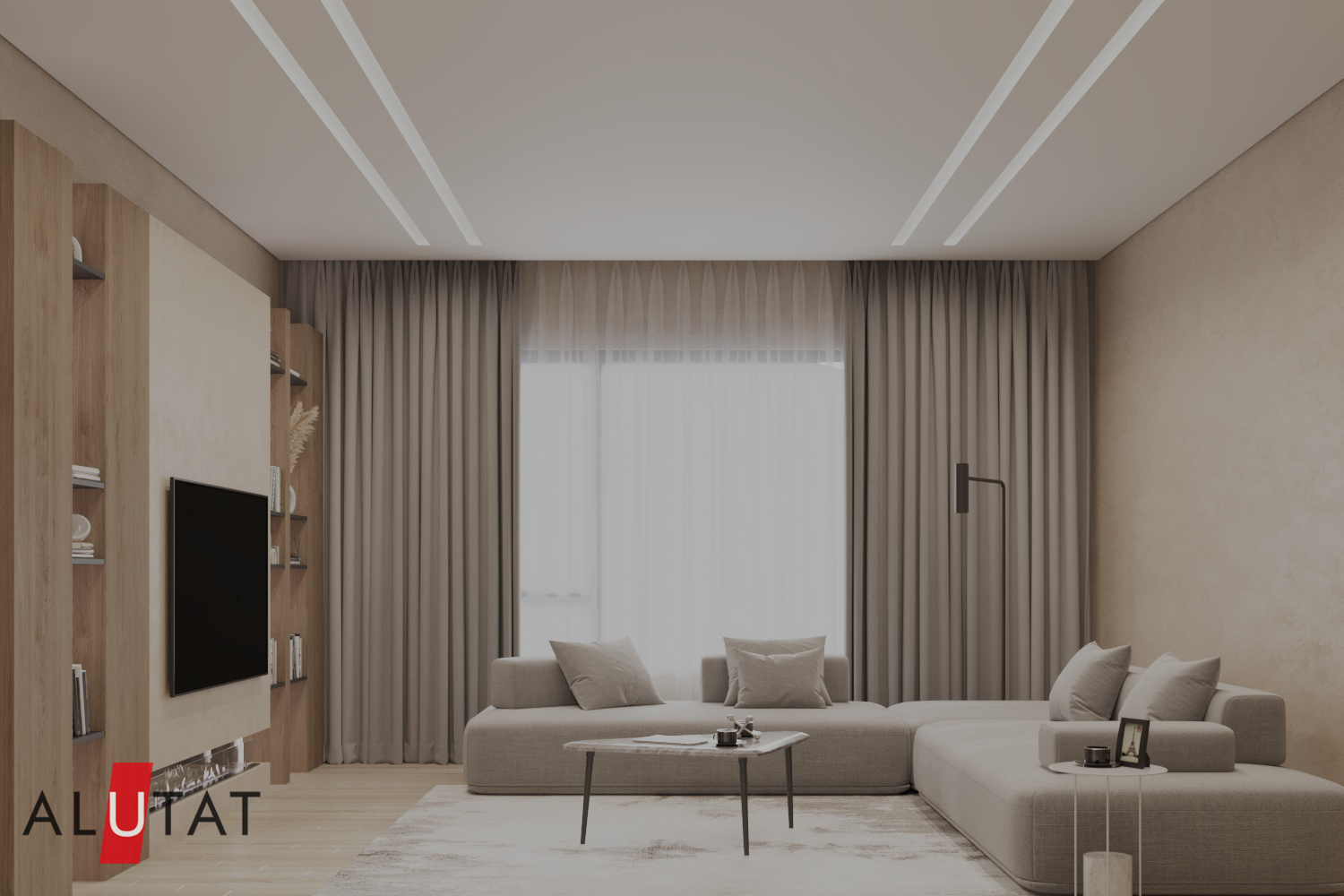

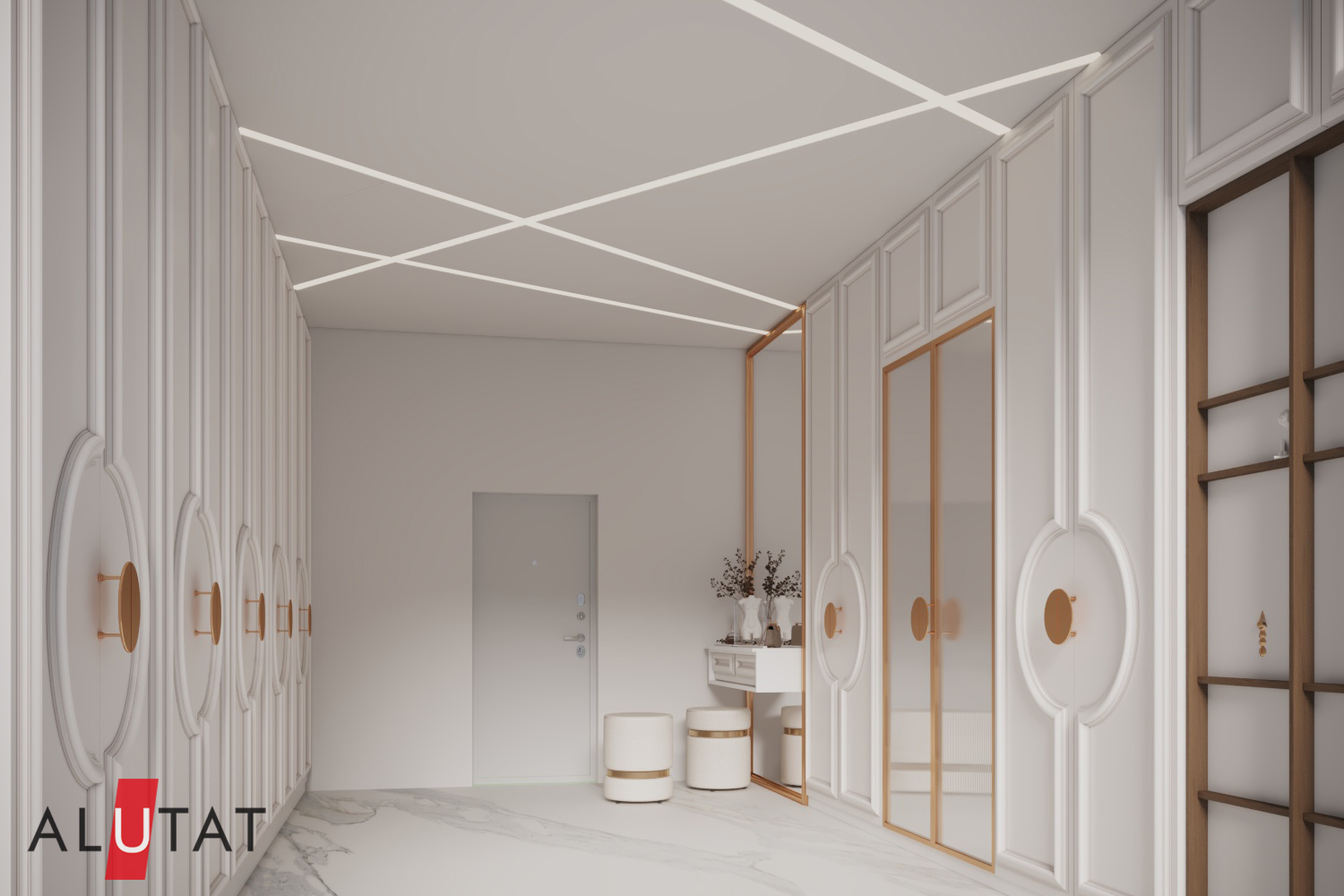

TL 40 is a source of the main lighting in the room by forming a recessed light line with a width of 40 mm.
It is recommended to combine with TL 40 Contour profile to obtain the same light flow both around the perimeter and in the center of the room.
360° (twist)

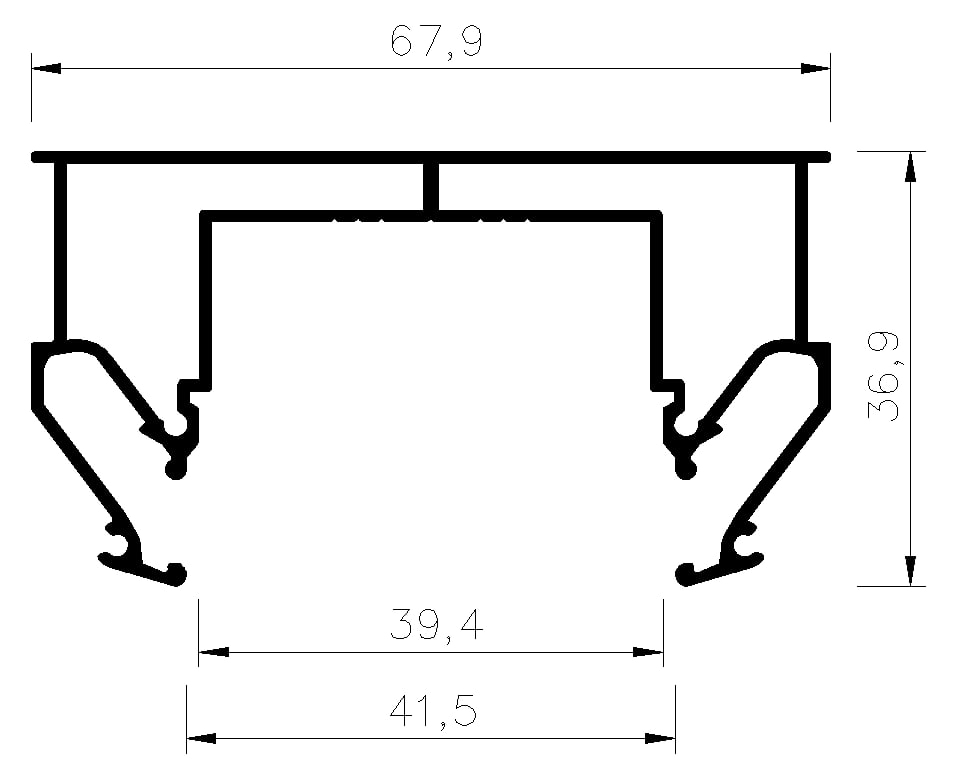

Drawing
Characteristics
Color: unpainted
Material: aluminum
Length, m: 2
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
2 grooves for a bandage tape
a groove for LED strip installation
4 connecting wire grooves

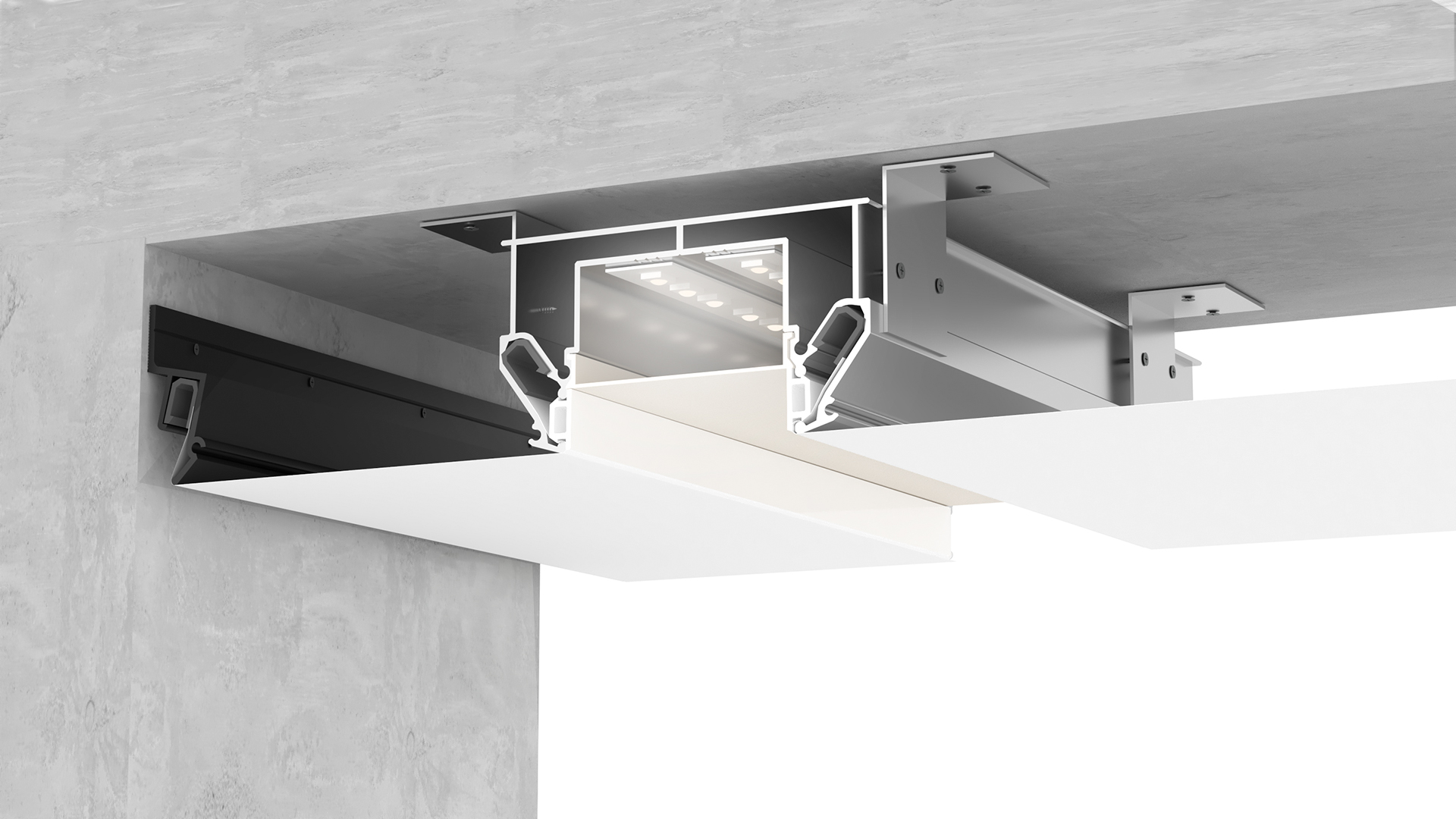

Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.8 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed by a light-scattering diffuser LED 40, which is installed in the profile.
Connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
