RomânăProfile TE (Track Everywhere)
Description

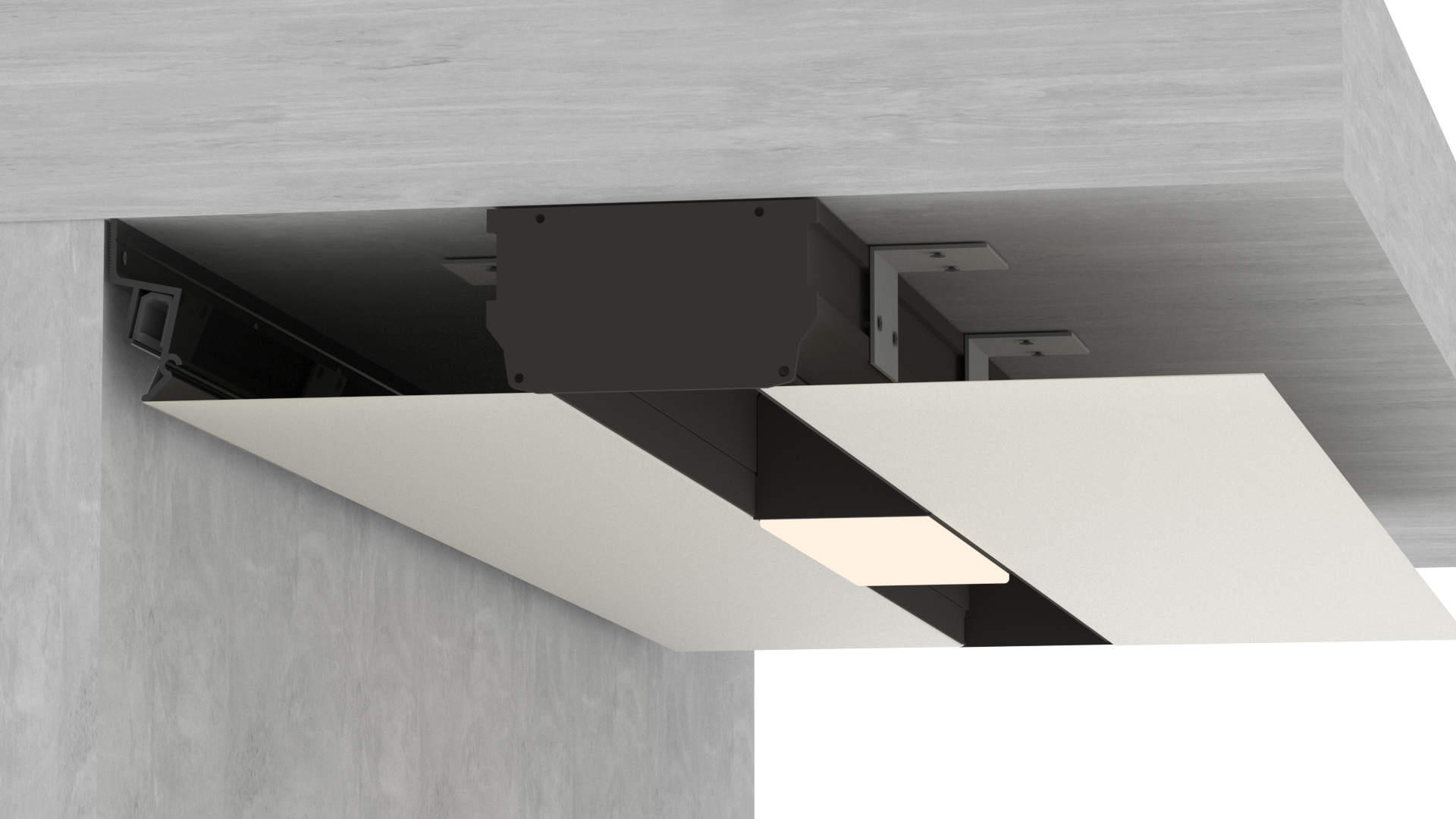

TE (Track Everywhere) profile is the best option for forming a linear track system in a stretch ceiling.
The profile is a multifunctional version of the linear track, which makes it possible to implement almost all design decisions.
360° (twist)
Drawing
TE-BASE
TE-BASE is a basic profile for forming a niche in a stretch ceiling, into which linear lights are mounted.
Drawing
Characteristics
Color: black, white
Material: aluminum
Length, m: 2.5
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
2 grooves for a bandage tape
2 connecting wire grooves
Installation
TE-BASE mounting:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 1 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
TE-BASE connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
TE-LINE 40
TE-LINE40 is a profile for creating lights of any length and power, in which it is possible to combine several light source options.
Drawing
Characteristics
Color: black, white
Material: aluminum
Length, m: 2.5
Constructive
a groove for LED strip installation
2 slots for locking
2 connecting wire grooves
Installation
TE-LINE 40 fastening:
Latching the profile due to the grooves at the top of the profile.
LED40 installation:
The light-scattering diffuser LED 40 is installed in the profile.
TE-LINE 40 connection:
Wire 1.8 mm.
Dismantling TE-LINE 40 light:
Easy removal of the lights from TE-BASE and movement along the base profile for the length of the lights.
