PolskiProfile L 90
Description

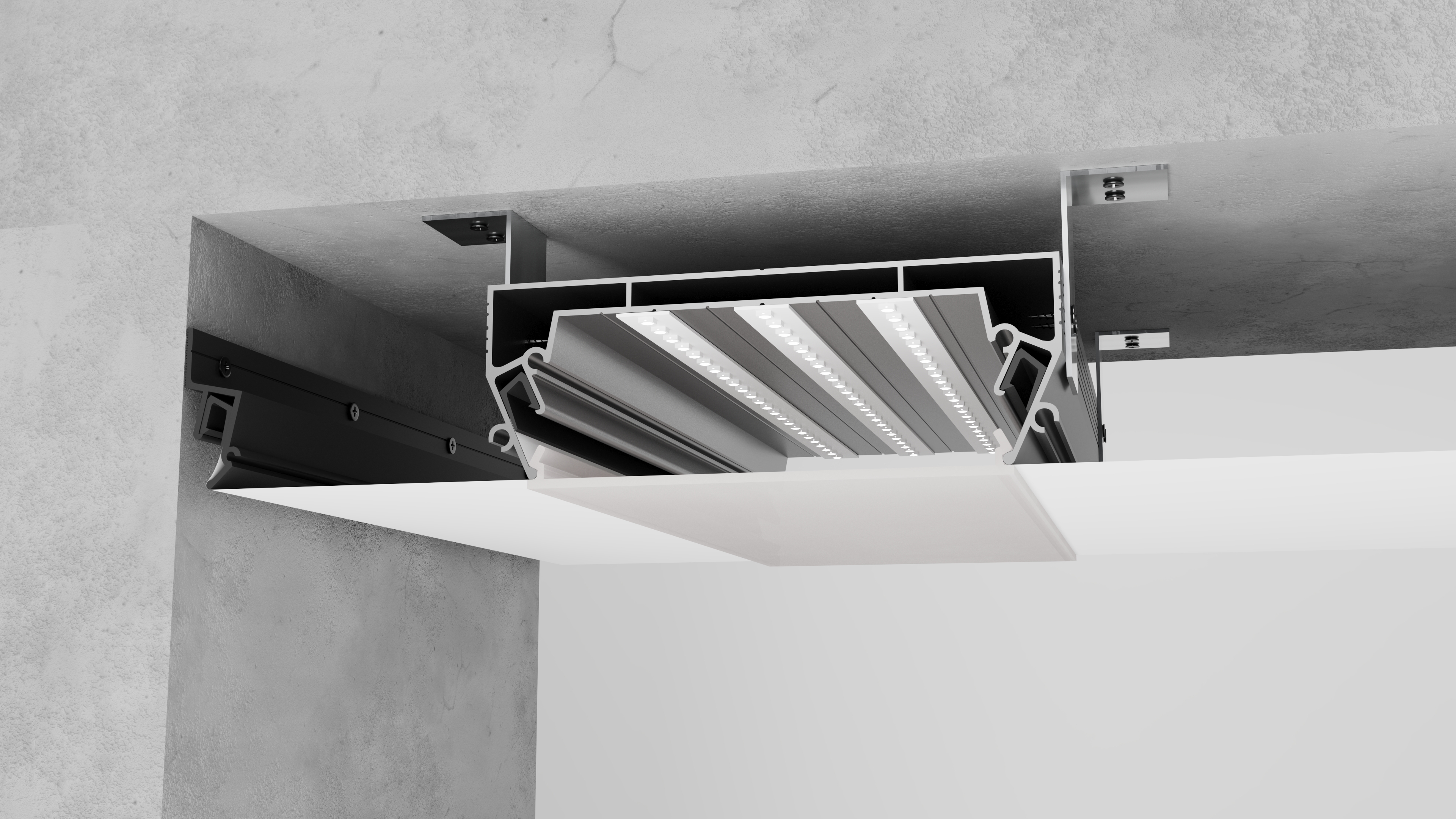

L 90 — unique light unpainted profile with a line width of 90 mm.
The light line provides a large luminous flux and is the widest light line in the world for stretch ceilings.
The profile uses a polycarbonate diffuser LED 90, which provides soft, uniform light diffusion and visual comfort.
The polycarbonate diffuser is mounted flush with the ceiling.
The design of the L 90 profile provides compatibility with the ALUGIPS L 90G profile, which allows for a clean and technologically correct transition from a stretch ceiling to a plasterboard ceiling walls.
360° (twist)

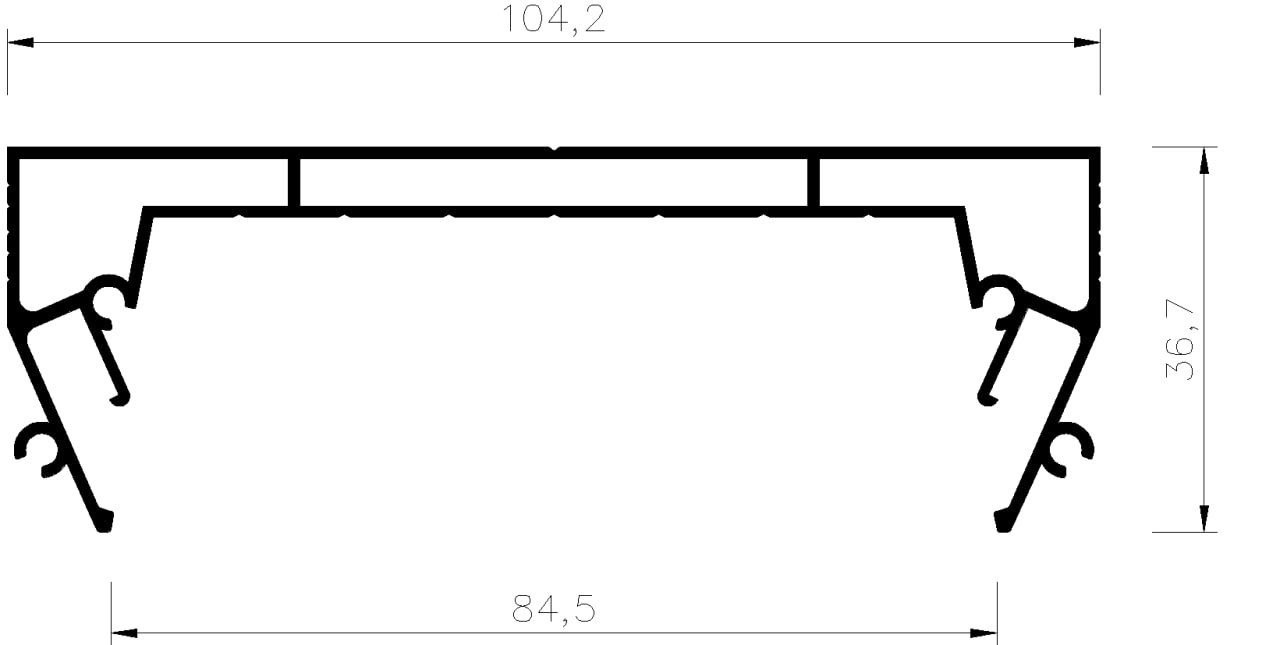

Drawing
Characteristics
Color: unpainted
Material: aluminum
Length, m: 2.0
Sheet attachment: harpoon
End caps: metal-aluminum, painted
Constructive
2 harpoon slots
1 LED strip mounting slot
4 wire connection slots
Installation
Fastening:
Dowel to the ceiling, self-tapping screw for metal to the profile through mounting angles. Fastening step up to 0.8 m.
Filling the canvas:
The canvas is filled with a standard mounting spatula.
LED strip:
It is closed with a polycarbonate diffuser LED 90, which is installed in the profile.
Joining:
3.0 mm wire.
Dismantling the canvas:
Possible without damage.
