PolskiProfile PL 40 (Painted Line 40)
Description

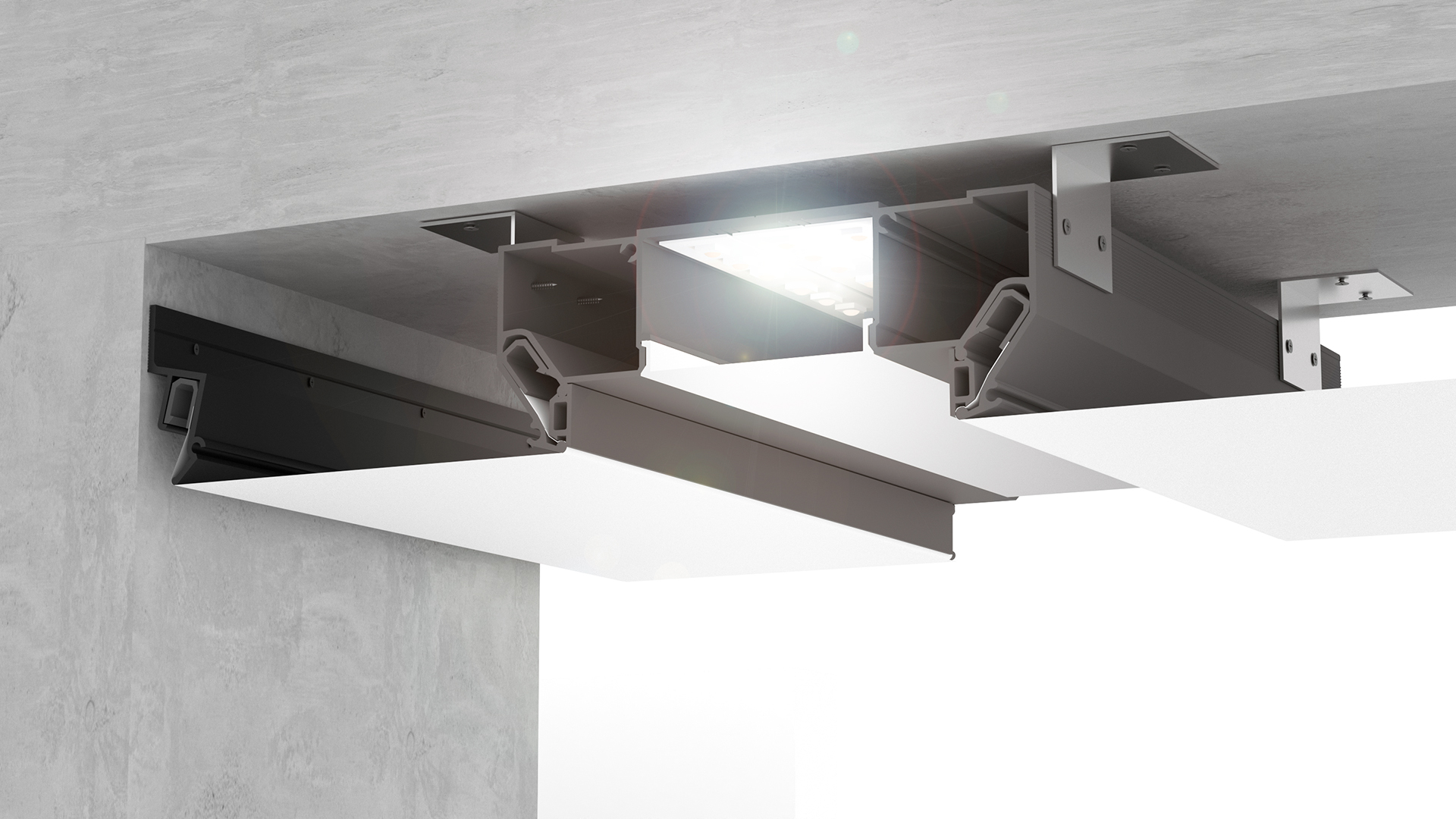

PL 40 is a unique light painted profile with a line width of 40 mm. The profile creates a wide, shallow niche in which the light line is located. The acrylic light diffuser is recessed 11 mm from the stretch ceiling, which is the height of the G7 insert tape, which can be used in both white and black colors, which makes it possible to create different interior solutions.
Black PL 40 is recommended for use with ALUTAT shadow solutions.
360° (twist)

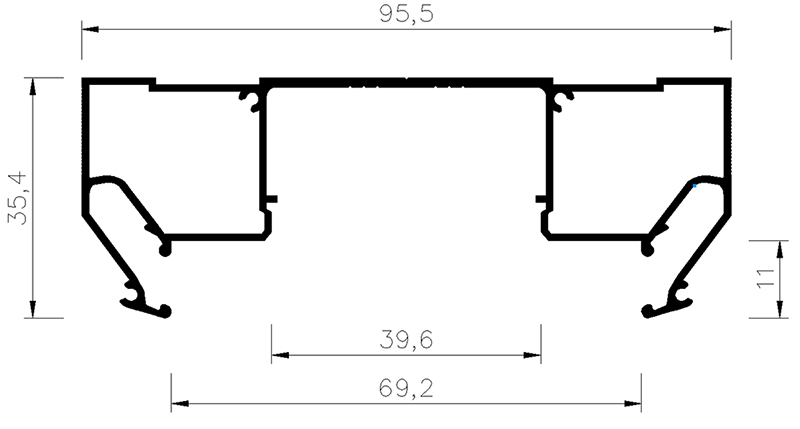

Drawing
Characteristics
Color: black, white
Material: aluminum
Length, m: black - 2.0/3.2; white - 3.2;
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
2 grooves for a bandage tape
a groove for LED strip installation
4 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.8 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed by a light-scattering diffuser LED 40, which is installed in the profile.
Connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
