PolskiProfile TL 40 Contour (Trend Line 40)
Description

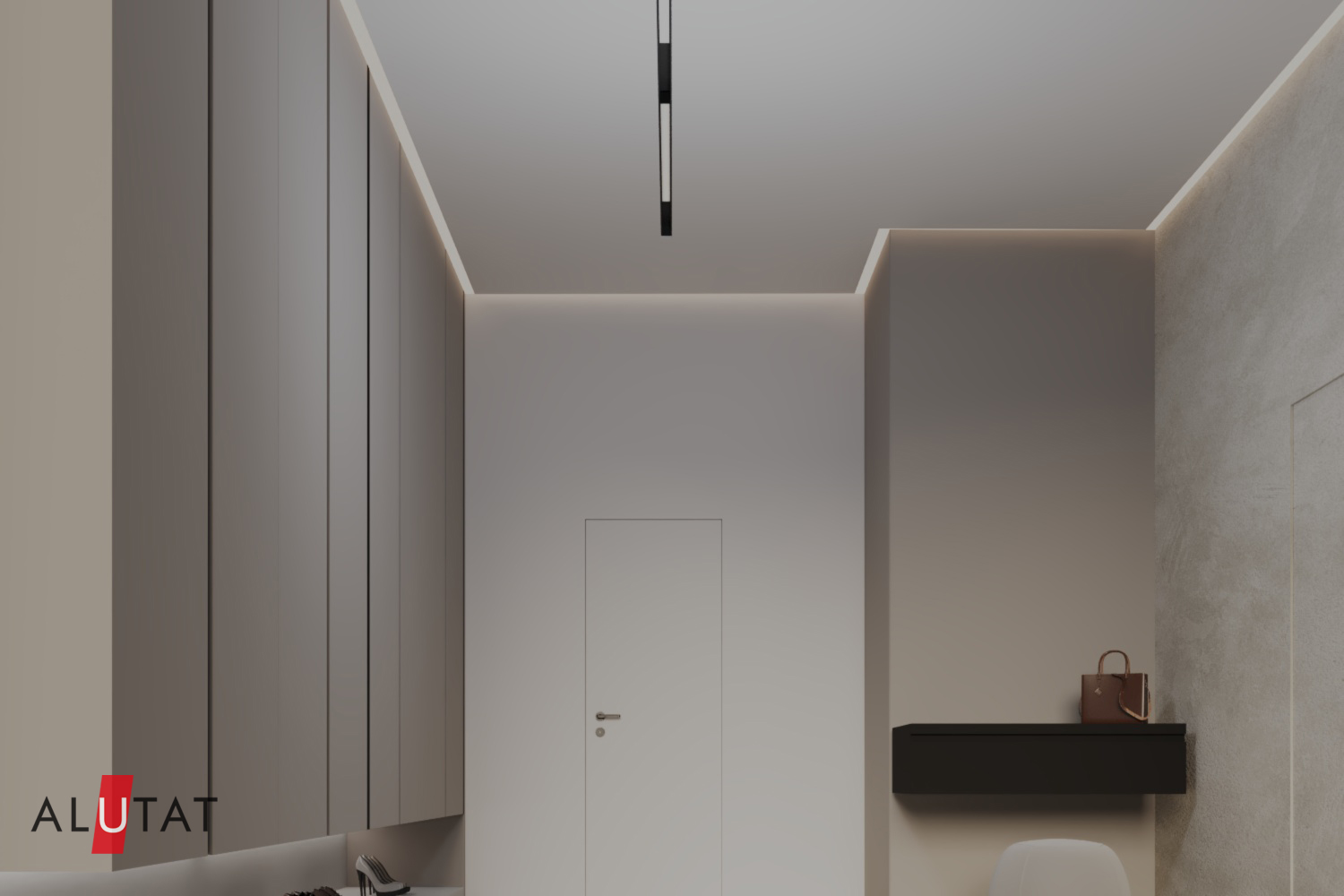

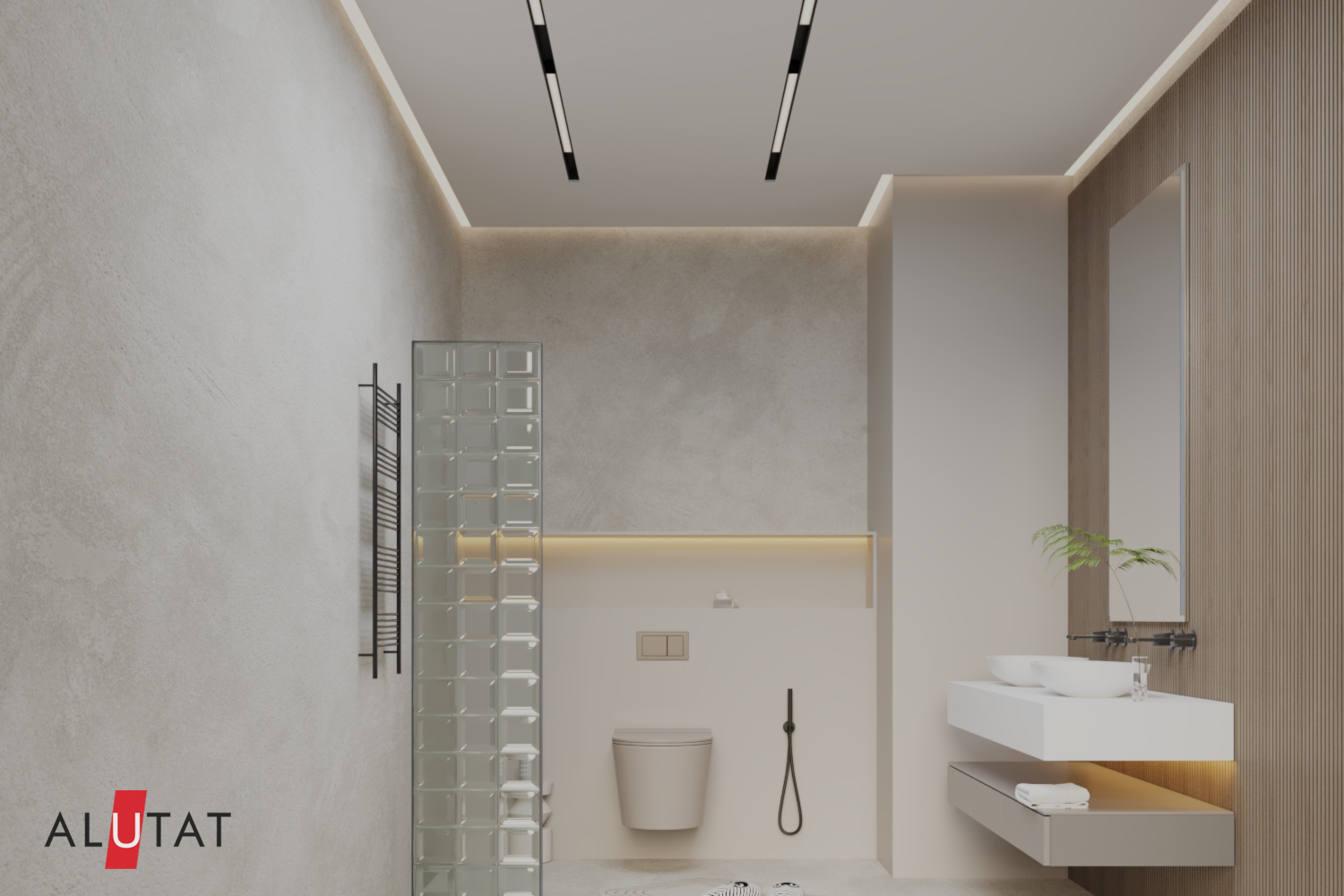

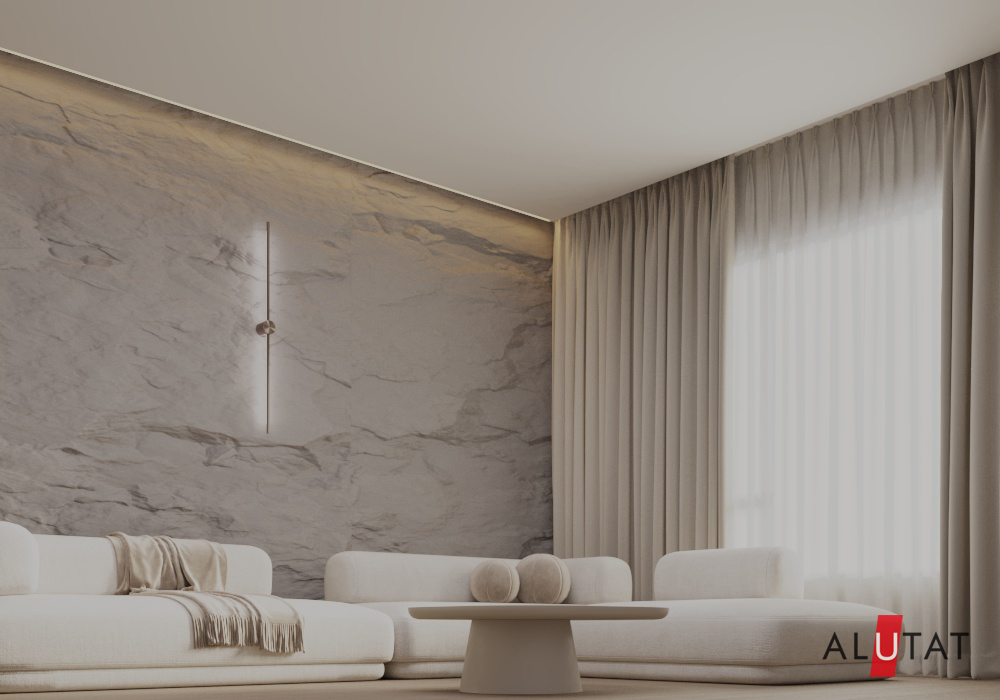

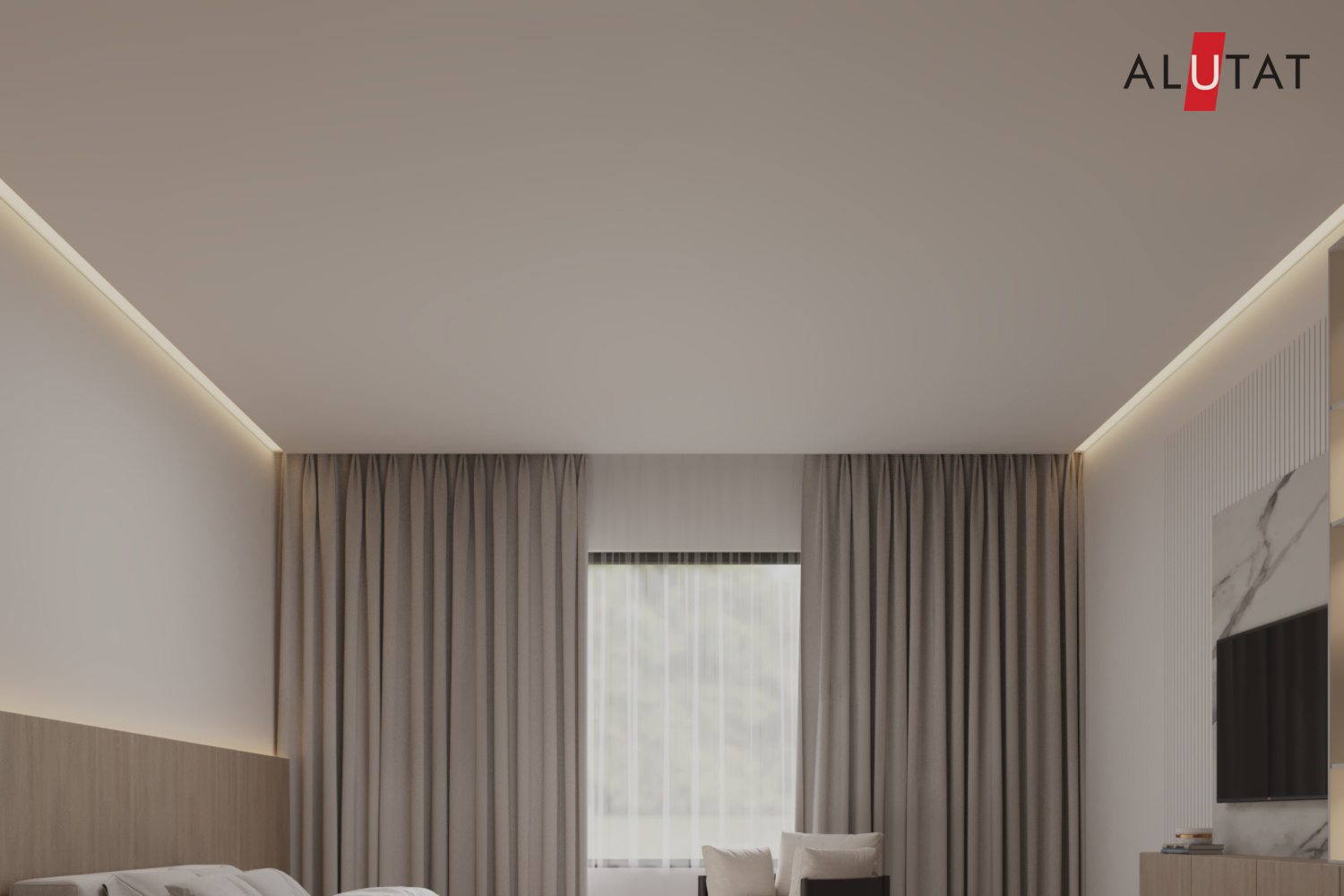

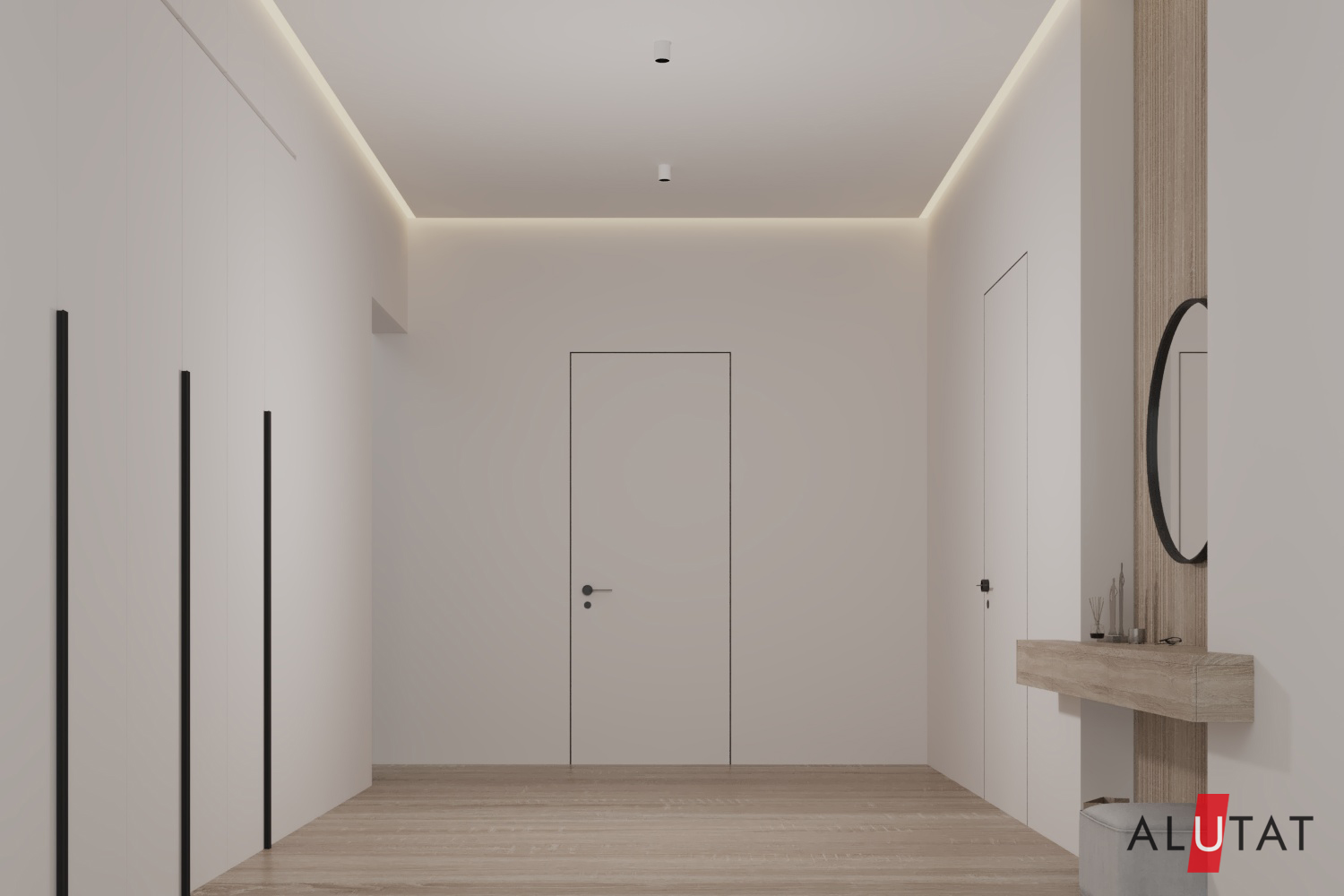

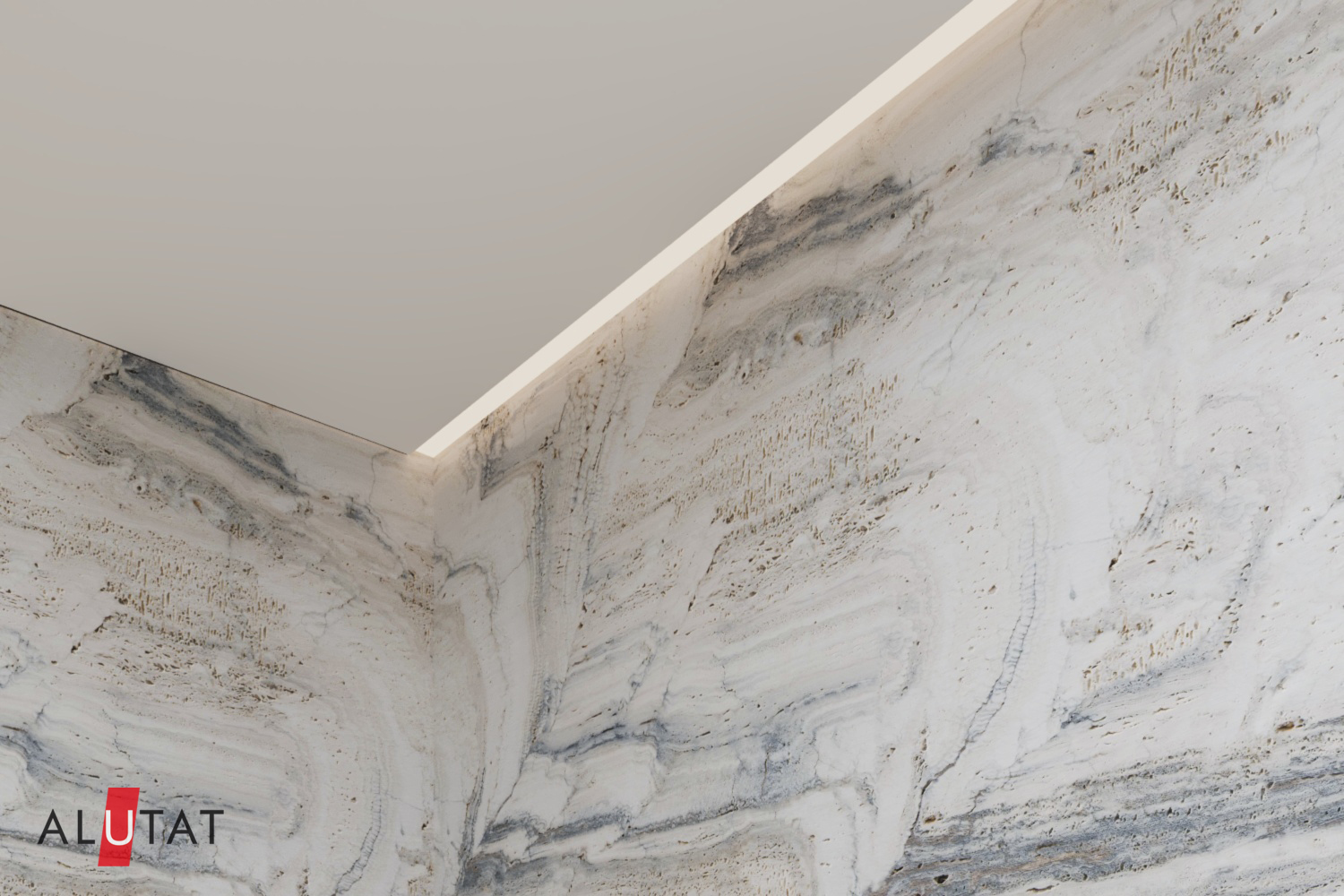

TL 40 Contour is a contour light line that creates the main lighting along the wall. Is a partner of TL 40 profile.
The acrylic light diffuser is recessed by 10 mm, which is the height of the G7 insert. The insert can be used in both white and black colors, which can form different interiors. It is recommended to use a black insert when composing with shadow solutions.
The distance from the light diffuser to the wall is 2 mm.
It is recommended to combine with the TL 40 profile to obtain the same light flow both around the perimeter and in the center of the room.
360° (twist)

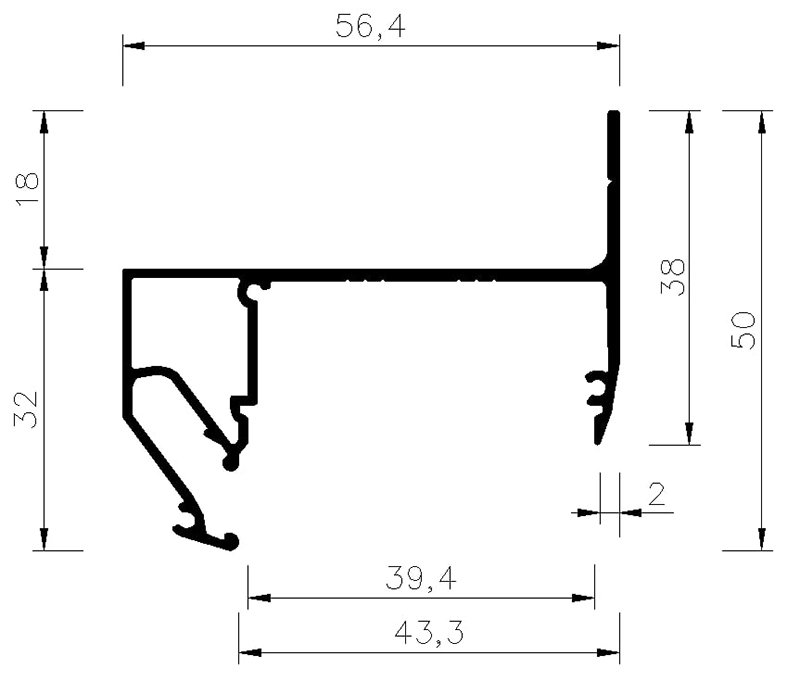

Drawing
Characteristics
Color: unpainted
Material: aluminum
Length, m: 2
Fastening the canvas: harpoon
Constructive
a groove for a harpoon
a groove for LED strip installation
3 connecting wire grooves
Installation
Fastening:
2 options
- fastening to the wall;

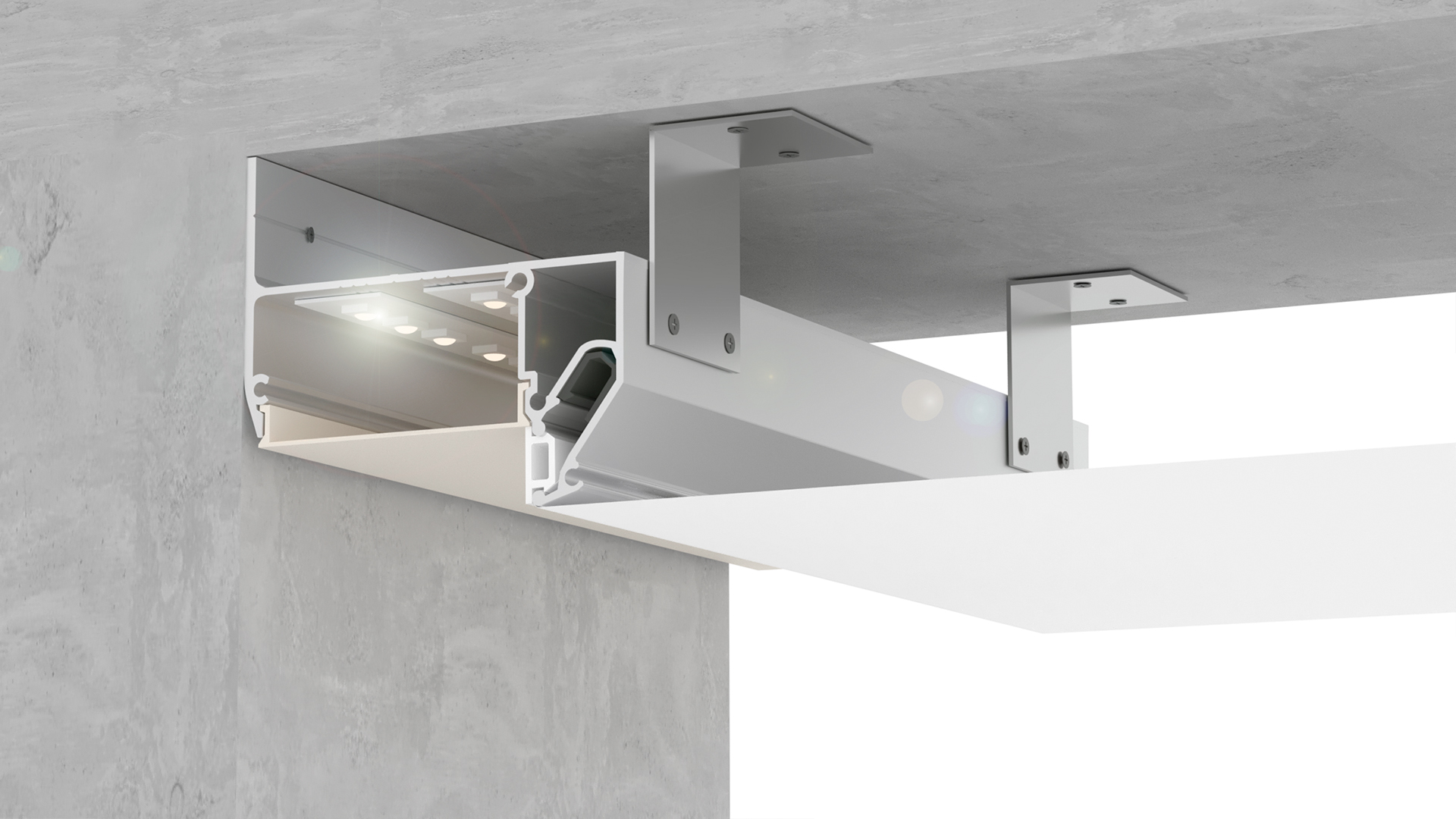

- a dowel to the ceiling and a self-tapping screw for metal through the mounting corners in a special box in the profile.
The fastening step is up to 0.18 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed by a light-scattering diffuser LED 40, which is installed in the profile.
Connection:
Wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
