Profile Gardina MAXI 2.0

Description

Gardina MAXI 2.0 is a modernized version of Gardina MAXI with two grooves for runners, which differs by equipment, functionality and increased height.

Gardina MAXI 2.0 offers wide curtain solutions with a decrease in the level of the main ceiling to the additional.

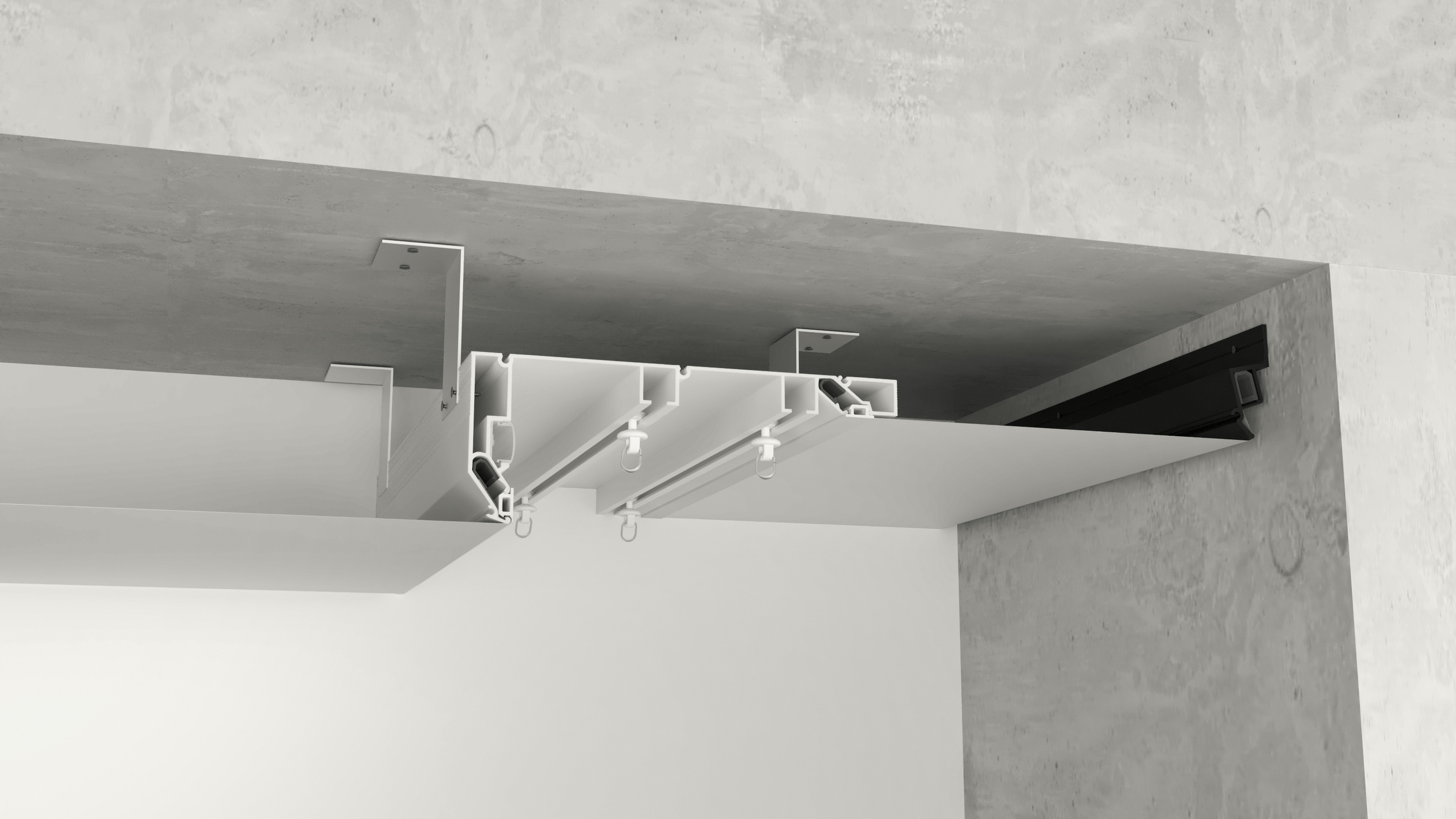

The profile is an L-like niche for curtains with a height of 50 mm, which forms a minimal lowering of stretch ceiling from ceiling of 67.7 mm.

The width of the curtain profile makes it possible to twist thick fabrics.

Gardina MAXI 2.0 is mounted both from wall to wall and with the formation of angles of 90 and 45 degrees.

360° (twist)

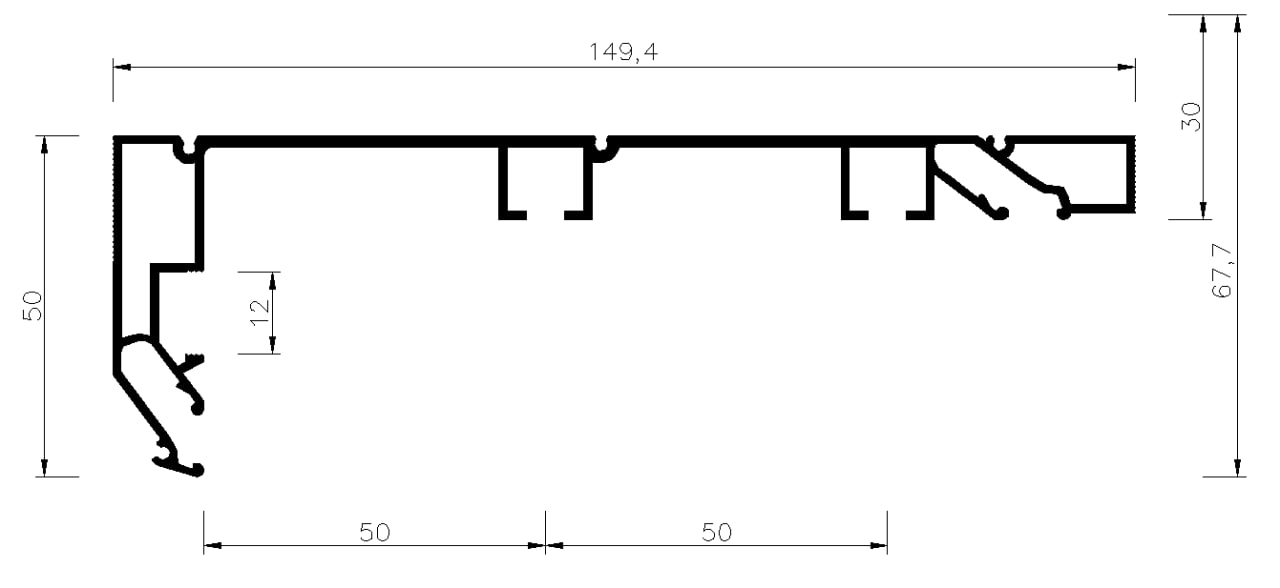

Drawing

Characteristics

Color: white, black

Material: aluminum

Length, m: 2.5/3.2/3.6

Fastening the canvas: harpoon

Constructive

2 grooves for a harpoon

a groove for LED strip installation

2 grooves for hooks

4 connecting wire grooves

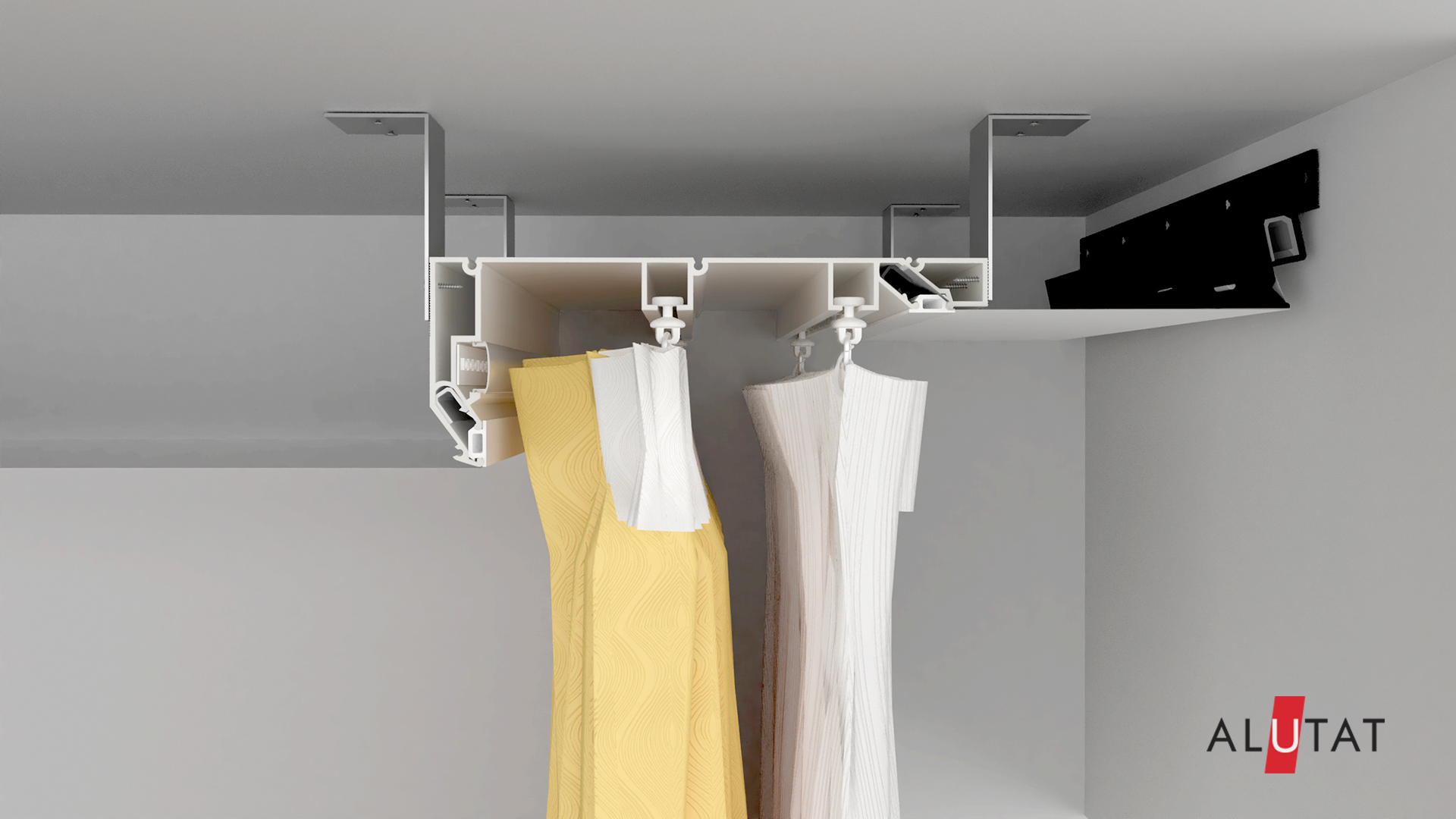

Installation

Fastening:

Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 0,8

Filling the canvas:

The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.

LED Strip Light:

It is closed with a light-scattering diffuser LED 12.

Connection:

Bandage tape 15 mm, wire 1.8 mm.

Dismantling the canvas:

Possible without damage.

Runners:

The set includes special runners Runner Small. The number is 13 pcs./r.m in one track..
