PolskiProfile Gardina 55
Description

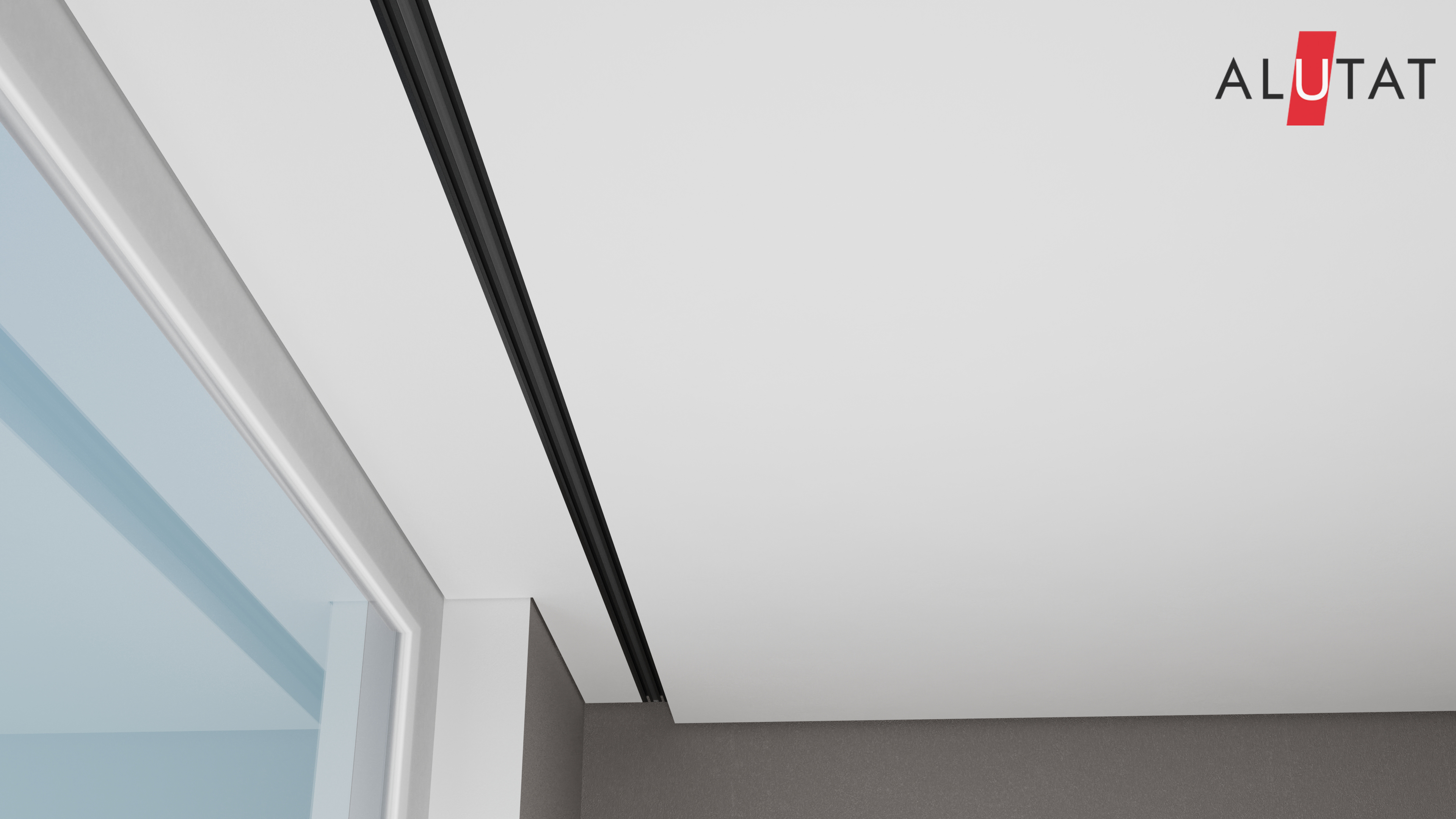

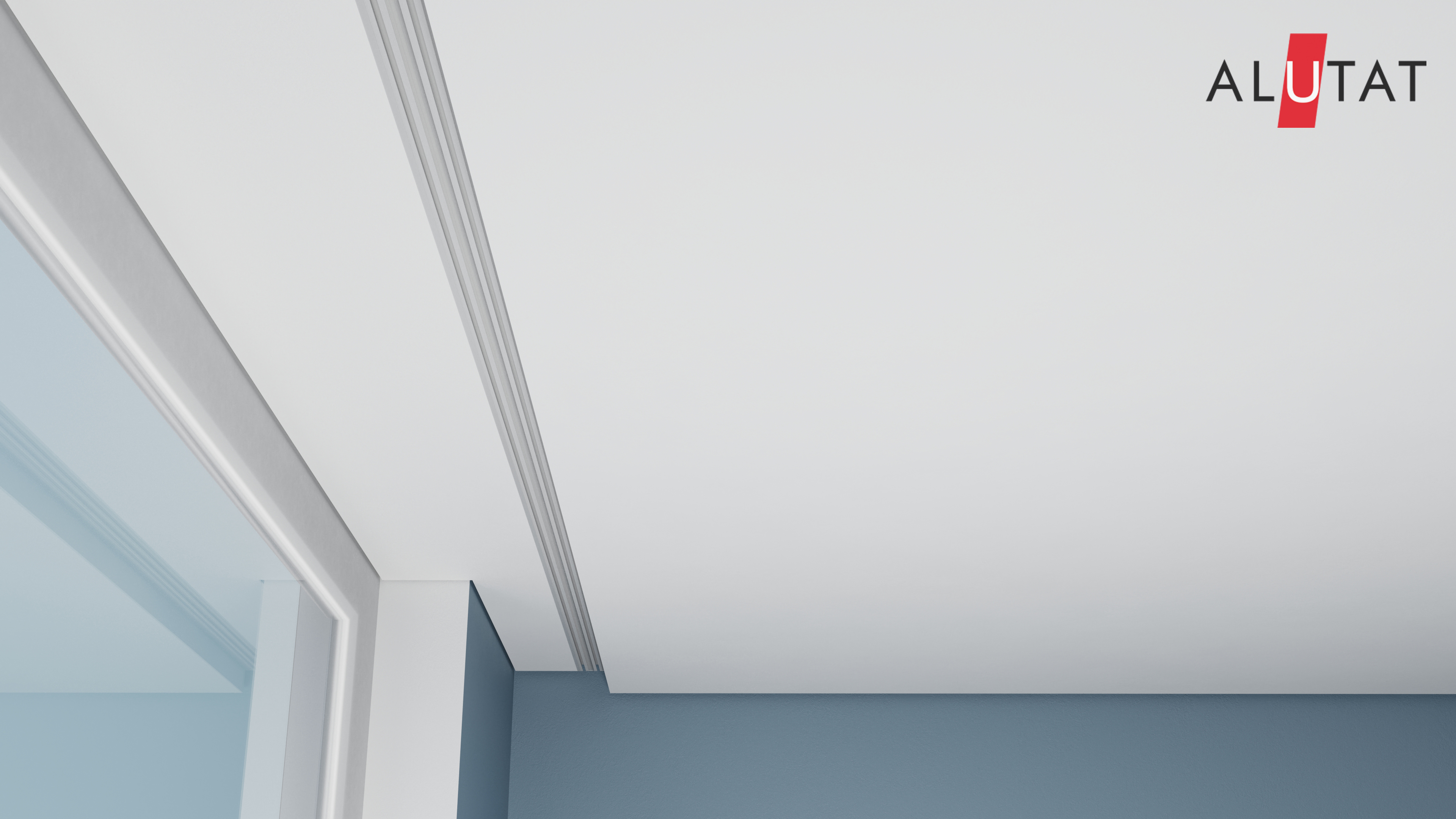

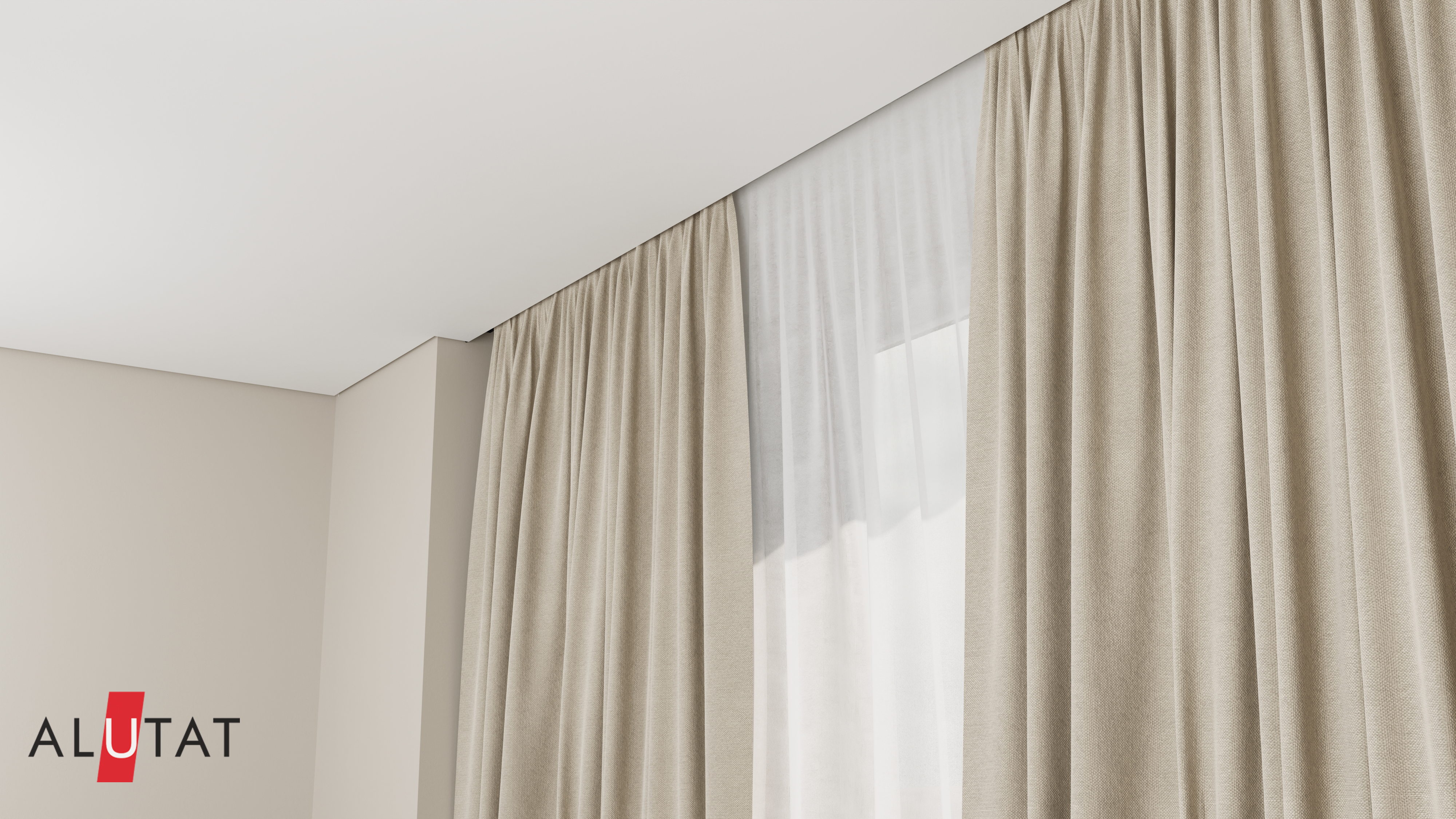

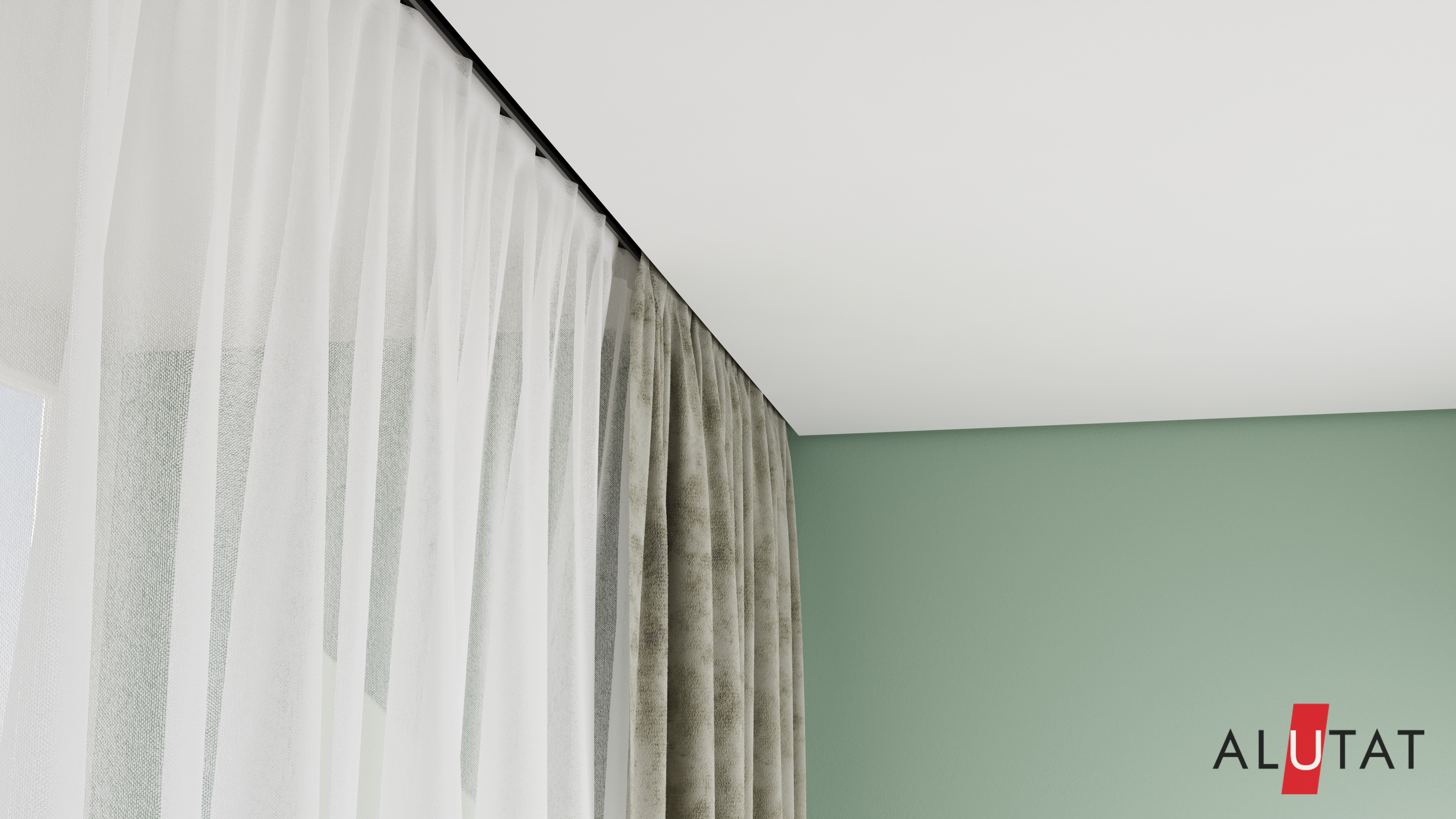

Gardina 55 profile is the best option for forming a niche for curtains with a decrease in the level of the main ceiling to the additional. The profile forms a niche of 5.5 cm in which there are grooves for runners.
Gardina 55 is mounted both from wall to wall and with the formation of angles of 90 and 45 degrees.
The set with the profile includes special high-speed runners Runner Big, which facilitates easy movement of the curtains.
360° (twist)

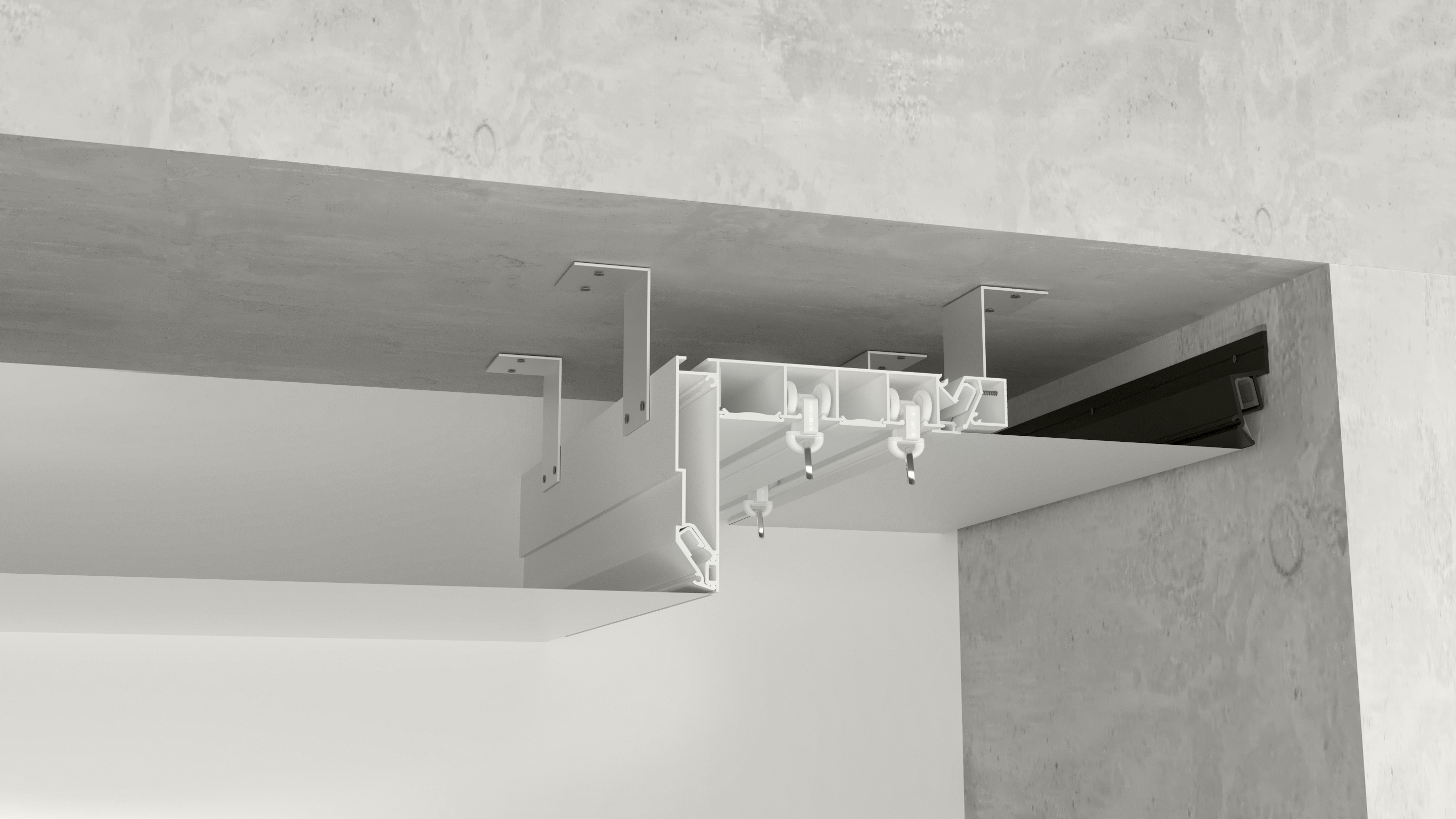

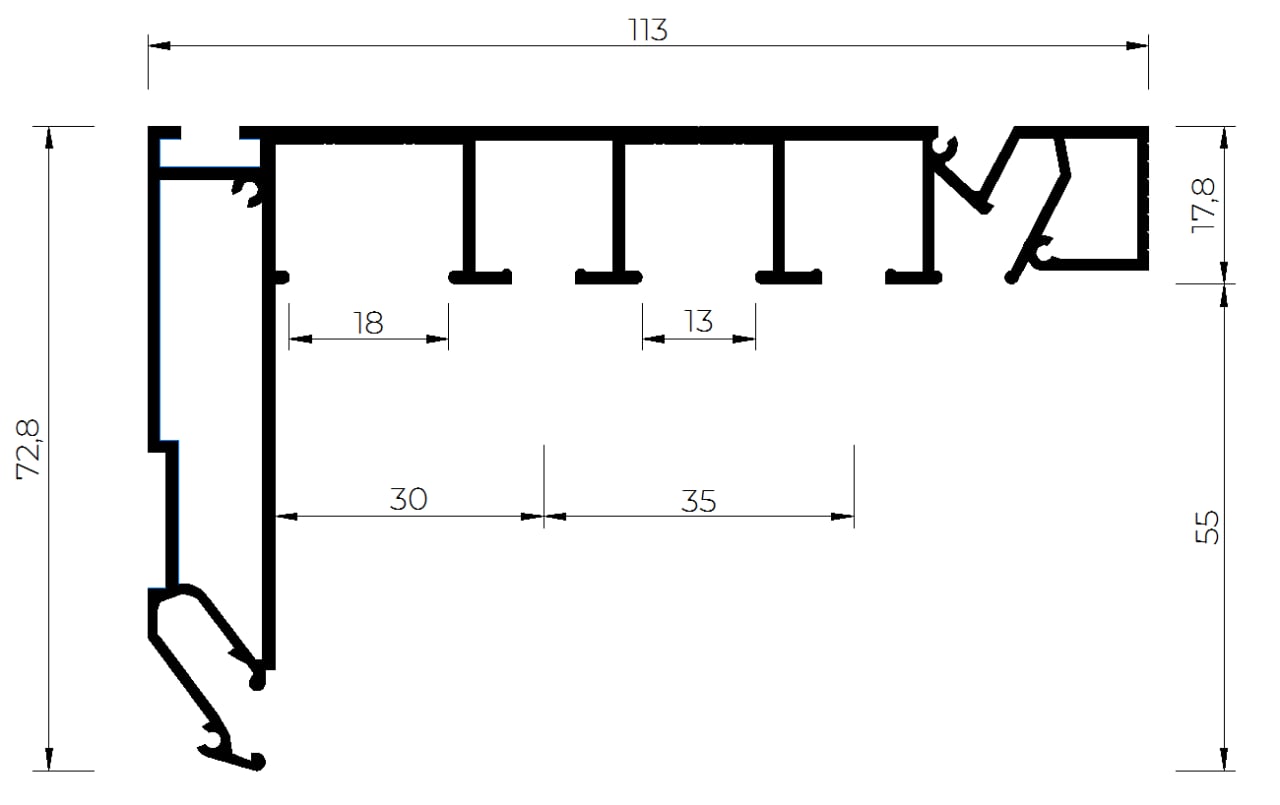

Drawing
Characteristics
Color: white, black
Material: aluminum
Length, m: 2.5/3.2
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
2 different grooves for LED strip installation
2 grooves for runners
a groove for a bandage tape
a groove for attaching a strip with screws
3 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 1 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed with light-scattering tapes S12 and S20.
Connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
Runners:
The set includes special runners Runner Big. The number is 13 pcs./p.m. in one track.
