PolskiProfile SK XL
Description

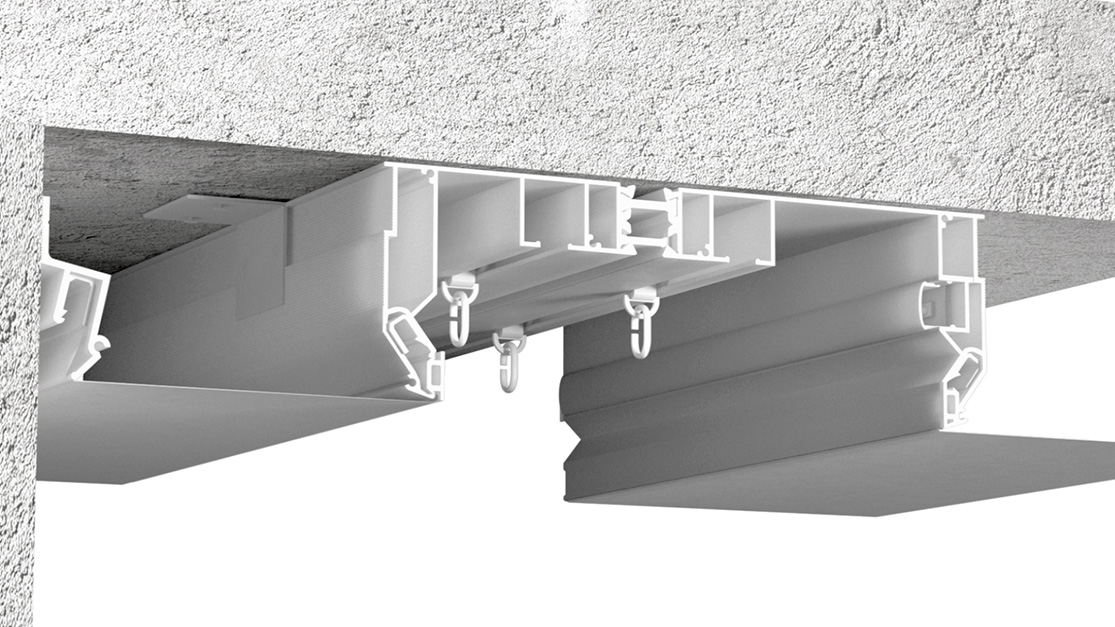

The SK XL profile is the best option for forming a niche for curtains in one horizontal plane, which forms a height of 5.5 cm.
The profile is the widest U-shaped niche for curtains, which makes it possible to install thick curtains from all types of fabrics. The SK XL is mounted both from wall to wall and with the formation of one or more breaks. It is also possible to install angles of 90 and 45 degrees.
The set with the profile includes special high-speed Runner Big runners, which facilitate easy movement of the curtains.
360° (twist)

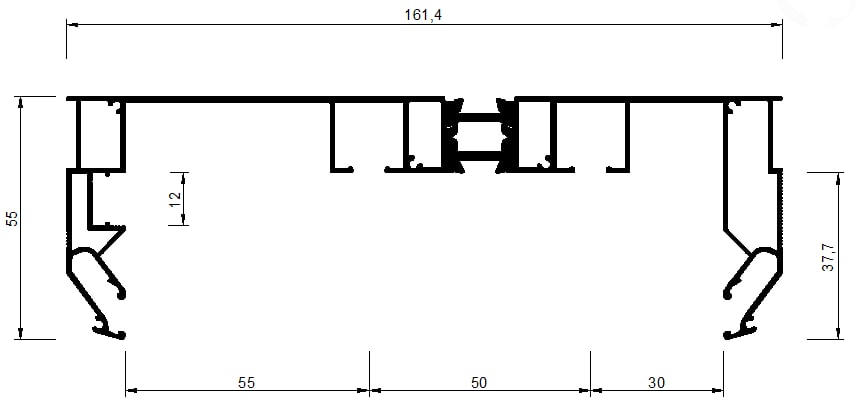

Drawing
Characteristics
Color: white, black
Material: aluminum
Length, m: 2.5/3.2
Fastening the canvas: harpoon
Constructive
2 grooves for a harpoon
a side groove for LED strip installation
2 grooves for runners
2 grooves for a bandage tape
6 connecting wire grooves
Installation
Fastening:
Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is no more than 1 m.
Filling the canvas:
The canvas is filled with a standard spatula. The grooves for the harpoon are closed with a G7 insert tape.
LED strip:
It is closed with a light-scattering diffuser LED 12.
Connection:
Bandage tape 15 mm, wire 1.8 mm.
Dismantling the canvas:
Possible without damage.
Runners:
The set includes special runners Runner Big. The number is 13 pcs./p.m. in one track.
