Profile LT

Description

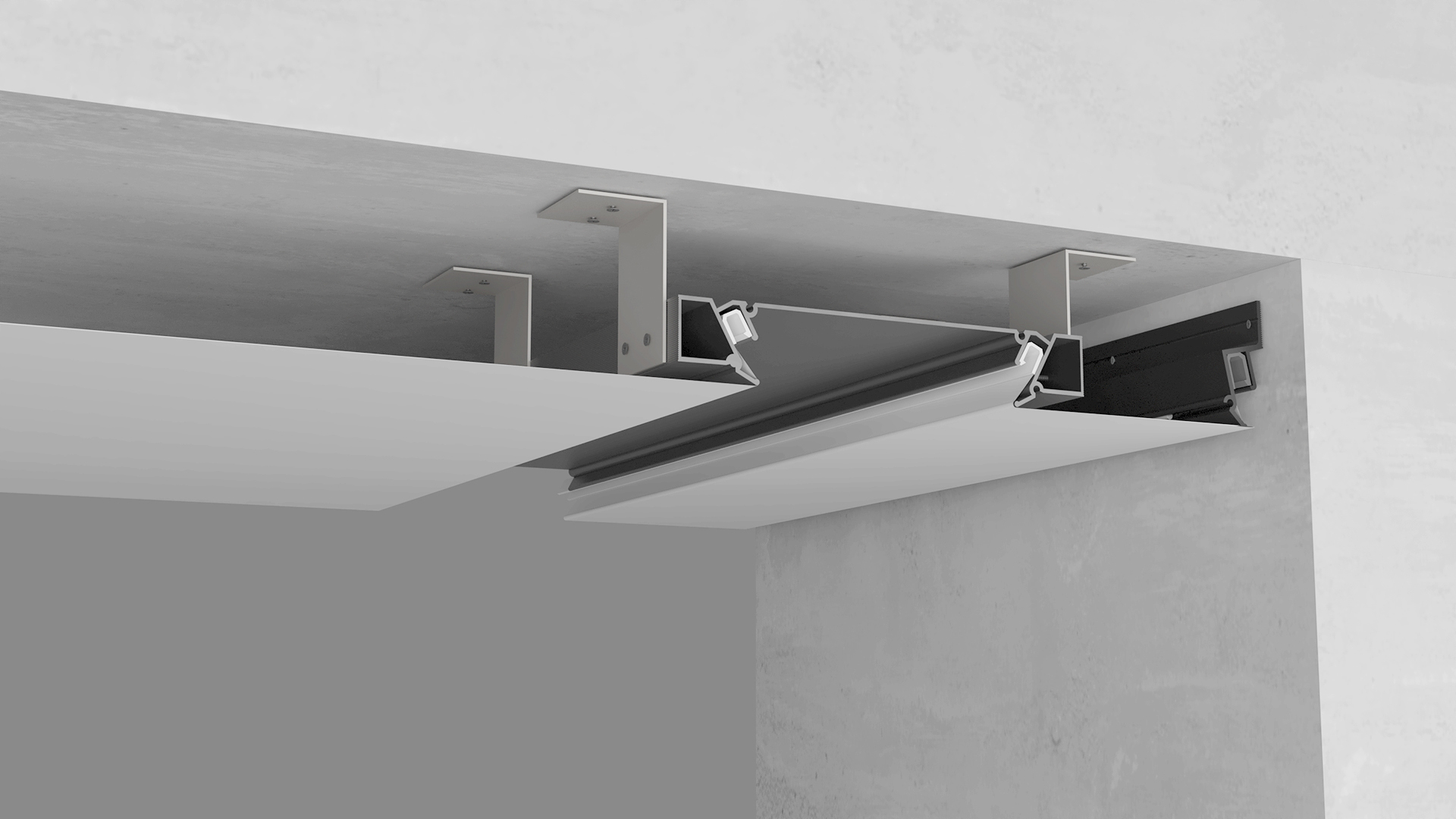

LT profile forms the base for the mounting of cornice and other profiles in a stretch ceiling. Using LT profile, the cornice is mounted on the same level as the stretch ceiling, with a minimum drop of the stretch ceiling of 19 mm.

This profile can be mounted both from wall to wall and with breaks.

LT profile can be used when it is necessary to minimize the ceiling lowering and, accordingly, maintain the ceiling height.

360° (twist)

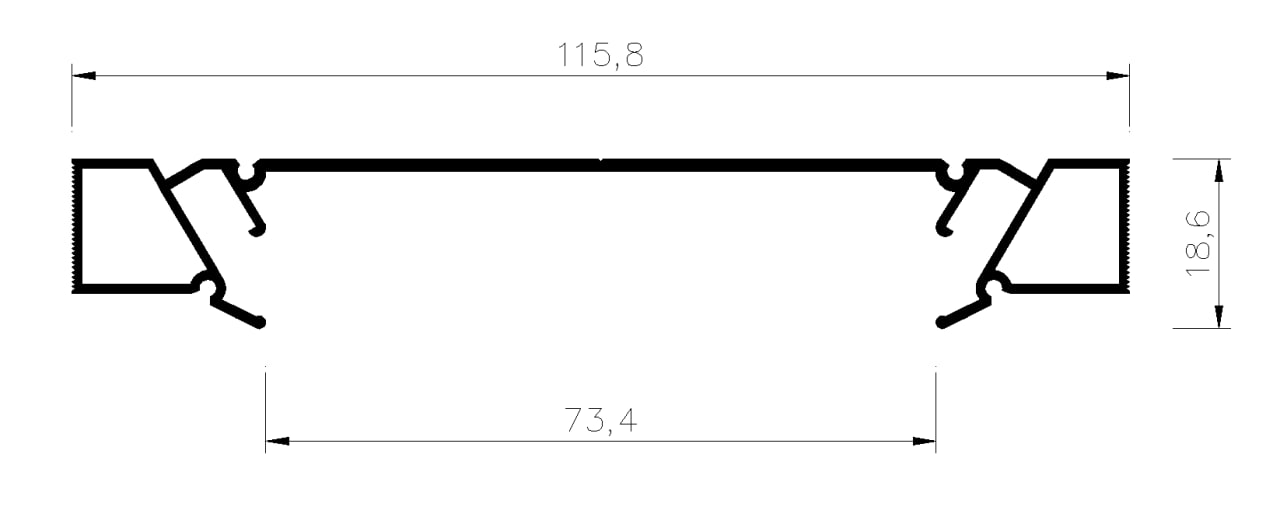

Drawing

Characteristics

Color: unpainted

Material: aluminum

Length, m: 2.5

Fastening the canvas: harpoon

Constructive

2 grooves for a harpoon

4 connecting wire grooves

Installation

Fastening:

Dowel to the ceiling, metal self-tapping screw to the profile through the mounting corners. The fastening step is up to 0.5

Filling the canvas:

The canvas is filled with a standard spatula. The grooves for the harpoon are visible.

Connection:

Bandage tape 15 mm, wire 1.8 mm.

Dismantling the canvas:

Possible without damage.
